Fronius Symo 10.0-3-M User Manual

29
EN
If no key is pressed for 2 minutes,
- The inverter switches from wherever it is on the menu level back to the 'NOW' display
mode (exception: 'Standby' Setup menu entry),
- the display backlighting goes out.
- the amount of energy currently being fed in is displayed.
Setting entries on
the Setup menu,
general

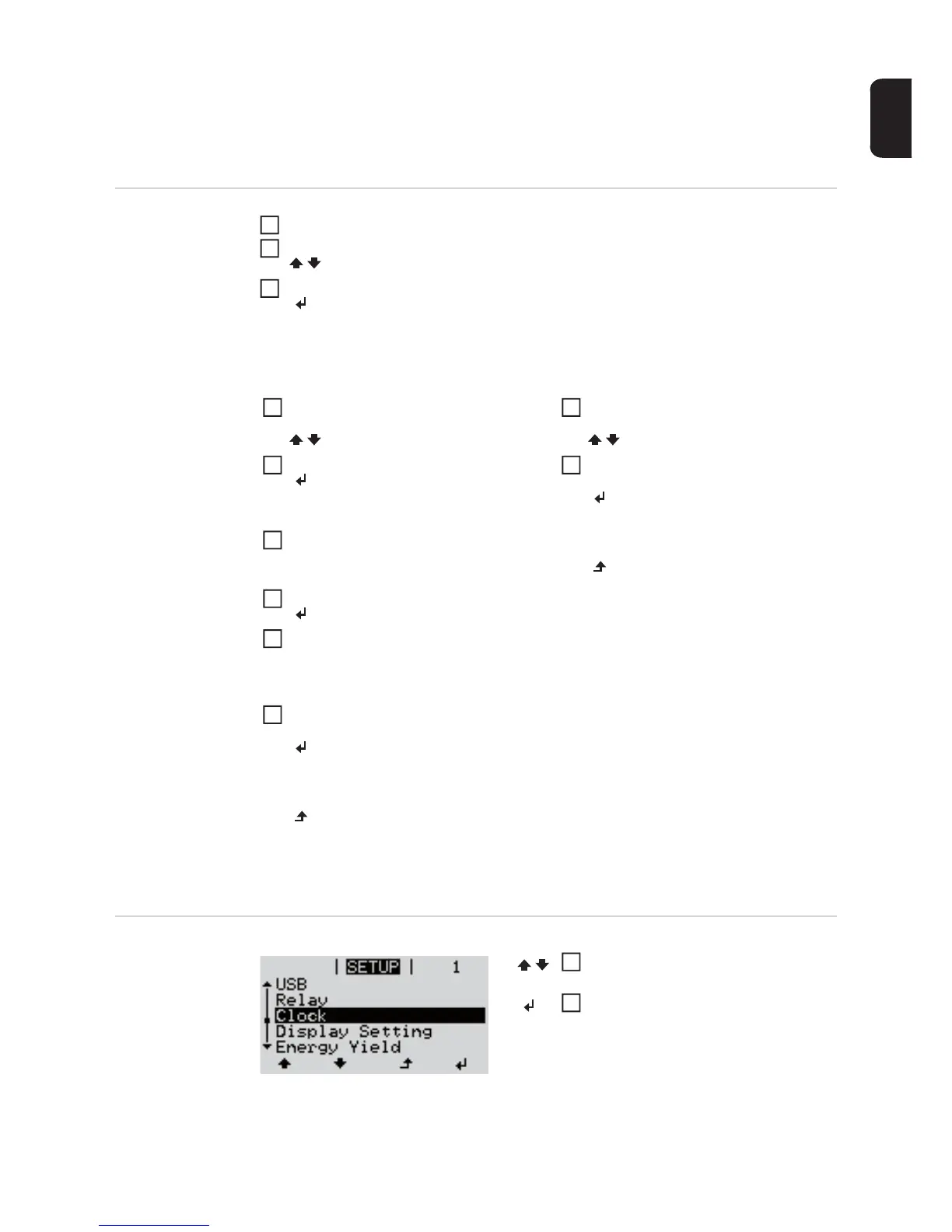

Entering the SETUP menu item
Use the 'Up' or 'Down' keys to select the desired menu item
Press 'Enter'
Application ex-
ample: Setting
the time
The first digit of a value to be set flash-
es:
The available settings are displayed:
Use the 'Up' or 'Down' keys to select
a value for the first digit
Press 'Enter'
The second digit of the value flashes.
Repeat steps 4 and 5 until ...
the whole value to be set flashes.
Use the 'Up' or 'Down' buttons to se-
lect the desired setting
Press the 'Enter' key to save and ap-
ply the setting.
To discard the setting, press the 'Esc'
key.
Press 'Enter'
Repeat steps 4 - 6 as required for
units or other values that are to be set
until the appropriate unit or the value
flashes.
Press the 'Enter' key to save and ap-
ply the changes.
To discard the changes, press the
'Esc' key.
The currently selected menu item is dis-
played.
The currently selected menu item is dis-
played.
1
2
3
4
5
6
4
5
7
8
9
Select 'Time / Date' from the Setup
menu
Press the 'Enter' key
1
2

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
