Fronius Symo 10.0-3-M User Manual

30

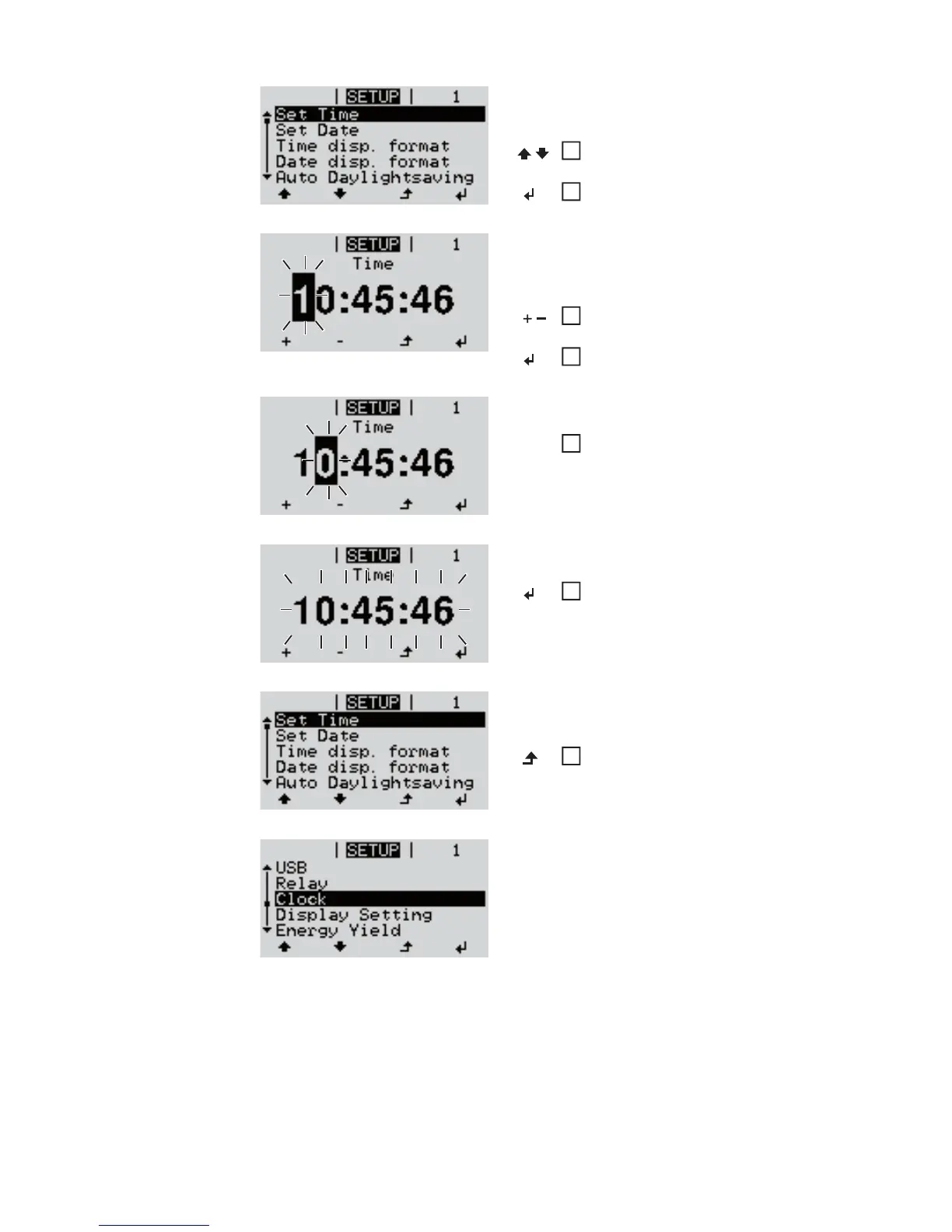

An overview of the values that can be
changed is displayed.
Use the 'Up' or 'Down' keys to select
'Set time'
Press the 'Enter' key
The current time appears.
(HH:MM:SS, 24-hour clock),
the 'tens' digit for the hour will flash.
Use the 'Up' and 'Down' keys to select
a value for the 'tens' digit for the hour
Press the 'Enter' key
The 'units' digit for the hour will flash.
Repeat steps 5 and 6 for the 'units'
digit for the hour, for the minutes and
seconds until...
the set time starts flashing.
Press the 'Enter' key
The time is applied and the overview of
values that can be changed is displayed.
Press the 'Esc' key
The 'Time / Date' item on the Setup menu
appears.
3
4
5
6
7
8
4

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
