93
EN-US

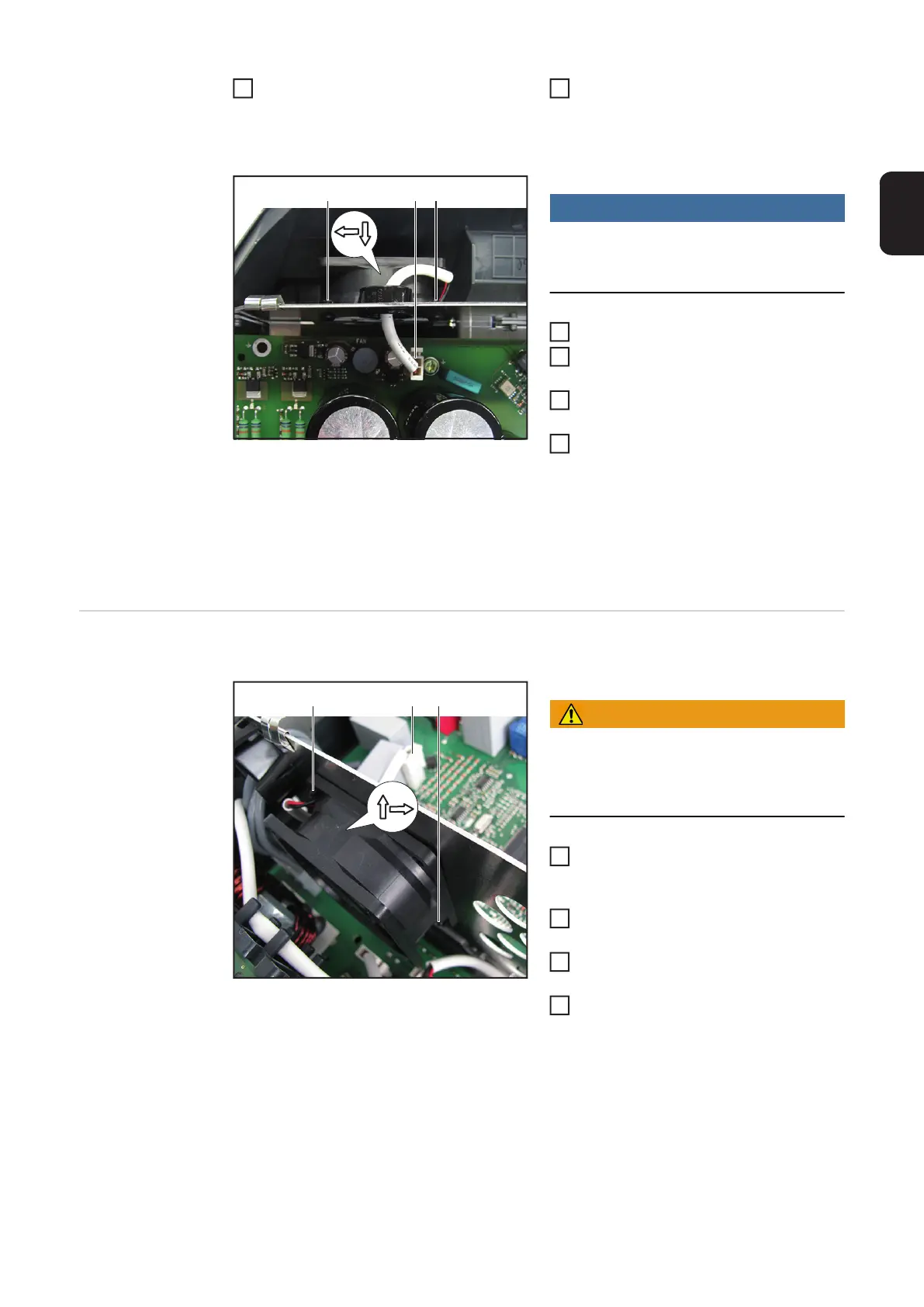

Use a slotted screwdriver to undo the
expanding rivets (2)
Remove the internal fan
Inserting the Internal Fan:
NOTE!
Ensure the air is flowing into the device!
Insert the internal fan
Use a slotted screwdriver to press in
the expanding rivets (2)
Thread in the fan cable (1) and connect
to SymoPS
Close the inverter and place it in the
wall bracket (see "Opening and Clo-
sing the Device")
After switching on the inverter, carry out a
fan test via the display (see Operating Inst-
ructions)
Replacing the 8k2
Internal Fan
Removing the Internal Fan:
WARNING!
Follow the safety rules (see the begin-
ning of the "Safety" section)
Take the inverter out of the wall bra-
cket and open it (see "Opening and
Closing the Device")
Disconnect and pull out the fan cable
(1) from the SymoPS
Use a slotted screwdriver to undo the
expanding rivets (2)
Remove the internal fan
Inserting the Internal Fan:
3 4
(1) (2)(2)
1
2
3
4
(1)
(2)(2)
1
2
3
4

Table of Contents

Other manuals for Fronius Symo 6.0-3-M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fronius Symo 6.0-3-M and is the answer not in the manual?

Fronius Symo 6.0-3-M Specifications

General IconGeneral
AC Nominal Output6.0 kW
Max. Input Voltage1000 V
MPP Voltage Range200 - 800 V
Number of MPP Trackers2
Protection RatingIP66
Efficiency98.1%
Max. Apparent AC Power6.0 kVA
Frequency50 / 60 Hz
THD< 3%
Protection ClassI
DC ConnectionMC4
Operating Temperature Range-25°C to +60°C
DC Input Voltage Range200-1000 V
AC ConnectionScrew terminals
CoolingForced air cooling
