Fronius Symo 6.0-3-M Service Manual & Spare Parts List

98

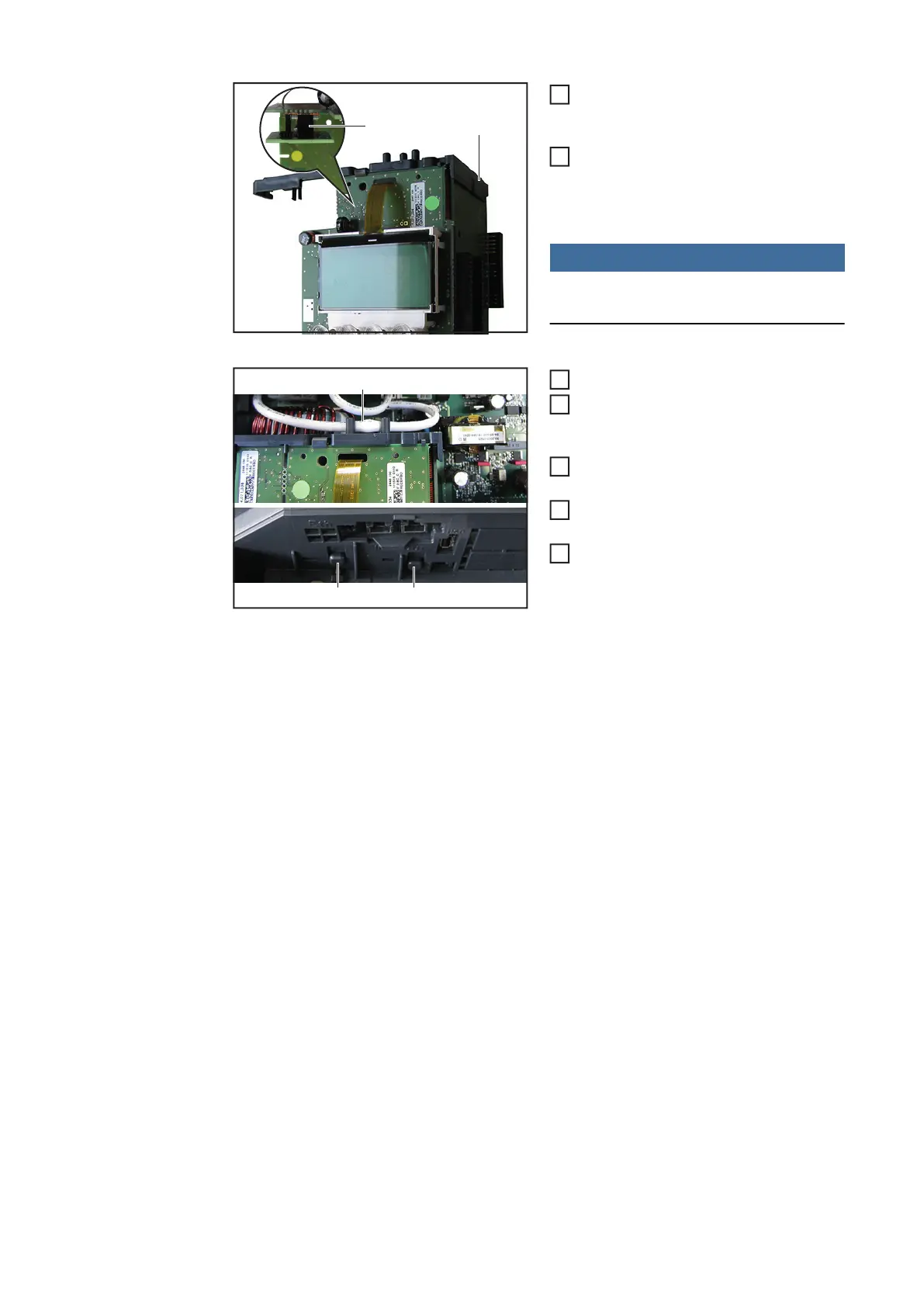

Insert the snap-off PC board (4) on the
inner side of the new Recerbo after dis-
mantling it
Mount the Recerbo holder (3) on the
new Recerbo
- thread the wire up
- press down
NOTE!
All guide pins and bolts must be snap-
ped into place
Insert the new Recerbo assembly
The locks (2) on the Recerbo holder
must be snapped completely into place
in the housing frame
Insert the external fan cable in the cab-
le guide (1)
Reconnect all connections to the
Recerbo
Insert the Datamanager card, close the
inverter and insert into the wall bracket
(see "Replacing the Datamanager
Card" and "Opening and Closing De-
vice" sections)
(4) (3)
2
3
(1)
(2) (2)
4
5
6
7
8

Fronius Symo 6.0-3-M Specifications

General

AC Nominal Output	6.0 kW
Max. Input Voltage	1000 V
MPP Voltage Range	200 - 800 V
Number of MPP Trackers	2
Protection Rating	IP66
Efficiency	98.1%
Max. Apparent AC Power	6.0 kVA
Frequency	50 / 60 Hz
THD	< 3%
Protection Class	I
DC Connection	MC4
Operating Temperature Range	-25°C to +60°C
DC Input Voltage Range	200-1000 V
AC Connection	Screw terminals
Cooling	Forced air cooling
