Fronius Symo 8.2-3-M Service Manual & Spare Parts List

100

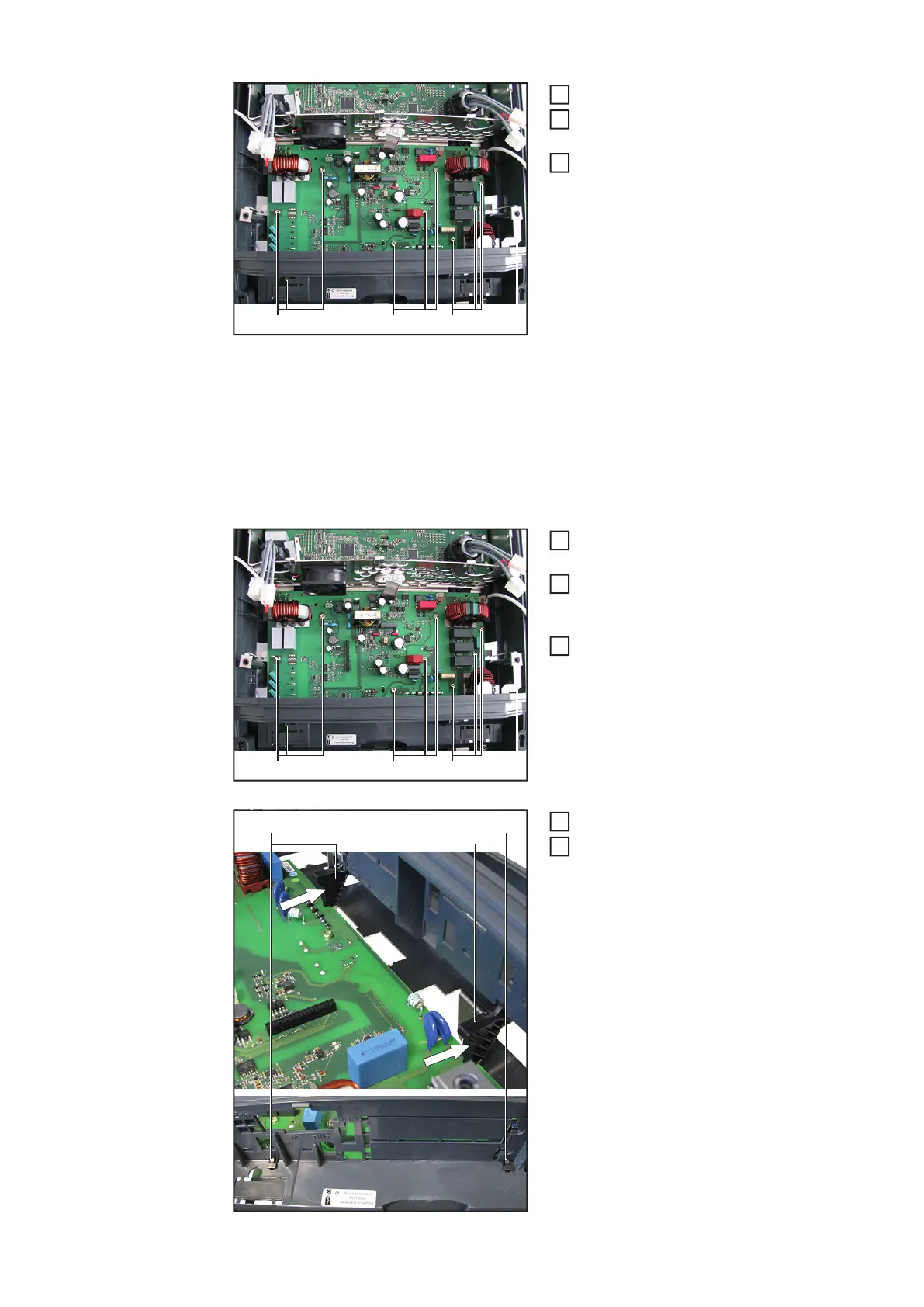

Undo the nine 4x9 TX20 screws (4)
Undo the ground connection (5) and
detach
Pull out and remove the SymoFIL
Installing SymoFIL:
Thread in the wire and position the new
SymoFIL
Mount the SymoFIL with nine 4x9
TX20 screws (4)
[2 Nm]
Insert the ground connection (5) and
ensure it is correctly positioned
Insert the PC board holder (3)
The PC board holder must snap com-
pletely into place in the Datcom area
(3)
(4)(4)(4) (5)
5
6
7
(4)(4)(4) (5)
1
2
3
(3)(3)
4
5

Fronius Symo 8.2-3-M Specifications

General

AC nominal output	8.2 kW
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP65
Frequency	50 / 60 Hz
THD	< 3%
Power factor (cos φac,r)	0.85 - 1 ind./cap.
Efficiency	98.1%
Operating Temperature Range	-25°C to +60°C
Max. apparent AC power	8200 VA
AC nominal voltage	3 x 230 / 400 V
