Fronius Symo 8.2-3-M Service Manual & Spare Parts List

94
NOTE!
Ensure the air is flowing into the device!

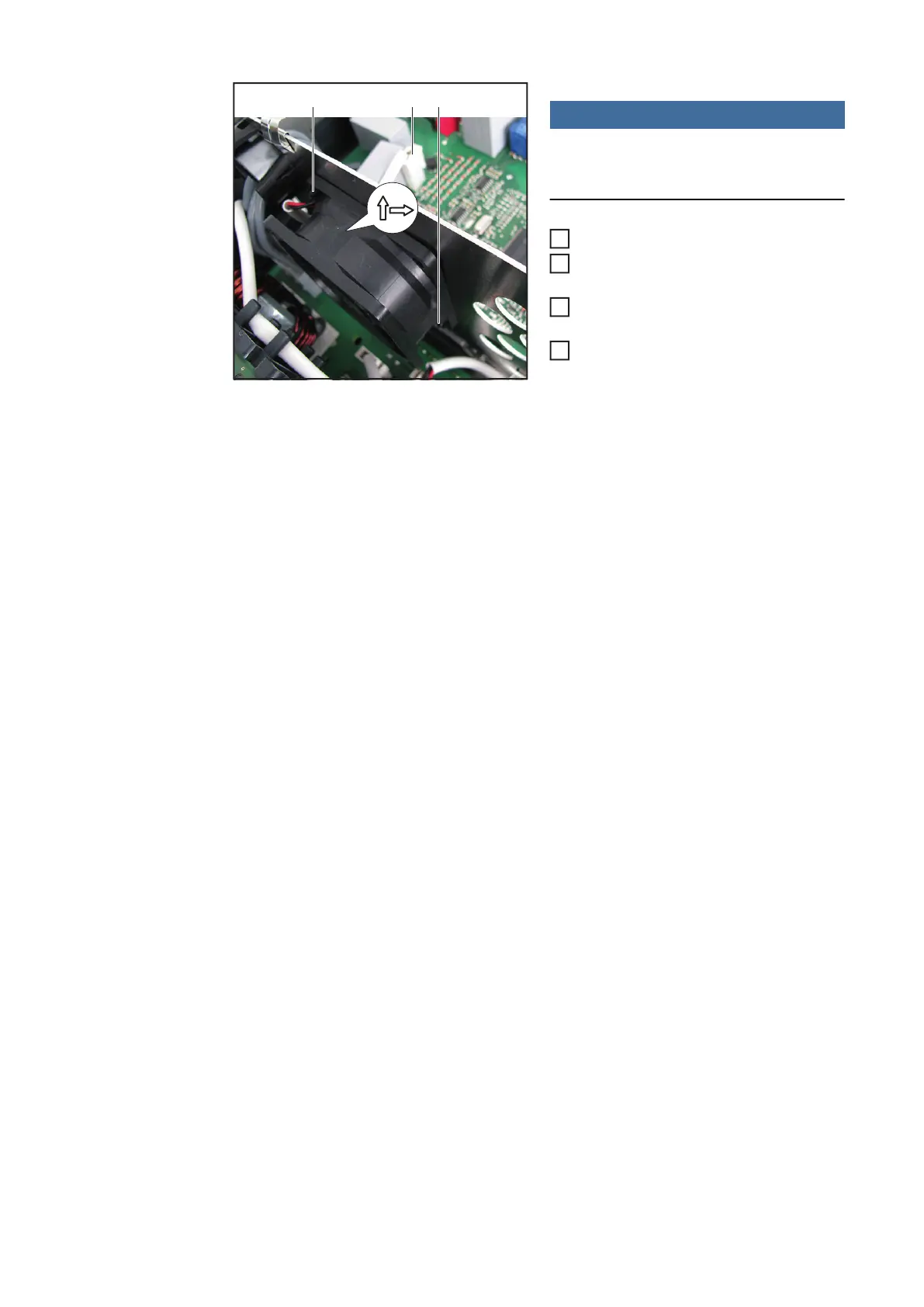

Insert the internal fan
Use a slotted screwdriver to press in
the expanding rivets (2)
Thread in the fan cable (1) and connect
to SymoPS
Close the inverter and place it in the
wall bracket (see "Opening and Clo-
sing the Device")
After switching on the inverter, carry out a
fan test via the display (see Operating Inst-
ructions)
(1)
(2)(2)
1
2
3
4

Fronius Symo 8.2-3-M Specifications

General

AC nominal output	8.2 kW
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Number of MPPT	2
Protection class	IP65
Frequency	50 / 60 Hz
THD	< 3%
Power factor (cos φac,r)	0.85 - 1 ind./cap.
Efficiency	98.1%
Operating Temperature Range	-25°C to +60°C
Max. apparent AC power	8200 VA
AC nominal voltage	3 x 230 / 400 V
