Fronius Symo - Page 25

25
EN
7
8

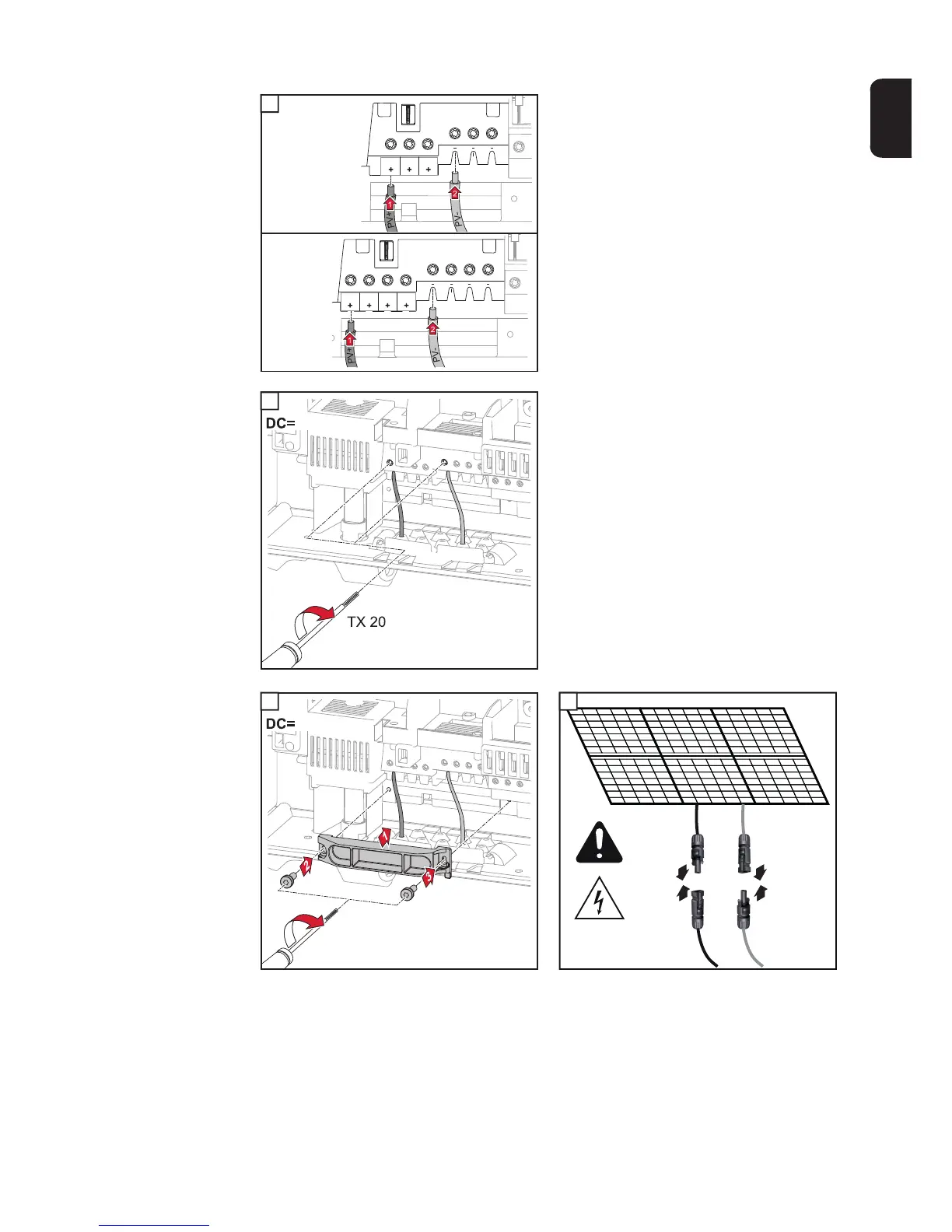

Note! Observe the torque values marked
on the side underneath the terminals.
9 10
PV1 PV1 PV2 PV2
PV PV PV
3.0-3-M
3.7-3-M
4.5-3-M
5.0-3-M
6.0-3-M
7.0-3-M
8.2-3-M
3.0-3-S
3.7-3-S
4.5-3-S
7
Torque (Nm / lbf.in.) → see
printing near wire terminal
8
9
2
DC-DC+
2
1
1
DC=
10
