26

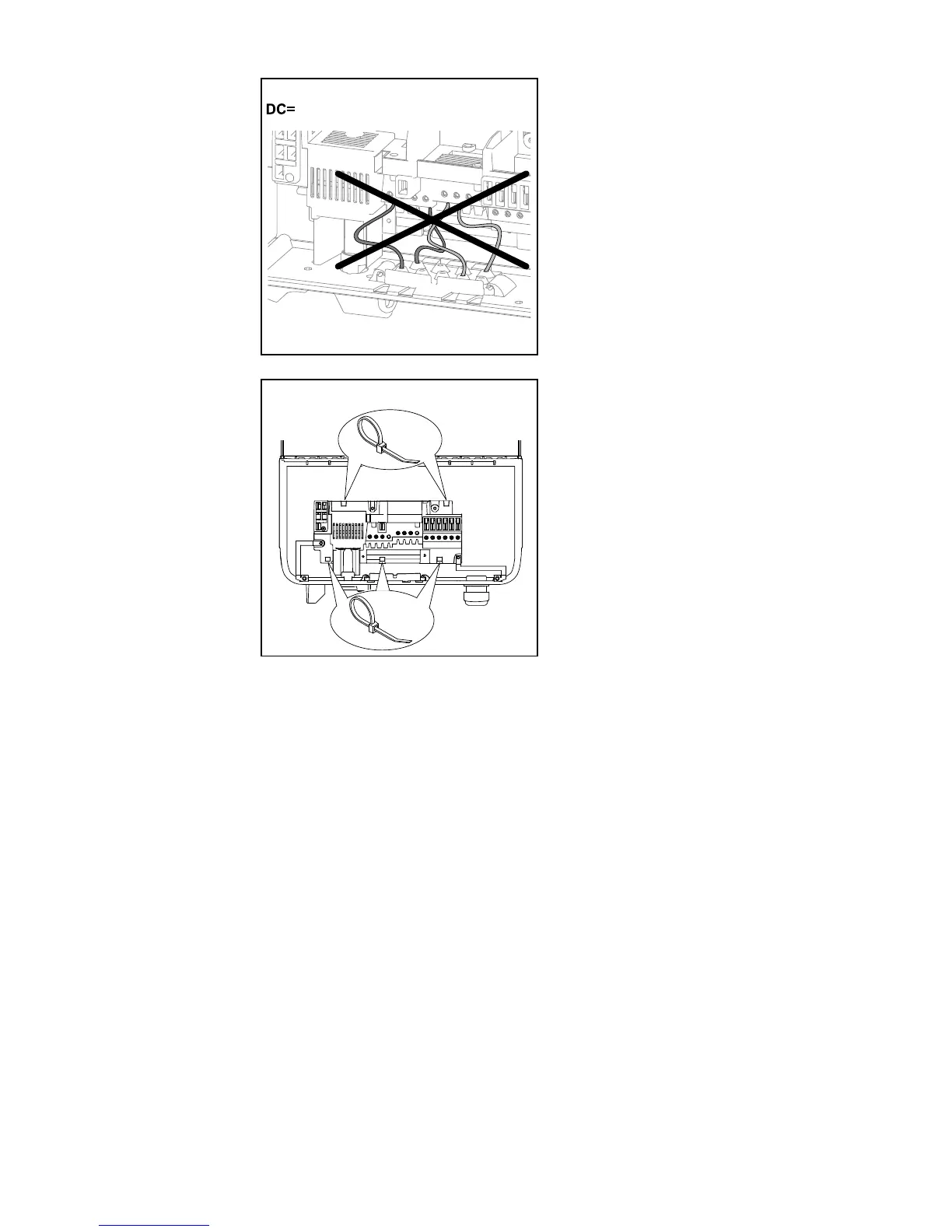

If DC cables are laid over the shaft of the
DC main switch or across the connection
block of the DC main switch, they may be
damaged when the inverter is swung in or
they may even prevent the inverter from
being swung in.
IMPORTANT! Do not lay DC cables over
the shaft of the DC main switch or across
the connection block of the DC main switch.
If overlength AC or DC cables are to be laid
in loops in the connection area, attach the
cables with cable ties to the eyelets provi-
ded on the top and bottom of the connecti-
on block.
