122
MIG/MAG jobs can also be selected via the JobMaster or Up/Down welding torches.
When you retrieve a job directly from the power source, you can also select vacant
program locations (symbolised by “- - -”). Only pre-programmed program locations can
be selected via the JobMaster or Up/Down torches, however.
To view the settings for the selected job, use the "Parameter selection" buttons. The
settings cannot be modified. The process and operating mode of the stored job are
also displayed.
Start welding
Welding takes place with the welding parameters stored in the job.
During welding you can switch to another job without stopping (e.g. in robot operation).
When you change to another process, Job mode is ended.
Copying/overwrit-
ing a job

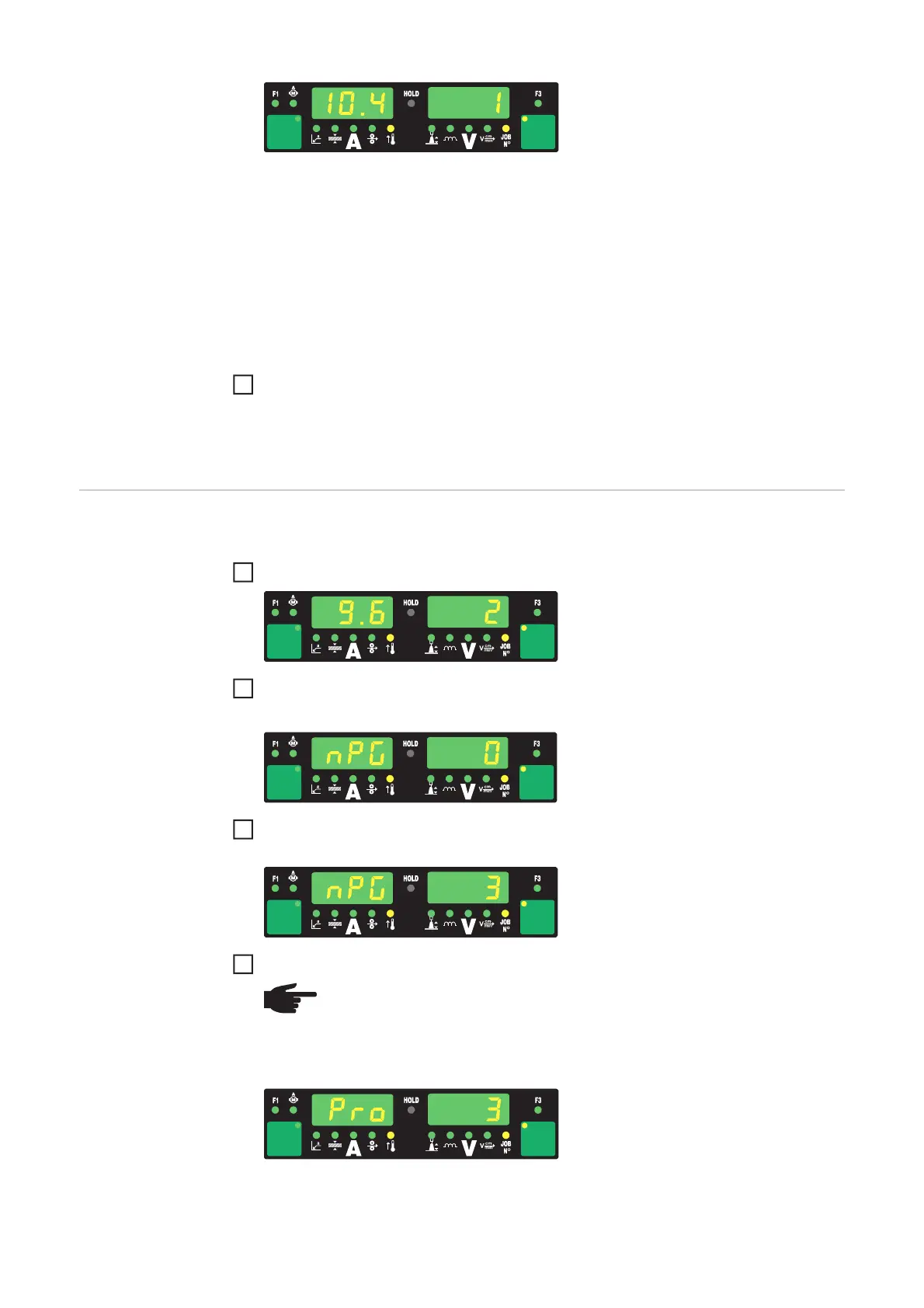

In Job mode you can copy a job that has already been saved to one program location to
any other program location. To copy a job, proceed as follows:
Use the adjusting dial (1) to select which job you want to copy
Briefly press the Store button to change to the job menu
The first vacant program location for the job to be copied is indicated.
Select the desired program location with the adjusting dial, or else leave the suggest-
ed program location unchanged.
Press and hold the Store button
The left-hand digital display reads "Pro" - the job is copied to the program location you
have just selected.
"PrG" appears on the left-hand digital display to indicate that the job has been copied.
2
1
2
NOTE! If the selected program location already has a job stored in it, then
this existing job will be overwritten with the new job. This action cannot be
undone.
4
