Shielding gas setup menu
General The Protective gas shield setup menu provides easy access to the protective gas shield
settings.
Protective gas
shield setup
menu for the
standard control
panel
Opening the Protective gas shield setup menu
Press and hold the Store button
Press the Gas test button
Release the Store button
Changing welding parameters
Use the Material button to select the desired parameter
Alter the parameter value using the Mode button
Exiting the Setup menu
Press the Store button
Protective gas
shield setup
menu for the
Comfort, US,
TIME 5000 Digital
and CMT control
panels

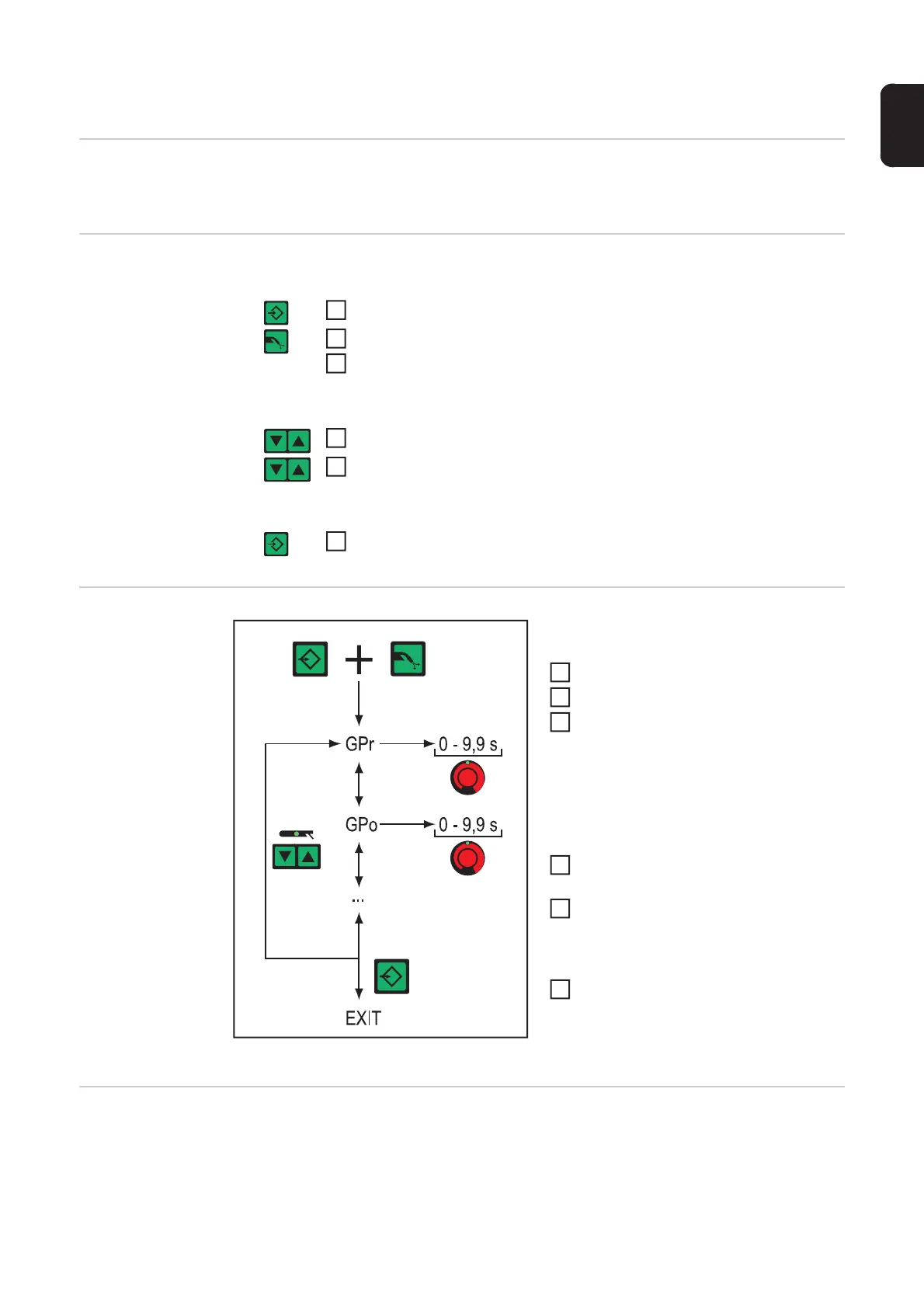

Protective gas shield setup menu: Overview
Opening the Protective gas shield setup
menu
Press and hold the Store button
Press the Gas test button
Release the Store button
The power source is now in the Protec-
tive gas shield setup menu - the last
parameter that was selected is display-
ed.
Changing welding parameters
Use the Process button to select the
desired parameter
Use the adjusting dial to change the
parameter value
Exiting the Setup menu
Press the Store button
Welding parame-
ters in the Protec-
tive gas shield
setup menu
"Minimum" and "maximum" are used for setting ranges that differ according to power
source, wire-feed unit, welding program, etc.
1
2
3
4
5
6
1
2
3
4
5
6
