Plug the welding potential bayonet plug on the interconnecting hosepack into the (+)
socket and twist to fasten it
Plug the LocalNet plug on the interconnecting hosepack into the LocalNet connection
and secure with a union nut
CMT power sources only:
Connect the LHSB plug to the LHSB connection
Connect the water feed hose (blue) (3) to the cooling unit
Connect the water return hose (red) (2) to the cooling unit
Connect the protective gas shield hose to the pressure regulator on the gas cylinder
(1)
Connect the interconnecting hosepack to the wire-feed unit
Connecting the
gas cylinder

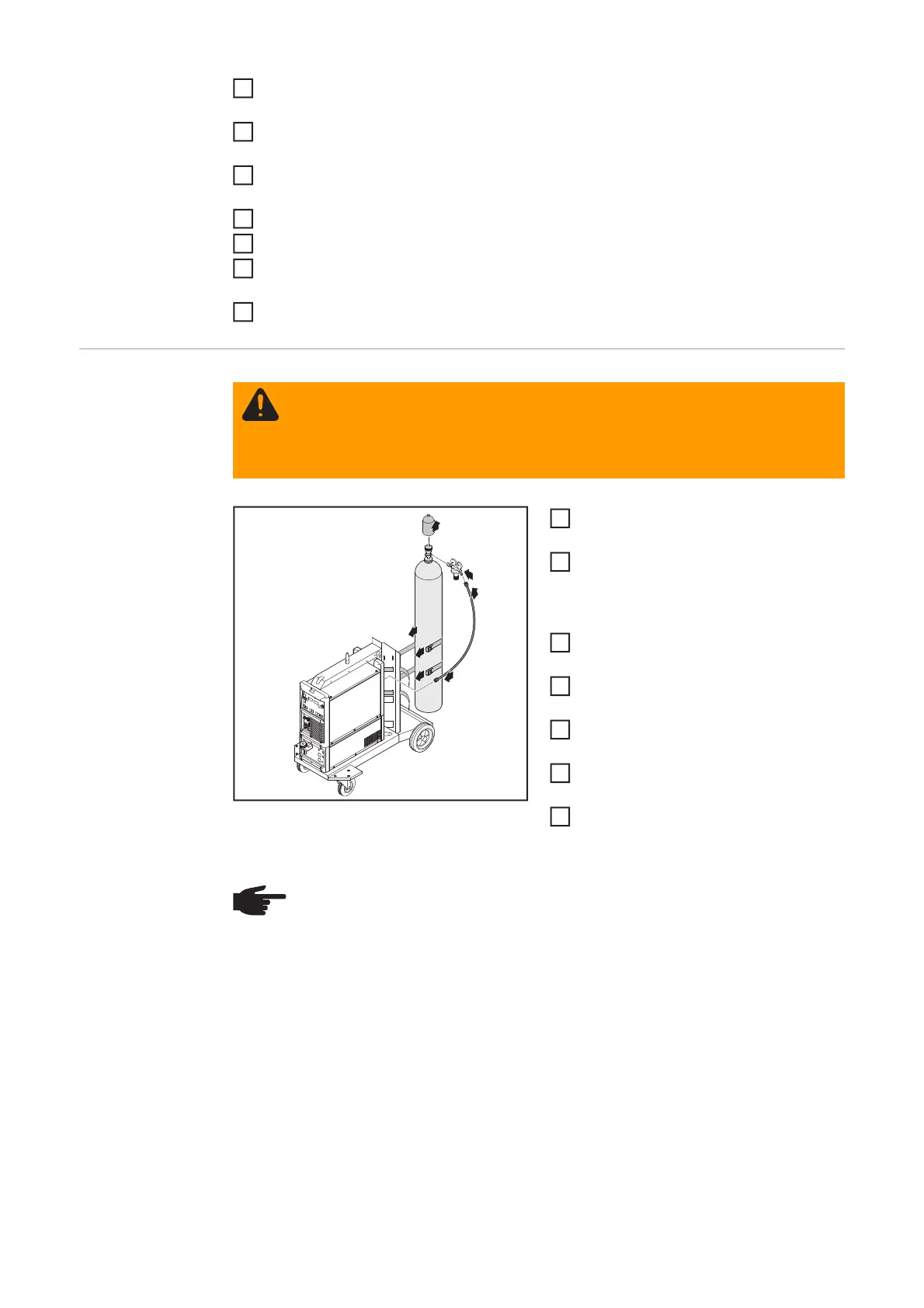

Fixing the gas cylinder on the trolley
Place the gas cylinder on the base of
the trolley
Secure the gas cylinder by fixing the
cylinder strap around the upper part of
the cylinder (but not around the neck)
to prevent it from toppling over
Take the protective cap off the gas cy-
linder
Briefly open the gas cylinder valve to
blow off any dust or dirt
Check the seal on the pressure regula-
tor
Screw the pressure regulator onto the
gas cylinder and tighten it
Connect the protective gas shield hose
of the interconnecting hose pack to the
pressure regulator using the gas hose
1
2
3
4
5
6
7
WARNING! If gas cylinders topple over, there is a risk of very serious injury and
damage. Place gas cylinders on a solid, level surface so that they remain stable.
Secure gas cylinders to prevent them from falling over.
Observe the safety rules of the gas cylinder manufacturer.
3
1
2
2
4
5
5
1
2
3
4
5
6
7
NOTE! US devices are supplied with an adapter for the gas hose:
- Glue in or seal the adapter
- Test the adapter to ensure that it is gas tight.
