154

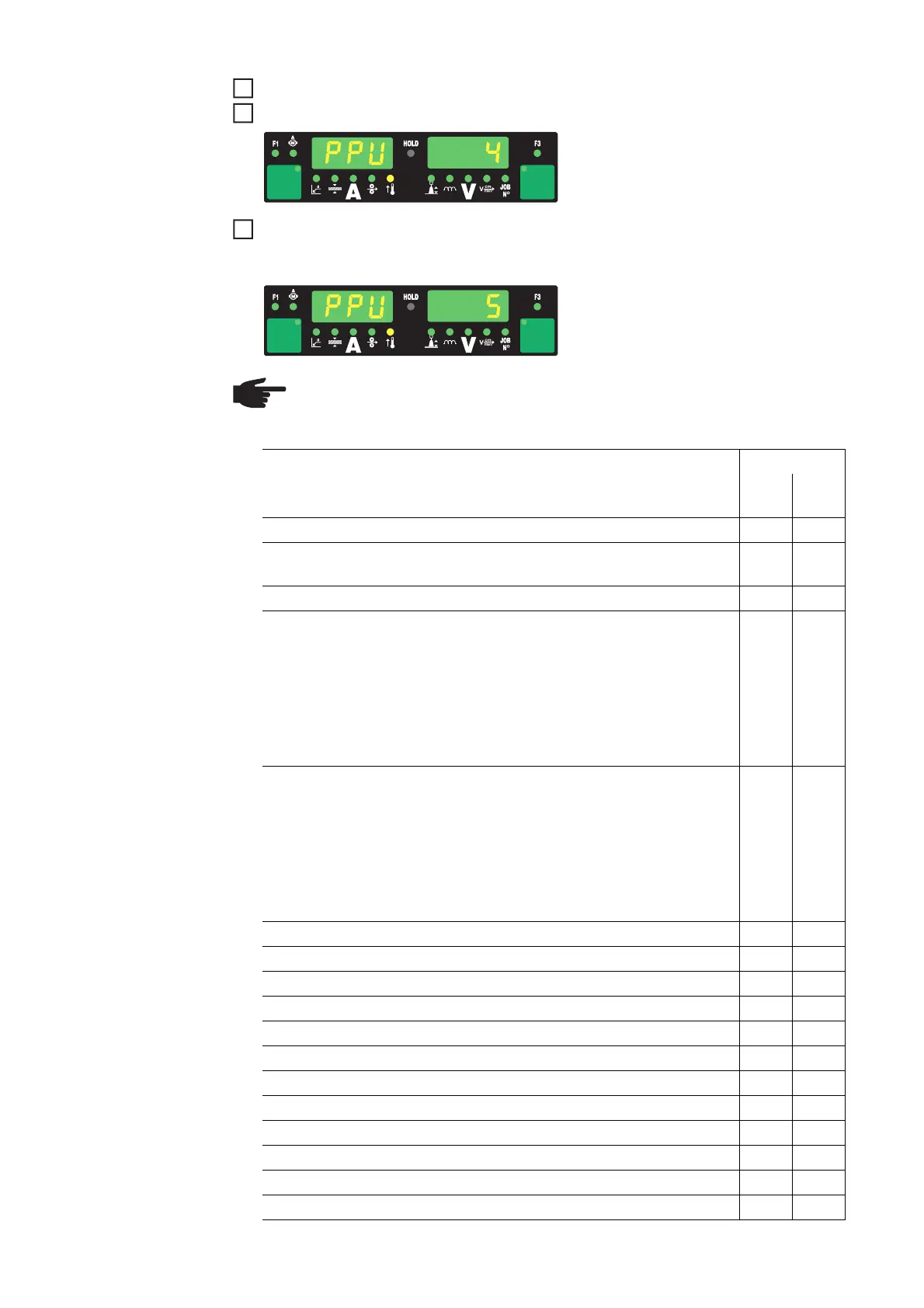

Open the Set-up menu level 2 (2nd)
Select parameter PPU
Select the corresponding push-pull unit from the list:
- using the adjusting dial
- using the Mode button on the Standard control panel
1
2
3
NOTE! The types of push-pull unit that can be selected depend upon the control
board fitted in the wire-feed unit. The control board designation can be found in
the spare parts list for the wire-feed unit.
PC board
No
.
Push-pull unit SR41 SR43
0 Fronius unreeling device "VR 1530-22“ 22 m/min / 865 ipm
1)
x
1 Fronius unreeling device “VR 1530-30” 30 m/min / 1180 ipm (val-
ue displayed on the digital display: 1.18)
1)
x
2 Fronius robot push-pull "KD Drive“ 10 m/min / 393.70 ipm
1)
xx
3 Fronius robot push-pull “Robacta Drive” (Master control)
1)
Use with long torch hosepacks of 3.5 - 8 m (11 ft. 5.80 in. - 26 ft.
2.96 in.) in conjunction with a short lead from the wirespool,
welding wire drum or large wire-feed unit spool to the wire-feed
unit of 1.5 - 3 m (4 ft. 11.06 in. - 9 ft. 10.11 in.)
Recommended feed rollers: 4 x half-round slot
xx
4 Fronius robot push-pull “Robacta Drive” (slave control)
Application:
- with short torch hosepacks of 1.5 - 3.5 m (4ft. 11.06 in. - 9
ft. 10.11 in.) in conjunction with a long lead from the wire-
spool, welding wire drum or large wire-feed unit spool to
wire-feed unit of 3 - 10 m (9 ft. 10.11 in. - 32 ft. 9.70 in.)
- in SynchroPulse mode
xx
5 Fronius manual push-pull “PullMig” with power potentiometer x
6 Fronius manual push-pull “PullMig” without power potentiometer x
7 Binzel manual push-pull 42 V with power potentiometer
2)
x
8 Binzel manual push-pull 42 V without power potentiometer
2)
x
9 Binzel robot push-pull 42 V
2)
x
10 Binzel robot push-pull 24 V
2)
x
11 Dinse robot push-pull 42 V
2)
x
12 Hulftegger manual push-pull 24 V
2)
x
13 Fronius “VR 143-2“ intermediate drive x
14 Fronius unreeling device “MS” 22 m/min / 865 ipm
1)
x
16 “Cobra Gold” manual push-pull 24 V
2)
x
20 Fronius unreeling device "VR 1530-12“ 12 m/min / 470 ipm
1)
x
