9. SERVICE INFORMATION
9.1 PARTS LIST
This parts list is correlated with the HLZ interior view found in section 9-2.
Item
#
Description Part
Number
1
Transformer, 208V/240V/12V
807-0979
2A
Air Heater, 208V only
807-2945
2B
Air Heater, 240V only
807-3011
3
Shield, HLZ Heater
900-8073
4
Air RTD Probe
807-3036
5
Bracket, RTD/Thermocouple
900-8086
6
Delivery Air Back W/A
823-2741
7
Air Thermocouple
807-3043
8A
HLZ 22 Plate, Heater with RTD
and Thermocouple, 208V/240V
(22”x15.5”)
806-9238
8B
HLZ 18 Plate, Heater with RTD
and Thermocouple, 208/240V
(22”x12”)
806-9239
9
Plug Assembly, Computer
806-9146
10
Relay, Solid State Service Kit
826-1508
11
Relay, Latching
807-3021
12
Blower, 208V/240V
807-2953
Item # Description Part
Number
13
Fuse Block
807-2820
14
Fuse, 20A
807-2819
15
Cord Set, Twist Lock, HLZ
807-3020
Not Shown
RTV#108 Silicone Rubber
811-0511
Not Shown
Gasket, HLZ Plate/Cowl
816-0418
Not Shown
Filter Screen
810-1724
Not Shown
Acrylic Tape, Double-
Sided
811-0953
Not Shown
Computer Assembly, HLZ
806-9247
Not Shown
Cowl Assembly
823-2745
Not Shown
Cowl Tinnerman Clips
809-0448
Not Shown
Front Delivery Air W/A
823-2742
Not Shown
Lug, Grounding 14 GA
807-2972
Not Shown
Pad, HLZ Leg
816-0410
* Note: Burger Bumpers are not used on units built after
10/98.

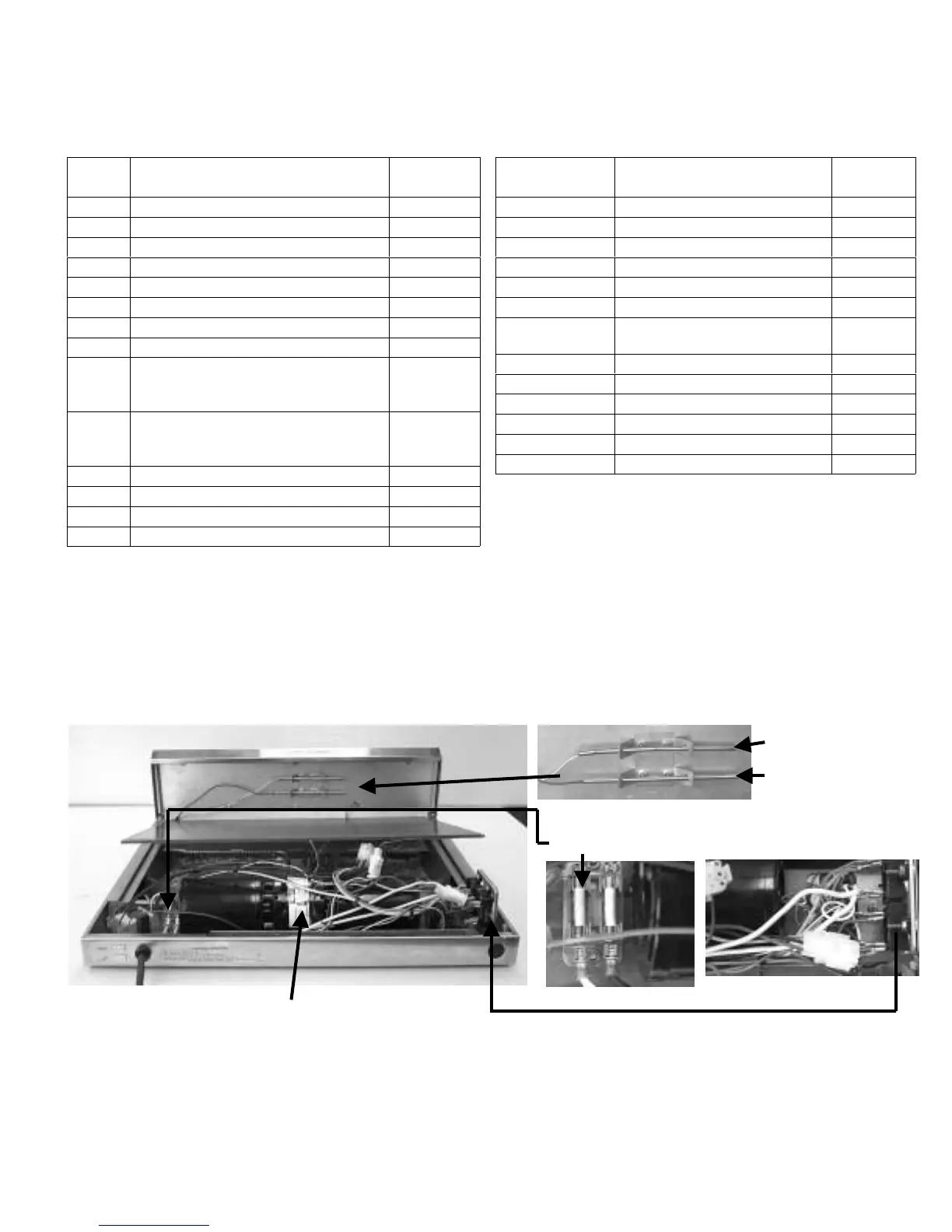

9.2 Interior view of an HLZ (Cowl Assembly removed)
Blower assembly
Fuses
Relays
• Air RTD Probe
• Air Thermocouple
