Frymaster HLZ 22 - 9.7 Wiring Diagram

Frymaster L.L.C., 8700 Line Avenue 71106, P.O. Box 51000, Shreveport, Louisiana 71135-1000
318-865-1711 FAX 318-862-2394
Printed in the United States Service Hotline
Page 22
1-800-24-FRYER

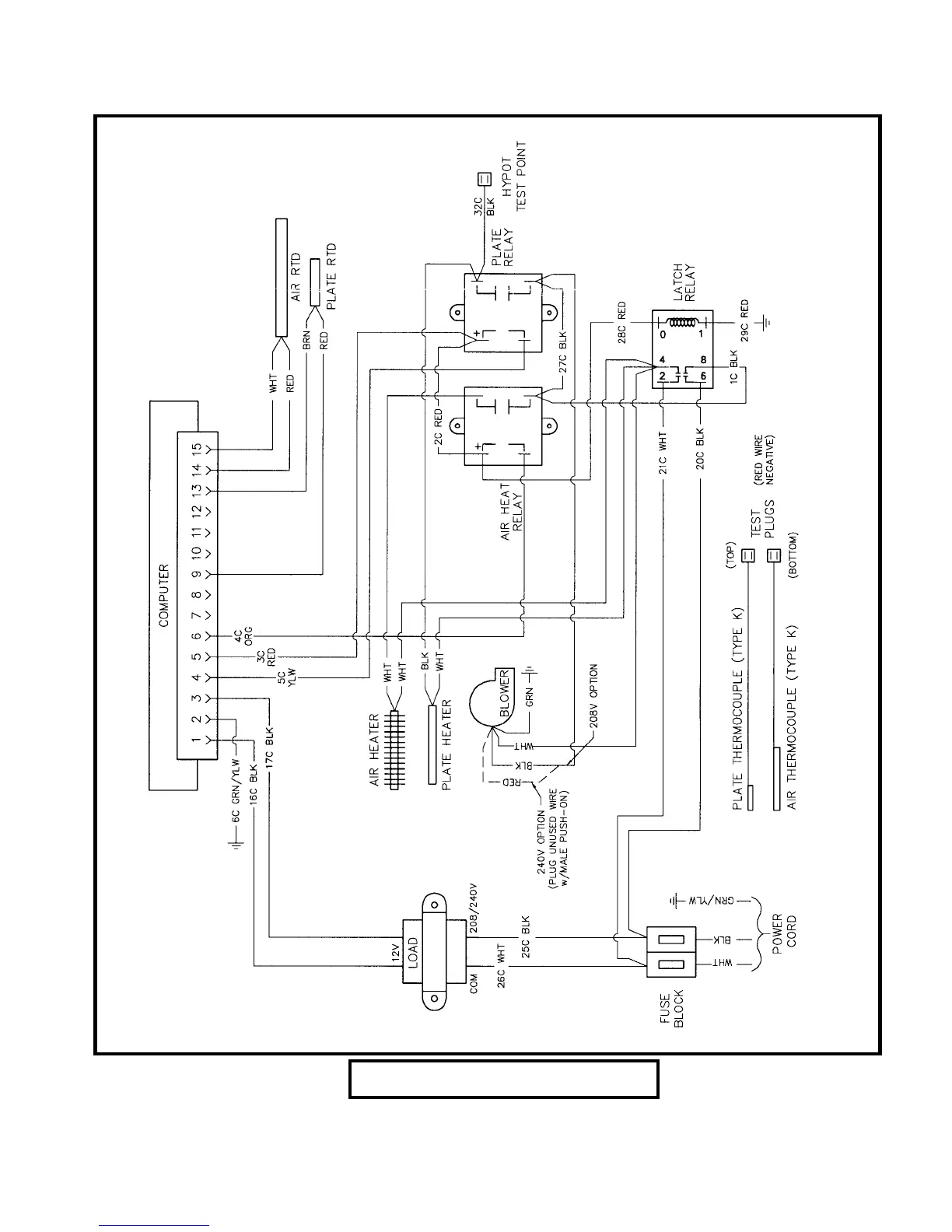

9.7 Wiring Diagram
Wire Diagram 805-1044C
