6. HLZ MODEL/COMPONENT IDENTIFICATION

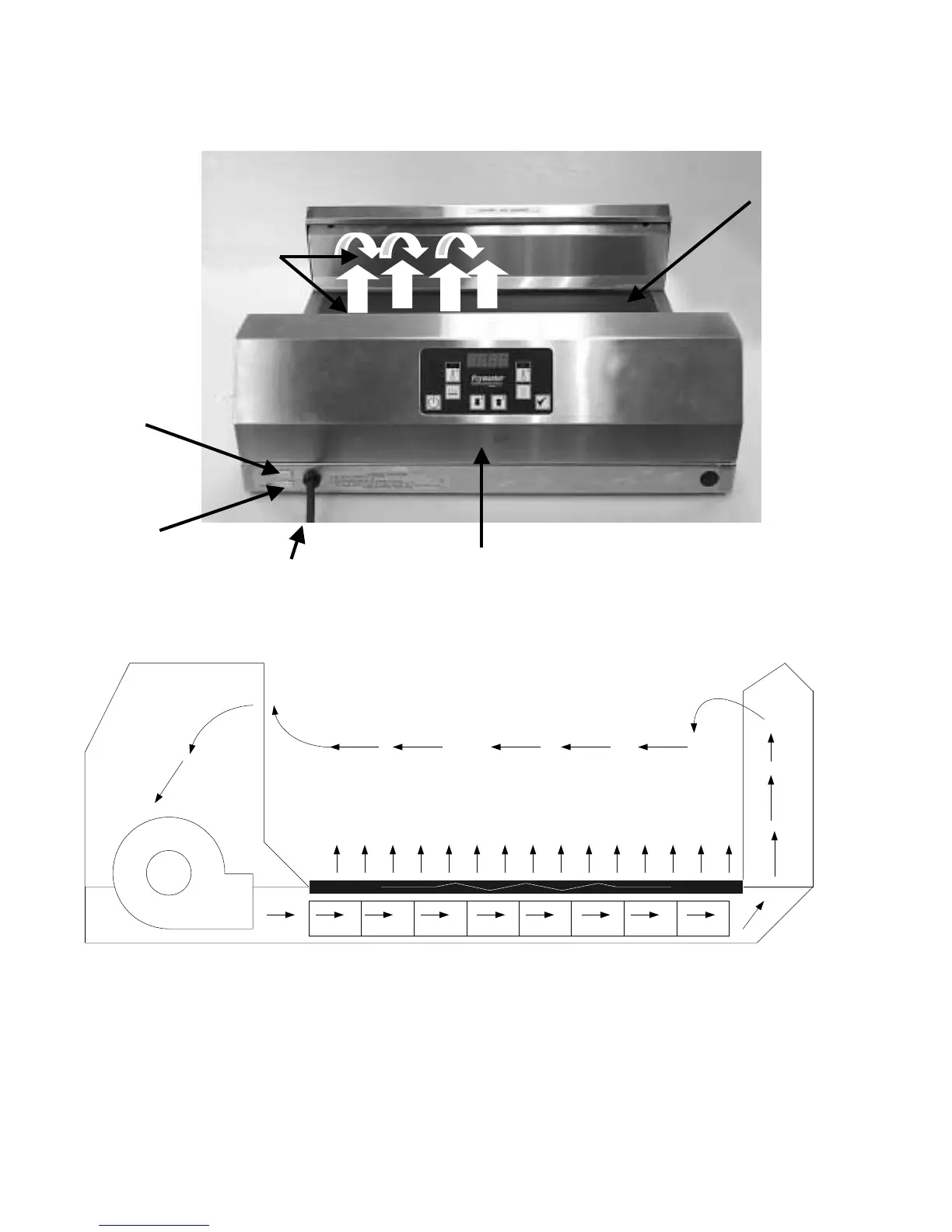

Heated air flows
from the air
heater/blower
and heat rises
from the heater
plate.
Heater Plate
Calibration
Socket
Air Heate
r
Calibration
Socket
HLZ Computer
Heater
Plate/Landing
Zone
Power Cord
Blower Assembly
Air Heater
Heater Plate
A look at the flow of
heated air around the HLZ
Heater plate
