Fuji Xerox DocuCentre-V C5580 Administrator's Guide

2 Paper and Other Media
54
Paper and Other Media
2

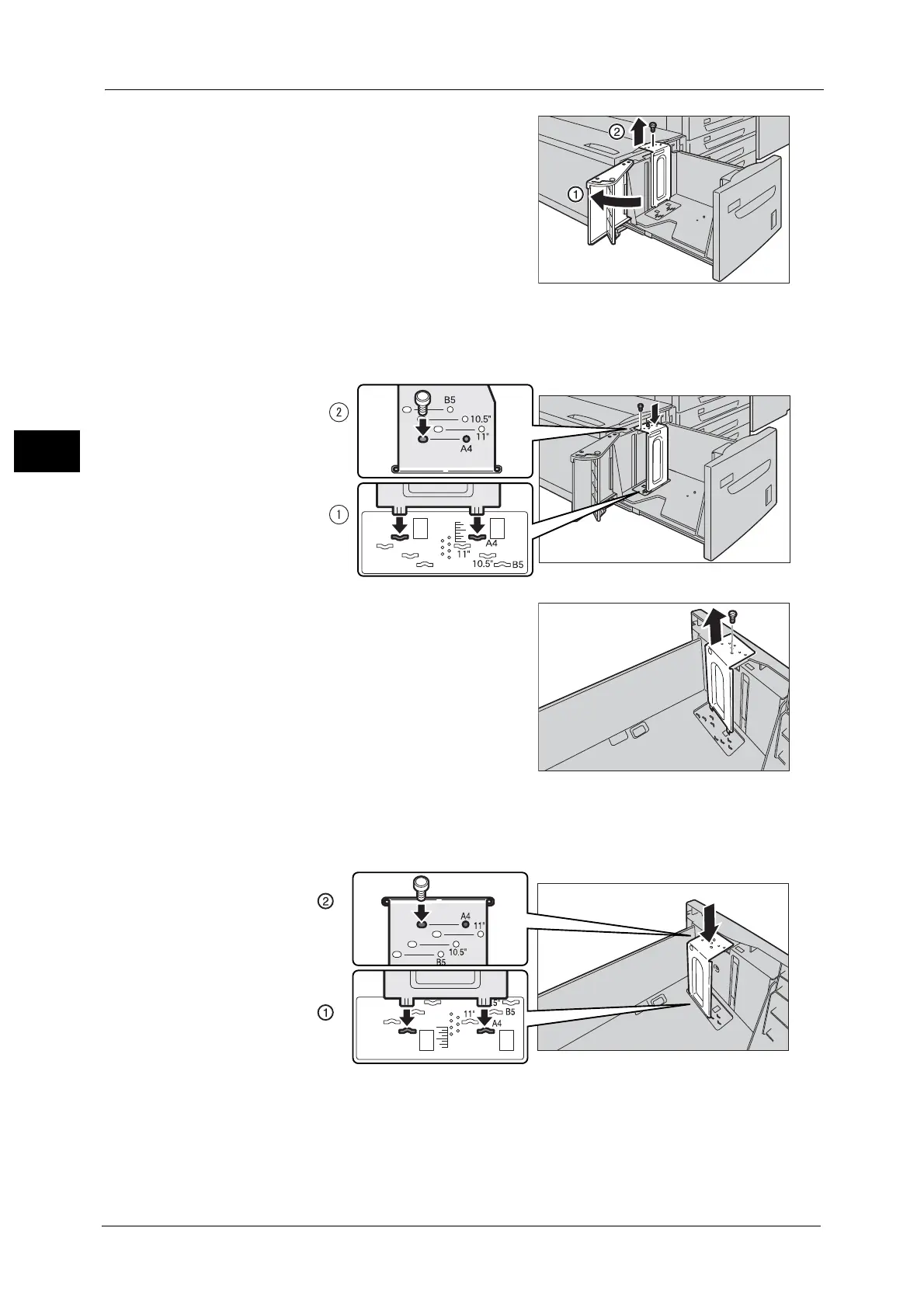

3 Open the end guide (1), and unscrew the screw
(2). Then, remove the guide from the tray.
4 Insert the small protrusions at the bottom of the guide into holes corresponding to the
paper size (1). Insert the protrusion on the tray into a hole corresponding to the paper size
on the top of the guide and tighten the screw (2).
5 Unscrew the screw of the front guide and
remove the guide from the tray.
6 Insert the small protrusions at the bottom of the guide into holes corresponding to the
paper size (1). Insert the protrusion on the tray into a hole corresponding to the paper size
on the top of the guide and tighten the screw (2).

Fuji Xerox DocuCentre-V C5580 Specifications

General

Brand	Fuji Xerox
Model	DocuCentre-V C5580
Category	All in One Printer
Language	English
