Manual Alignment Adjustment
687
Appendix
16

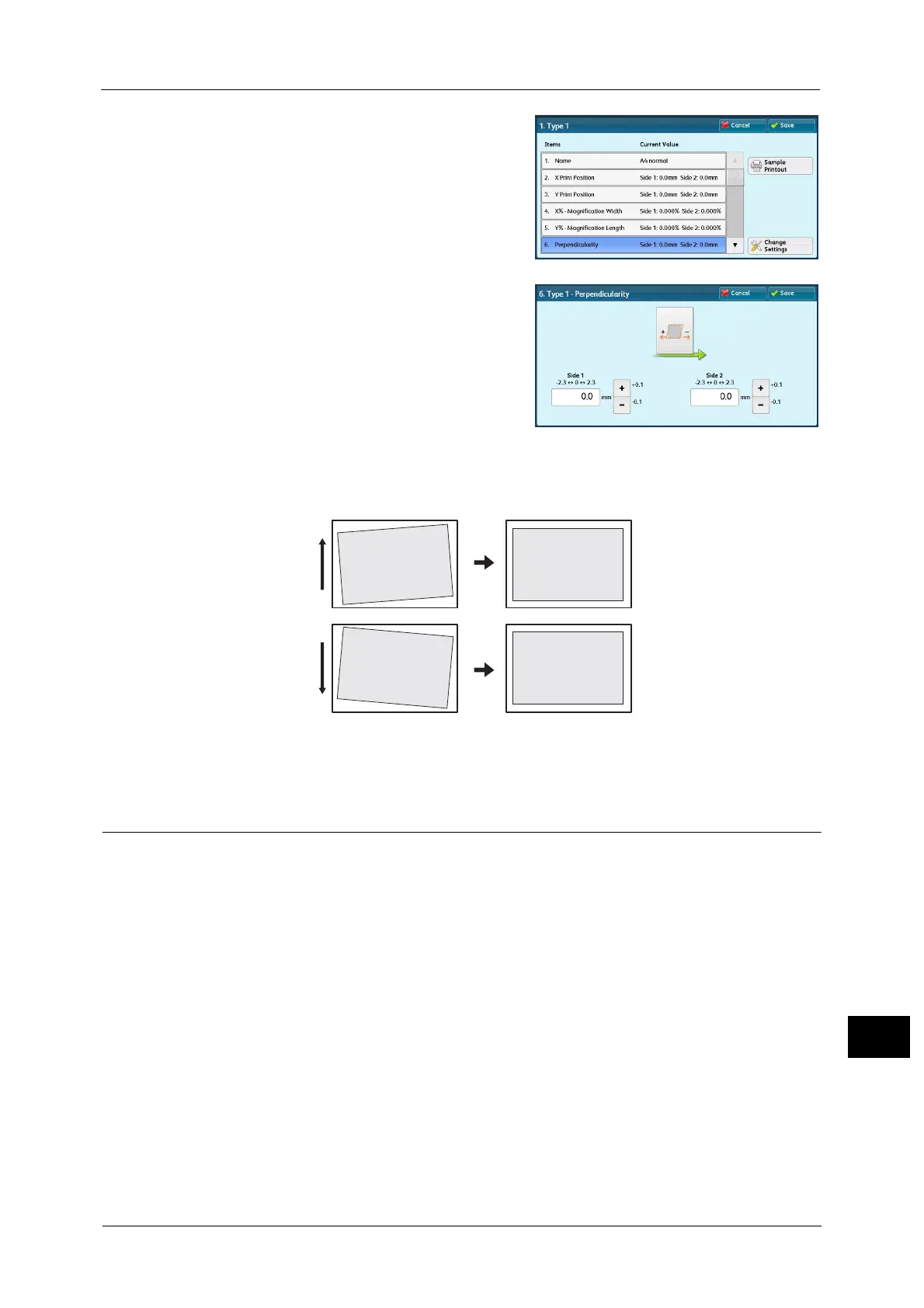

2 Select [Perpendicularity], and then select
[Change Settings].
3 Enter a value by adding the perpendicularity
misalignment amount measured in step 1 to
the current setting value of [Side 1] and [Side
2].
Note • The values displayed in [Side 1] and [Side 2]
vary depending on the machine. The
Alignment Adjustment Type feature adjusts
relative difference between the sides 1 and
2. Thus, if adjustable amount to the desired
direction is not enough in one side, adjust the other side.
• Entering a positive or negative value adjusts the squareness as shown below:
4 Select [Save].
Skew Adjustment
Adjust image skewing (tilt extent) in 0.1 mm increments for each of sides 1 and 2.
Set positive number to rotate the image in a clockwise direction, and conversely, set
negative number to rotate the image in a counterclockwise direction.
After Adjustment
After Adjustment
Input of
+ Adjustment Value
Input of
- Adjustment Value
Adjustment Direction Adjustment Direction
To Next Page
