20 Select the tray to which to assign the set type
(the tray in which you loaded the paper in step
1), and then select [Change Settings].
21 Select the adjusted type, and then select
[Save].
22 Select [Close] until [Tools] screen is displayed.
23 Assign the adjustment results to user defined paper or paper trays from [System Settings] >
[Common Service Settings] > [Paper Tray Settings].
For paper tray settings, refer to "Paper Tray Settings" (P.156).
24 Select [Close].

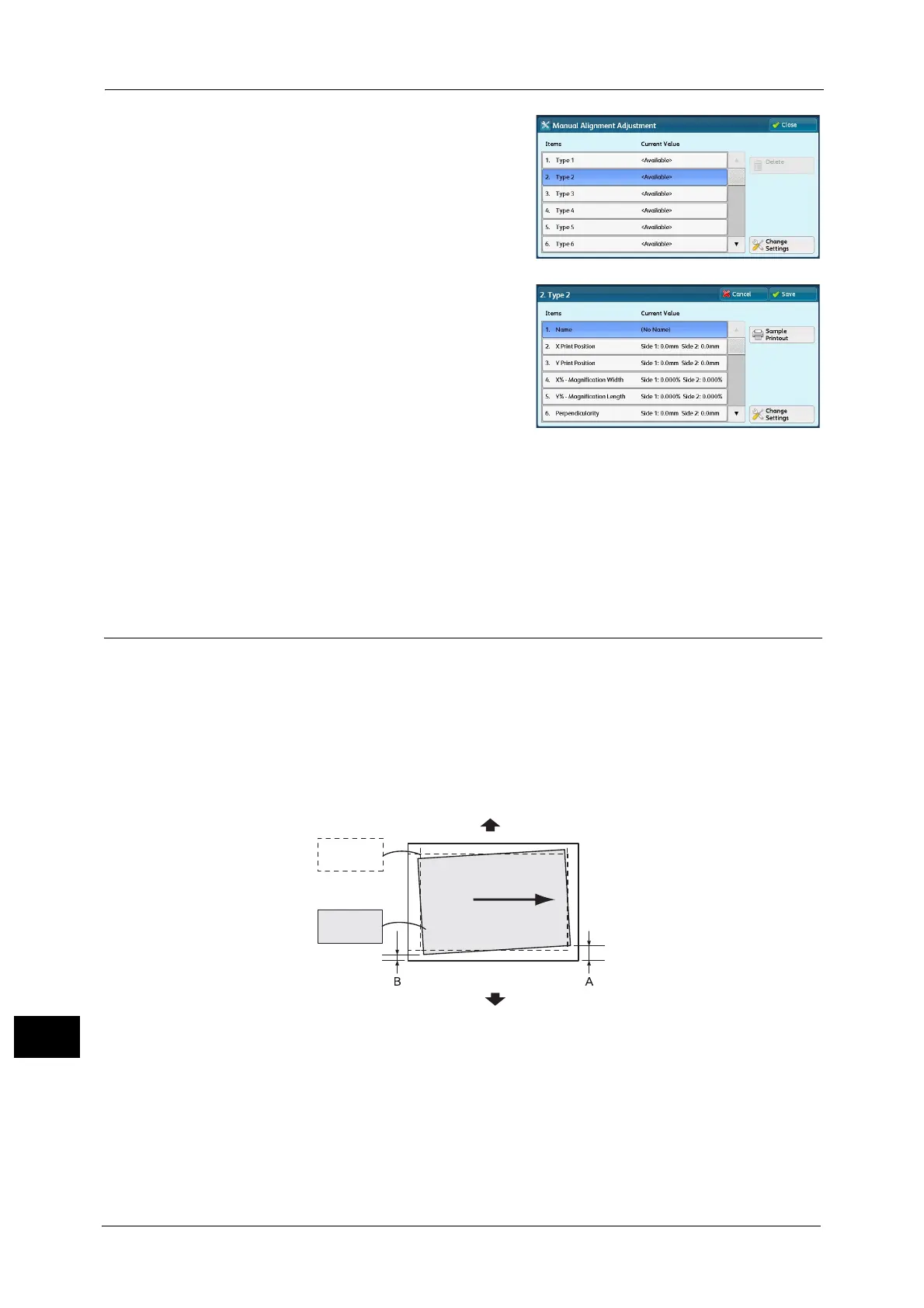

Perpendicularity Adjustment
Adjust image skewing (squareness) in 0.1 mm increments for both sides 1 and 2.
Assuming that the upper side of an output image faces the paper feed direction, set positive
number to adjust the perpendicularity of the image distorted like a parallelogram whose
right side is located on the upper position, and conversely, set negative number to adjust the
image whose left side is located on the upper position.
1 Check the sample printout, measuring the amount of squareness misalignment.
Use the following equation to obtain the perpendicularity misalignment amount, with "A"
as the length of the lead registration at the rear of the machine, and "B" as the length of the
lead registration at the front of the machine.
Perpendicularity misalignment amount = (A - B) × 400 ÷ (length of Y direction of paper - 30
mm)
For example, when A3 is placed horizontally: (A - B) × 400 ÷ 267
Paper feed direction
Image after
Back of Machine
Front of Machine
To Next Page
