33 Basic Operation
Operator Panel

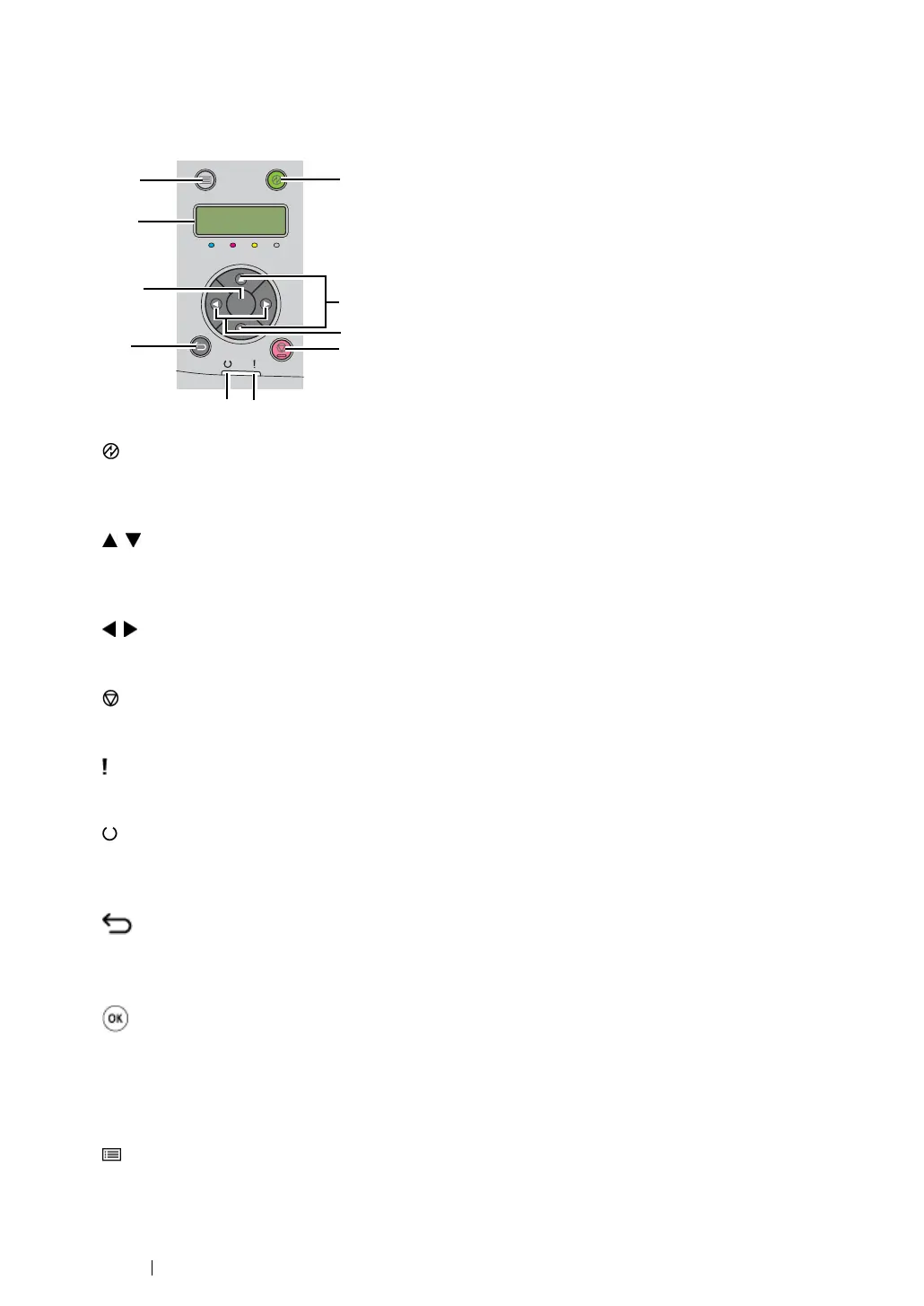

The operator panel has a liquid crystal display (LCD), buttons, and indicators.
1 (Energy Saver) Button/Indicator
• Lights up in the Mode 2 for the Power Saver Mode. Press this button to exit the Power Saver
Mode.
2 Buttons
• Scrolls through menus or items in the Menu mode. To enter numbers or passwords, press
these buttons.
3 Buttons
• Selects submenus or setting values in the Menu mode.
4 (Cancel Job) Button
• Cancels the current print job.
5 (Error) Indicator
• Lights up when an error occurs and blinks when an unrecoverable error occurs.
6 (Ready) Indicator
• Lights up when the printer is ready or the printer is in the Mode 1 for the Power Saver Mode
and blinks when data is being received.
7 (Back) Button
• Switches to the print mode from the top menu of the Menu mode.
• Returns to the upper hierarchy of the menu from the submenu of the Menu mode.
8 Button
• Displays the selected menu or item and determines the selected value in the Menu mode.
9 LCD Panel
• Displays various settings, instructions, and error messages.
10 (Menu) Button
• Moves to the top menu.
OK
1
10
6
5
4
3
2
7
8
9
