FujiFilm DRYPIX 4000 Service Manual

DRYPIX 4000 Service Manual
MD-6
MD-6
006-267-02
04.25.2005 FM4589

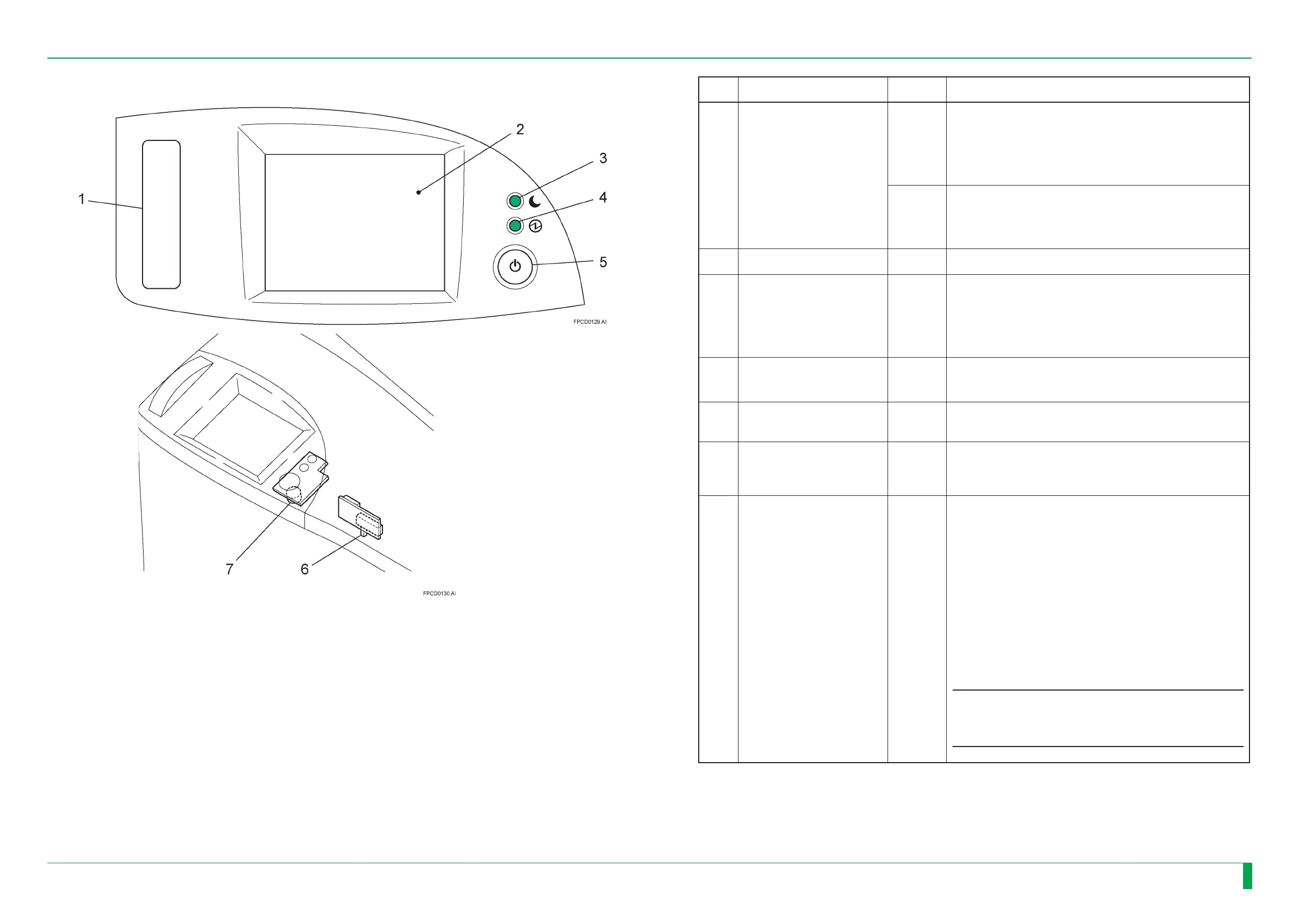

1.3.2 Operation Panel
No. Name Color Function
1 Status lamp Green
•
When lit : Normal
•
When blinking : During initialization self-diag-
nosis
•
When OFF : Other than above
Orange
•
When blinking : Film empty/level 0 error/level
1 error has occurred
•
When OFF : Other than above
2 Display 320 × 240 dot color touch panel (LCD)
3 Power save lamp Green
•
When lit : At sleep mode
•
When blinking : At power save mode/when
display is OFF
•
When OFF : Normal
4 Power lamp Green
•
When lit : Main power switch is ON.
•
When OFF : Main power switch is OFF.
5 Power ON switch Pressing when the equipment is not ON starts
the equipment.
6 Contrast adjustment
volume
Used for adjusting the display contrast.
(Located at the right bottom of the operation
panel)
7 Buzzer • Film empty (*1) : Repeats 900msec ON and
300 msec OFF
• Level 1 error : Repeats 500 msec ON and
100 msec OFF
• Level 0 error : Repeats 200 msec ON and
100 msec OFF
• Operation reject : Two short buzz. (PiPi)
*1 : When using the same size films on both film
trays, the buzzer will be sounded when both
trays run out of films.
<REMARKS>
Whether the alarm buzzer is sounded continu-
ously and the buzzer volume depend on the
U-Utility or M-Utility settings.

FujiFilm DRYPIX 4000 Specifications

General

Print Speed	Approximately 130 sheets/hour (14 x 17 inch)
Print Resolution	320 dpi
Resolution	320 dpi
Weight	Approx. 441 lbs. (200 kg)
Power Requirements	AC200-240V ±10% 50/60Hz 10A
Media Size	8x10 inches, 10x12 inches, 11x14 inches, 14x17 inches
Film Sizes	8x10 inches, 10x12 inches, 11x14 inches, 14x17 inches
Input Film Magazines	2
Connectivity	Ethernet
Network Interface	Ethernet 10Base-T/100Base-TX
Gradation	4, 096 levels (12 bits)
