FujiFilm LP5700 - Supply Motor (M102) Replacement

7-67
7.3 NC100AY Nest Section
7
Removal
1. Remove the nest section unit
(See Subsection 7.3.3).
2. Remove:
• 135 entrance guide
(See Subsection 7.3.7).
• Gear bracket
(See Subsection 7.3.9).
3. Remove the two screws and then the motor/
bracket.
4. Remove the screw, D-washer, collar, spring, gear
assembly and gear.
5. Remove the two screws and then the bracket from
the motor.

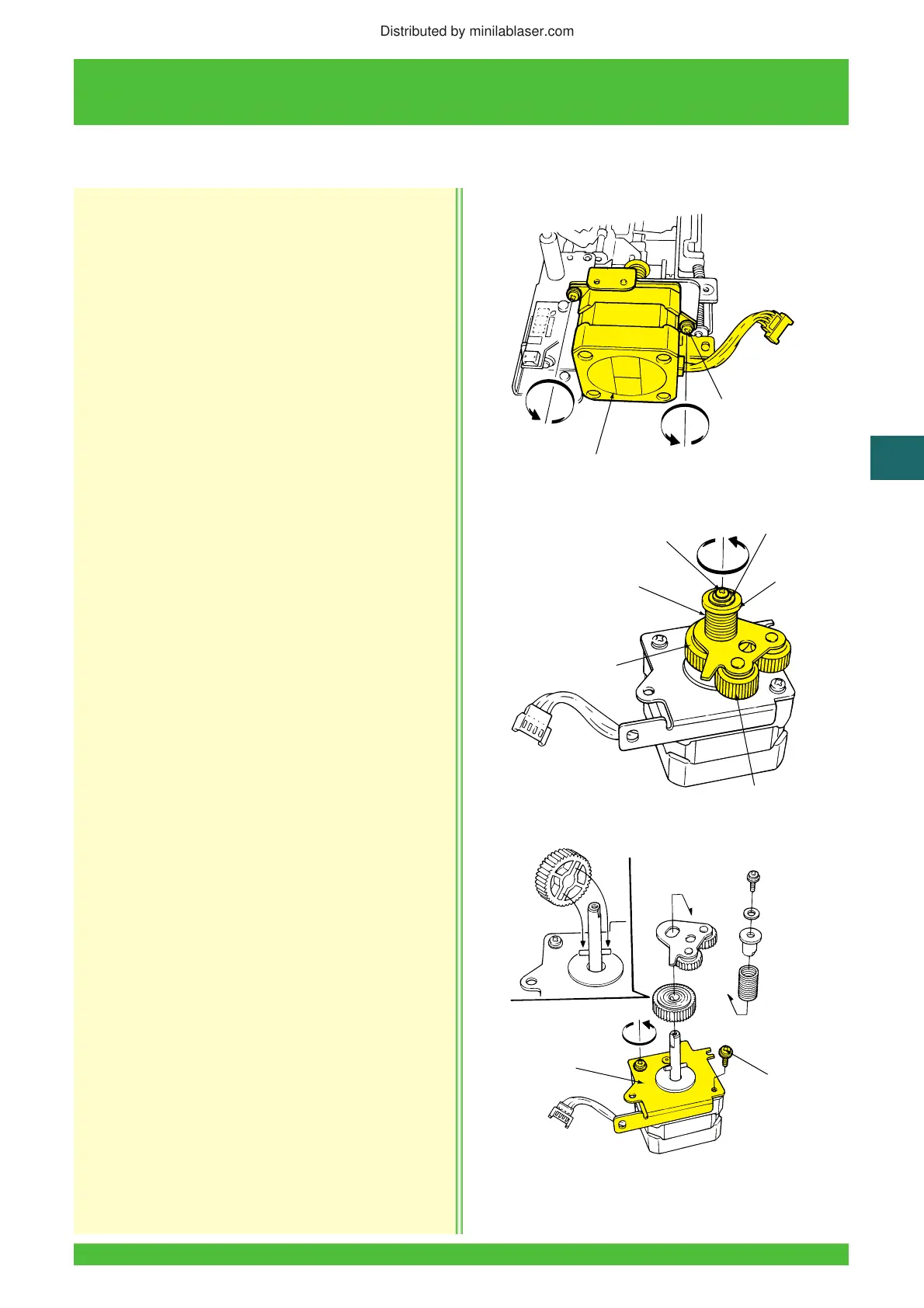

7.3.15 Supply Motor (M102) Replacement
Z2378
Motor/Bracket
Screws (2)
Z2379
Gear Assembly
Gear
Spring
Collar
D-washer
Screw
Z2380
Bracket
Screws (2)
