Removing and installing components during servicing

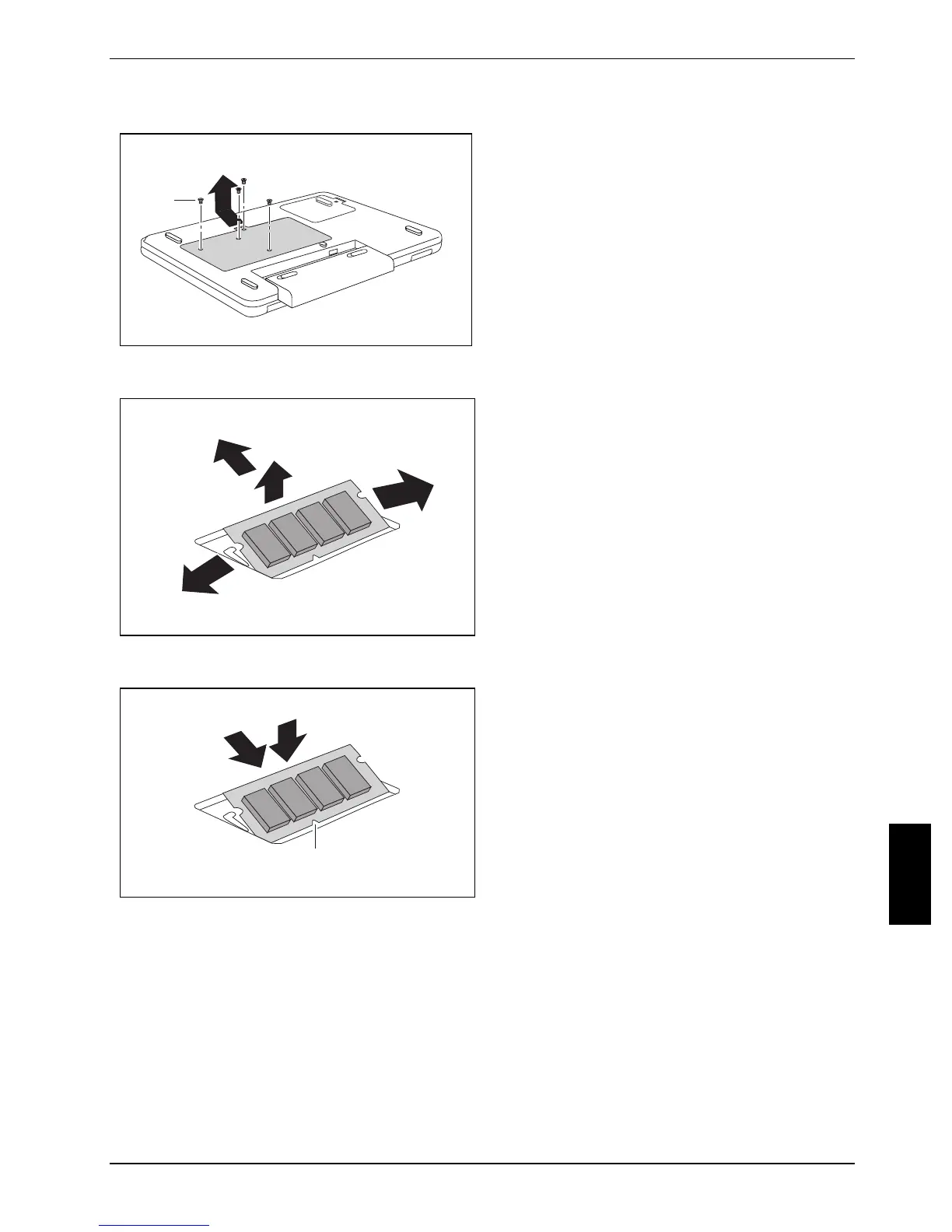

Cover: removing
► Remove the screws (1).
1
2
► Lift the cover off the notebook in the
direction of the arrow (2).
Removing a memory module
► Carefully push the two mounting clips
outwards (1).
3
2
1
1
The memory module will snap upwards (2).
► Pull the memory module out of its slot in the
direction of the arrow (3).
Installing a memory module
► Insert the memory module with the contacts
and the recess (a) facing the slot (1).
2
a
1
► Carefully push the memory module
downwards until you feel it click into place
(2).
