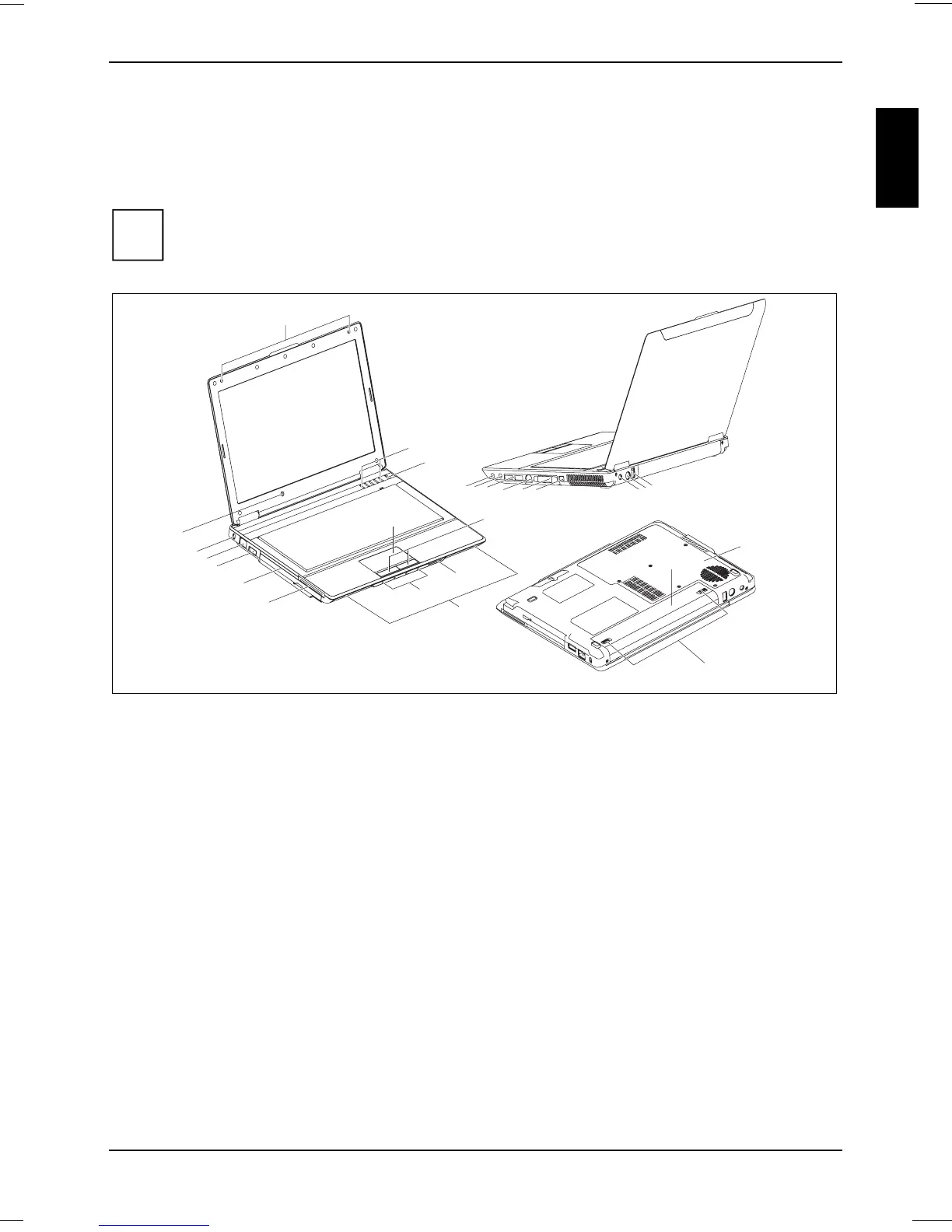

Ports and operating elements
This chapter presents the individual hardware components of your notebook. You can obtain an
overview of the ports and operating elements of the notebook. Please familiarise yourself with these
components before you start to work with your notebook.
i
Please note that the ports and operating elements are laid out differently depending on
the device.
13
14
15
17
20
21
22
23
24
25
1
2
3
4
56
7
8
9
10
11
12
16
18
19
26
1 = USB port
2 = S-Video out socket
3 = DC jack (DC IN)
4 = FireWire port
5 = DVI-I connector
6 = Modem port
7 = USB ports
8 = Microphone port/Line In
9 = Headphone port/SPDIF
10 = Hard disk
11 = Battery release latch
12 = Battery
13 = Built-in microphone
14 = Easy Launch keys
15 = ON/OFF switch of the Notebook
16 = Touchpad
17 = Touchpad buttons
18 = Memory card slot
19 = Built-in loudspeakers
20 = Status indicators
21 = ExpressCard slot
22 = CD/DVD drive
23 = USB port
24 = LAN port
25 = Kensington Lock
26 = Light sensor
