2.3 Precautions on Installation and Operation
■ Securing adequate space for ventilation and maintenance

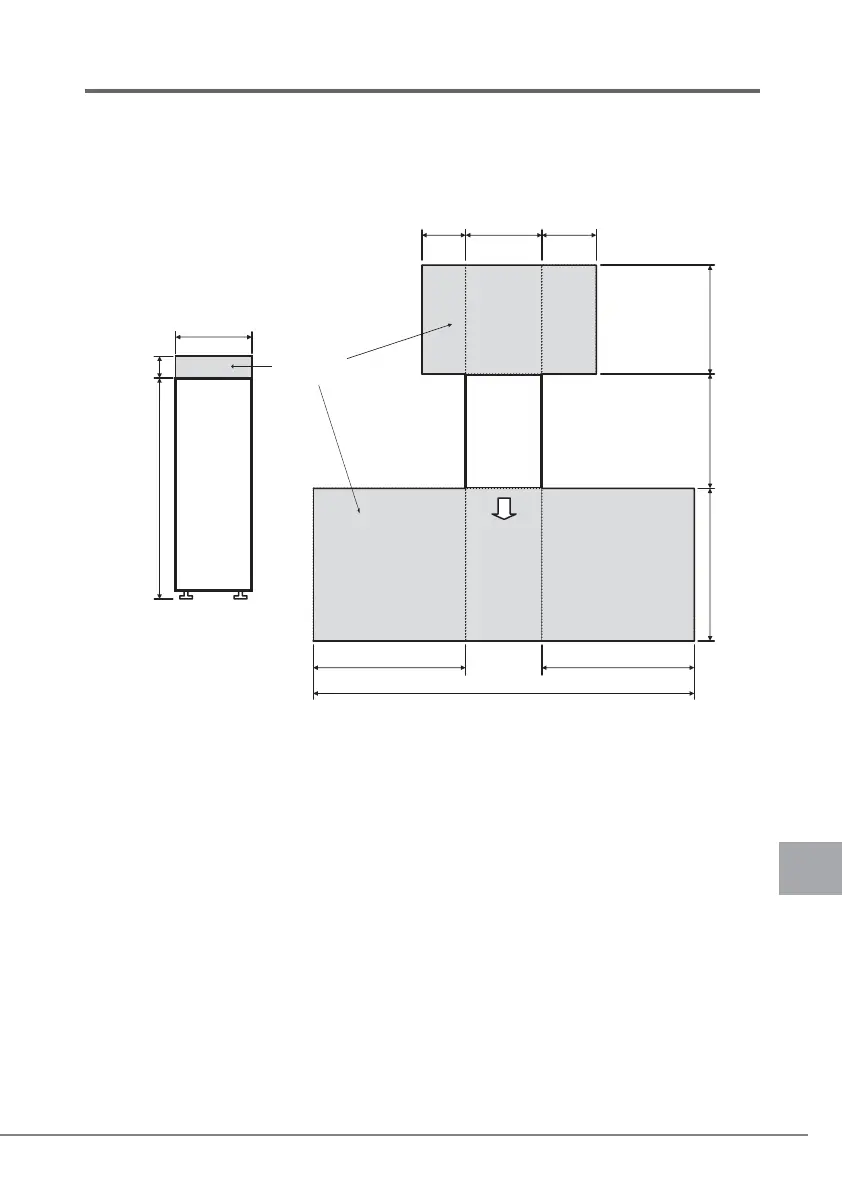

When installing the rack, secure adequate space for ventilation and maintenance.
Secure the following space.
*1) The external rack dimensions depend on the specifications of the rack.
*2) This applies to cases where the upper wiring area is used. However, it does not apply to 16 U and 24 U
racks.
*1
600mm/700mm
400mm 500mm
1000mm
1050mm
1400mm
1400mm
3400mm/3500mm *1
1400mm
*1
600mm/700mm
*2
200mm
*1
845mm (16U)
1200mm (24U)
1800mm (37U)
2000mm (42U)
Rack front
view
Rack top view
Front of rack
Space for ventilation
and maintenance
