4.10 Attaching a Stabilizer (L-shaped)
The procedure for attaching the stabilizer is shown below.
■ Confirm the components, and prepare the necessary tools.
Confirm that all components have been delivered (see the table below).
Also, prepare the necessary tools:
・ Spanner: For M10 bolts
The procedure for attaching the stabilizer (L-shaped) is shown below.
4.10.1 Attaching the stabilizer (L-shaped)
1 From the front, secure the stabilizer body to the rack with four bolts.
・ Stabilizer (slim/L-shaped) Type name: 19R-26FS1
・ Stabilizer (standard/L-shaped) Type name: 19R-27FS1
Product name Quantity
YStabilizer body 1
M10 bolt 4

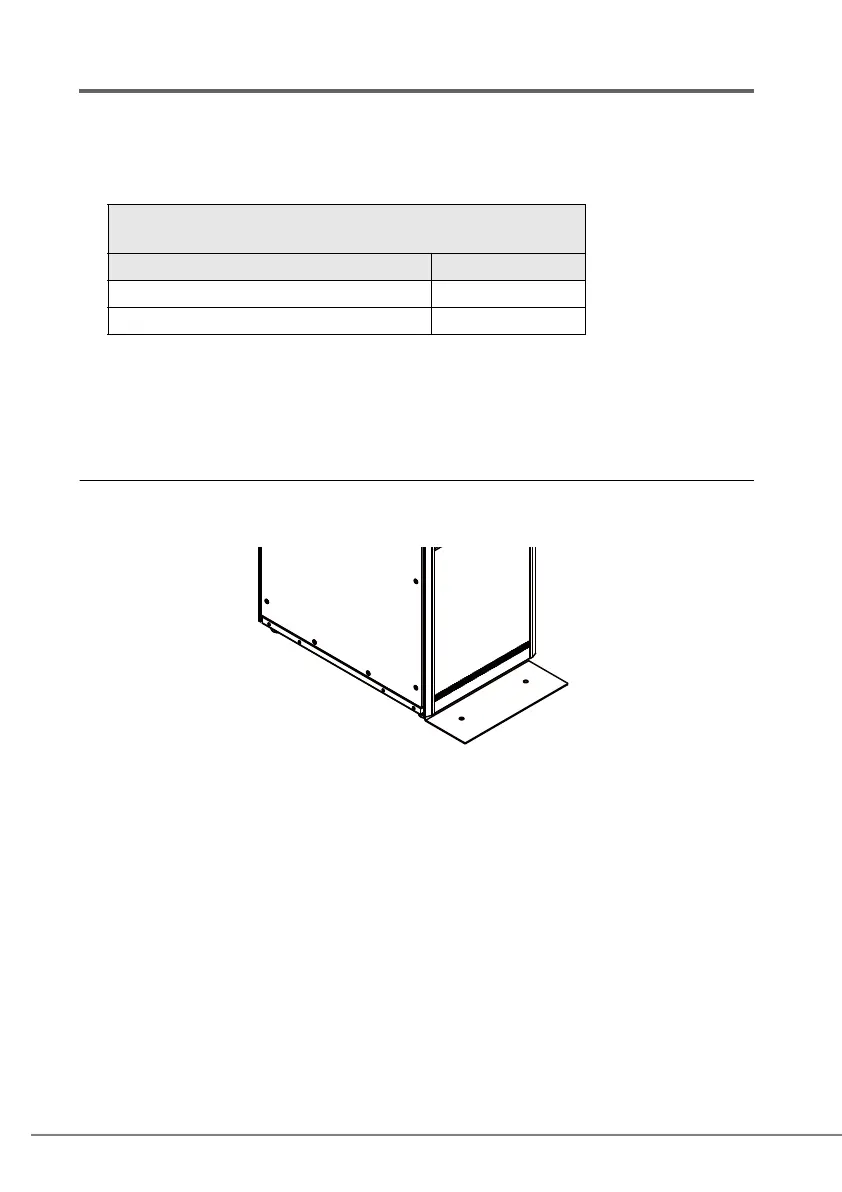

Illustration of attached L-shaped stabilizer
