Handling the Rack after Installation
This section explains how to handle the rack after installation.
4.1 Inserting and Removing Cage Nuts
4.1.1 Insertion procedure

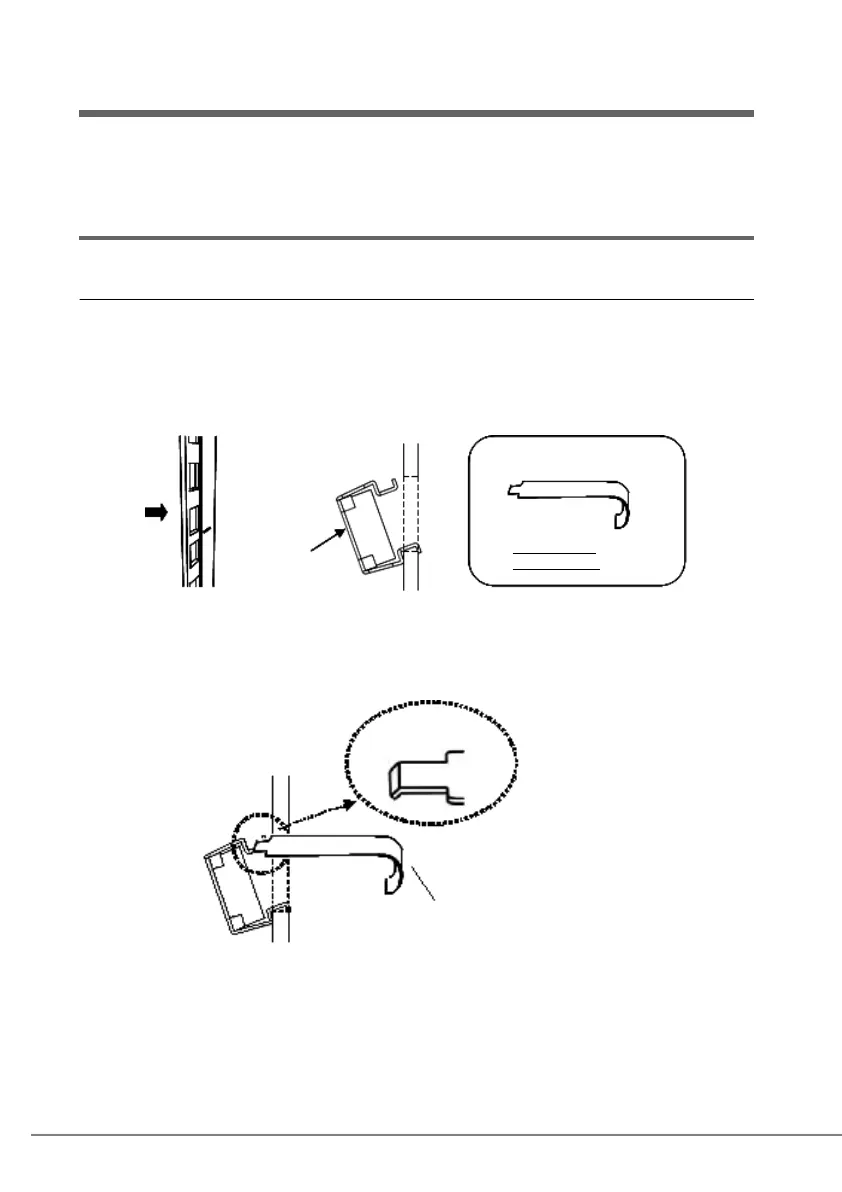

1 Install the cage nut from the inside of the rack. Insert one edge of the cage
nut into the cage nut hole of the rack.
The following figure shows the case where the edge of the cage nut is inserted into the lower
edge of the hole.
’
2 From the outside of the rack, insert the tip of the cage nut tool into the hole
that has the installed cage nut, and snap the other edge of the cage nut into
the hole .
’
Cage nut
Cage nut tool
(appearance)
Cage nut tool
Direction in
which to tilt tool
