4 Handling the Rack after Installation 129
E
3 Pull the cage nut tool to lock the cage nut in position.
’
4.1.2 Removal procedure
■ Procedure using the cage nut tool
1

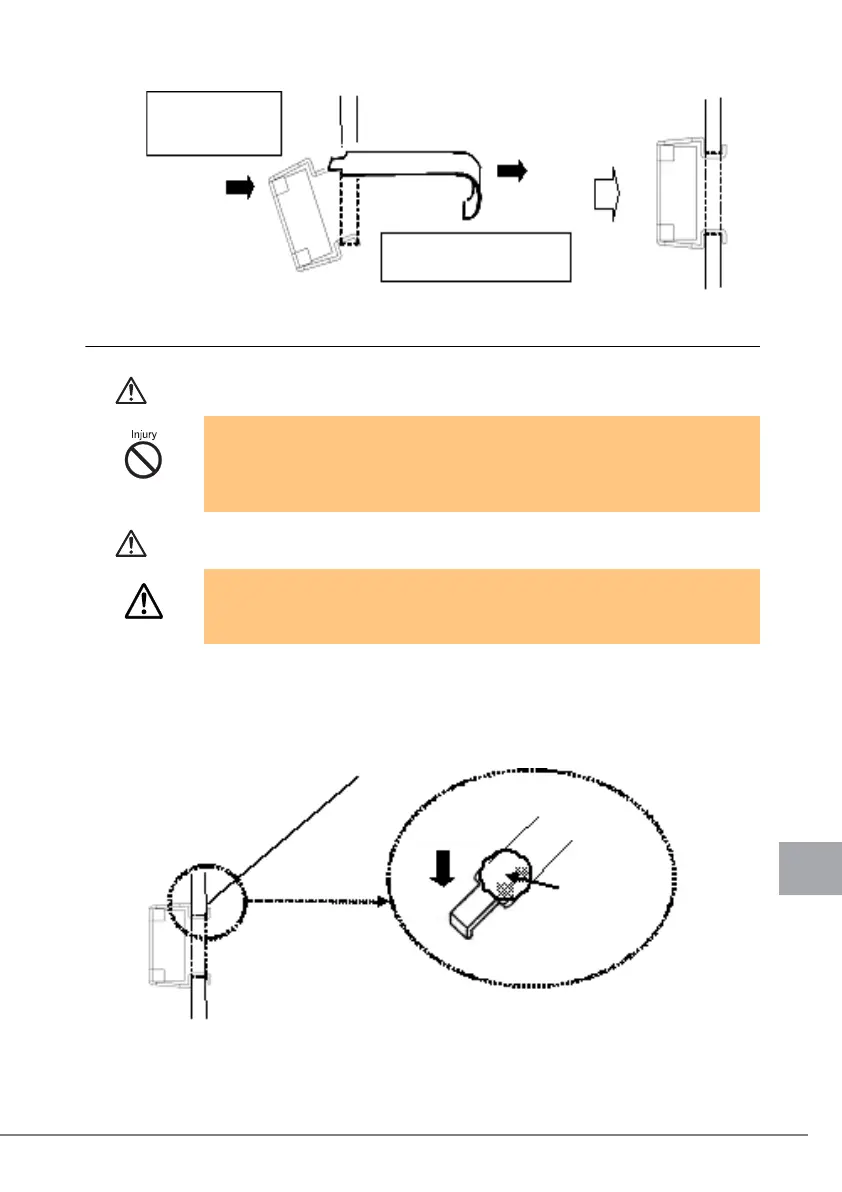

Insert the tip of the cage nut tool between the cage and the mounting
flange, and then push the edge of the cage.
’
Before pushing down on the tool or standard screwdriver, confirm that the tip of
the tool or standard screwdriver is completely inserted between the edge of the
cage and the mounting flange. If the tip is inserted incompletely, the edge of the
tool or standard screwdriver may slip off, leading to potential injury.
Secure the cage nut such as with adhesive tape to prevent it from falling into the
rack. When holding the cage nut between your fingertips, be sure to grasp its left
and right sides.
Push in direction of
insertion (direction
of arrow)
Pull (in direction of arrow)
Push in this
direction
Hold it here with
your fingers
Direction in which to
tilt tool
