4 Handling the Rack after Installation 133
E
4.2.2 Removal procedure

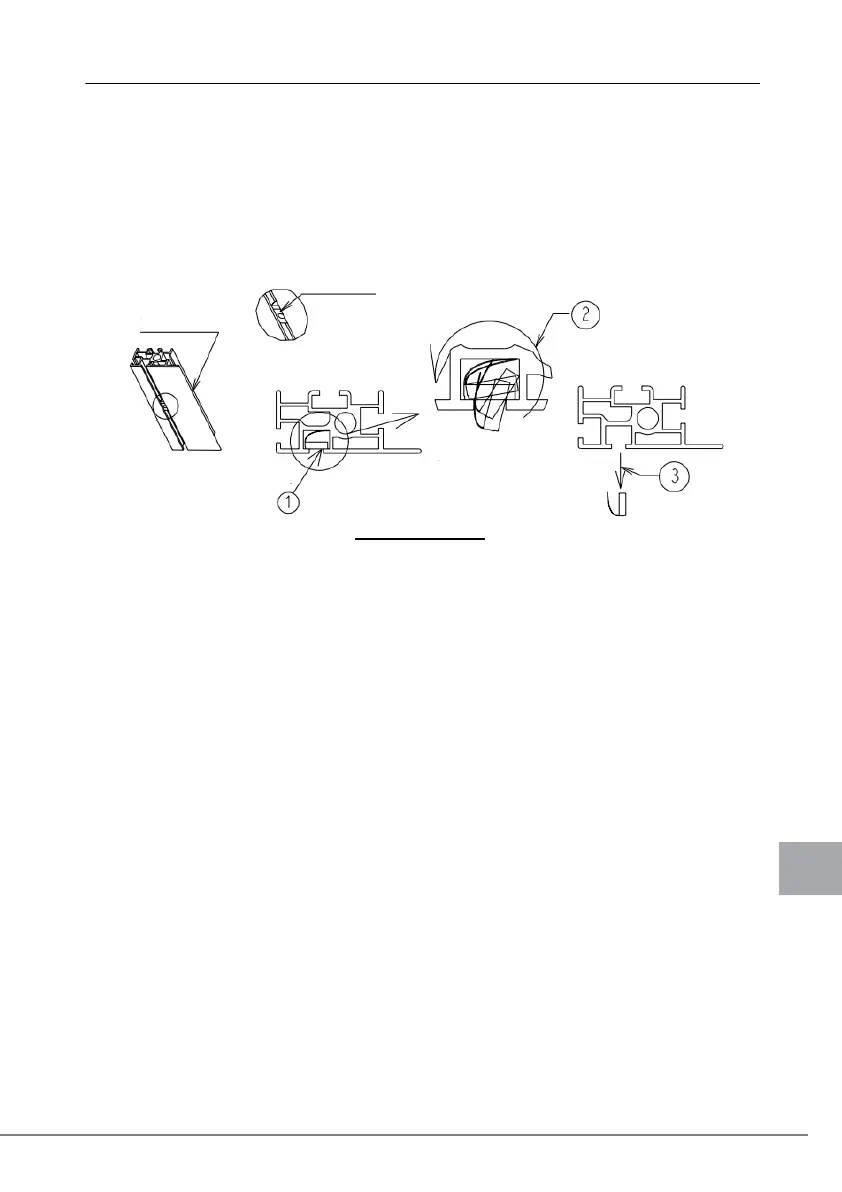

1 Push the core spring nut in the groove of the aluminum frame in direction
(1), and then rotate it in direction (2).
It is easier to rotate with the point of a pen or a small-tipped standard screwdriver.
2 Pull the core spring nut in direction (3) to remove it.
It is easier to remove with the point of a pen or a small-tipped standard screwdriver.
ࠕ࡞ࡒࡈࡓᢿ㕙
Aluminum
frame
Core
spring nut
Cross-section view
of aluminum frame
