4 Handling the Rack after Installation 135
E
2 Remove the brackets from the rack.
・ Remove the M6 screws to remove the upper and lower rack-side hinges.
・ Remove the M6 hexagon socket set screws to remove the bar nuts for the upper and lower
hinges.
・ Remove the upper and lower lock plates, and then remove the core spring nuts.
(For Models 2724, 2737, 2742, 2616, and 2624):
Remove the M6 screws to remove the upper and lower lock plates, and then remove the
M6 core spring nuts.
(For Model 2642):
Remove the M5 flat head screws to remove the upper and lower lock plates, and then
remove the M5 core spring nuts.
For information on the procedure for removing the core spring nuts, see "4.2 Installing and
Removing Core Spring Nuts".
Be careful not to lose the parts and screws removed here. They will be used later.
Note: Be careful because the bar nut for the hinge may fall out when the M6 hexagon socket
set screws are loosened.

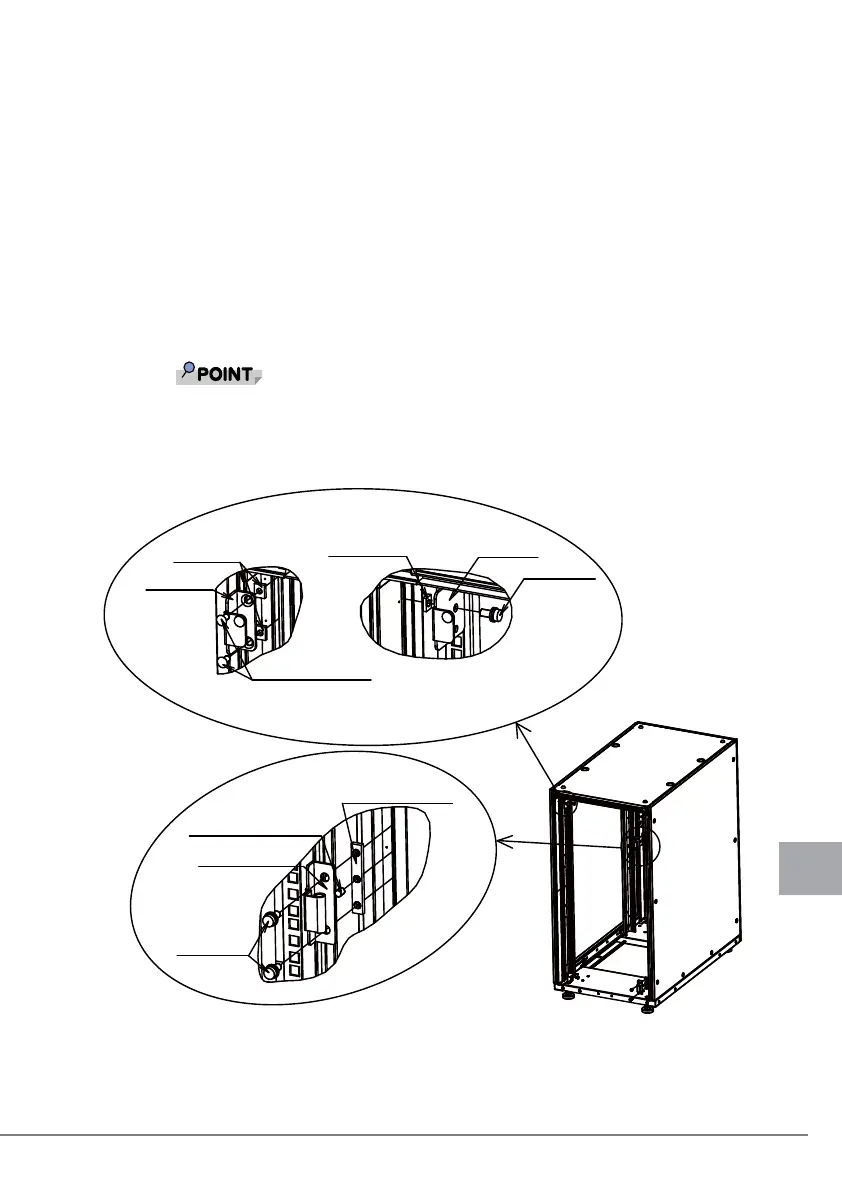

Model 2724/2737/2742
Model 2616/2624
M6 screw
Rack-side hinge
M6 hexagon socket
set screw
Bar nut for hinge
Model 2642
M5 flat head screws
Lock plate
M5 core
spring nuts
M6 core
spring nut
Lock plate
M6 screws
To Next Page
