3. Installation space

3-1. Models: AOYG72LRLA and AOYG90LRLA

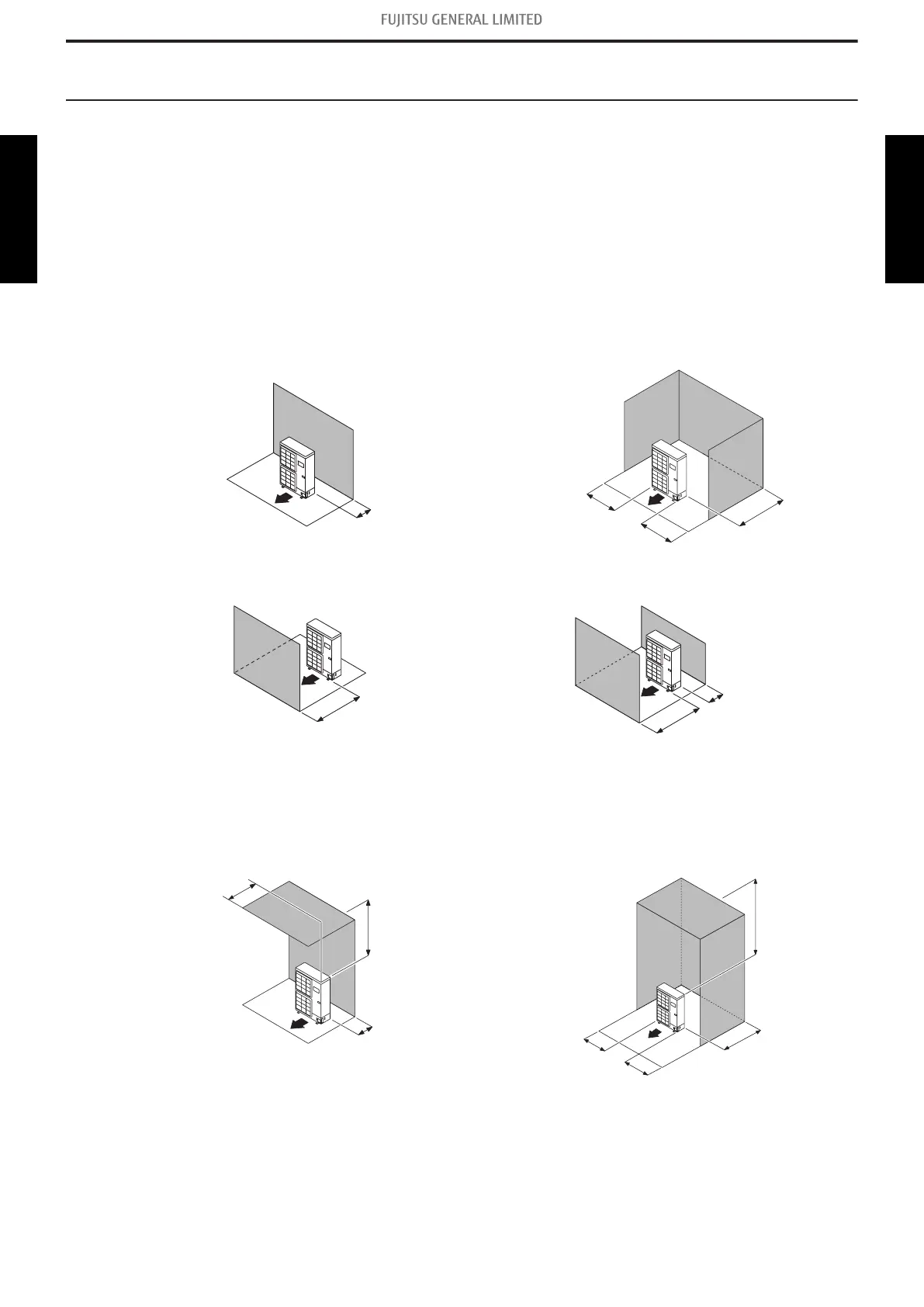

Space requirement

Provide sufficient installation space for product safety.

 Single outdoor unit installation

• When the upper space is open:

Unit: mm

When there are obstacles at the rear only. When there are obstacles at the rear and

sides.

100 or more

300 or

80 or

When there are obstacles at the front only. When there are obstacles at the front and

rear.

1,000 or more

100 or more

• When there is an obstruction in the upper space:

Unit: mm

When there are obstacles at the rear and

above.

When there are obstacles at the rear, sides,

and above.

100 or more

Max. 500

1,000 or more

1,500 or

80 or

100 or more

300 or

- 146 -

3-1. Models: AOYG72LRLA and AOYG90LRLA 3. Installation space

OUTDOOR UNIT

AOYG72-90LRLA

OUTDOOR UNIT

AOYG72-90LRLA
