Fujitsu AB G36LRTE Series User Manual

¢
Model: AUYG24LVLA (3-way air outlet)

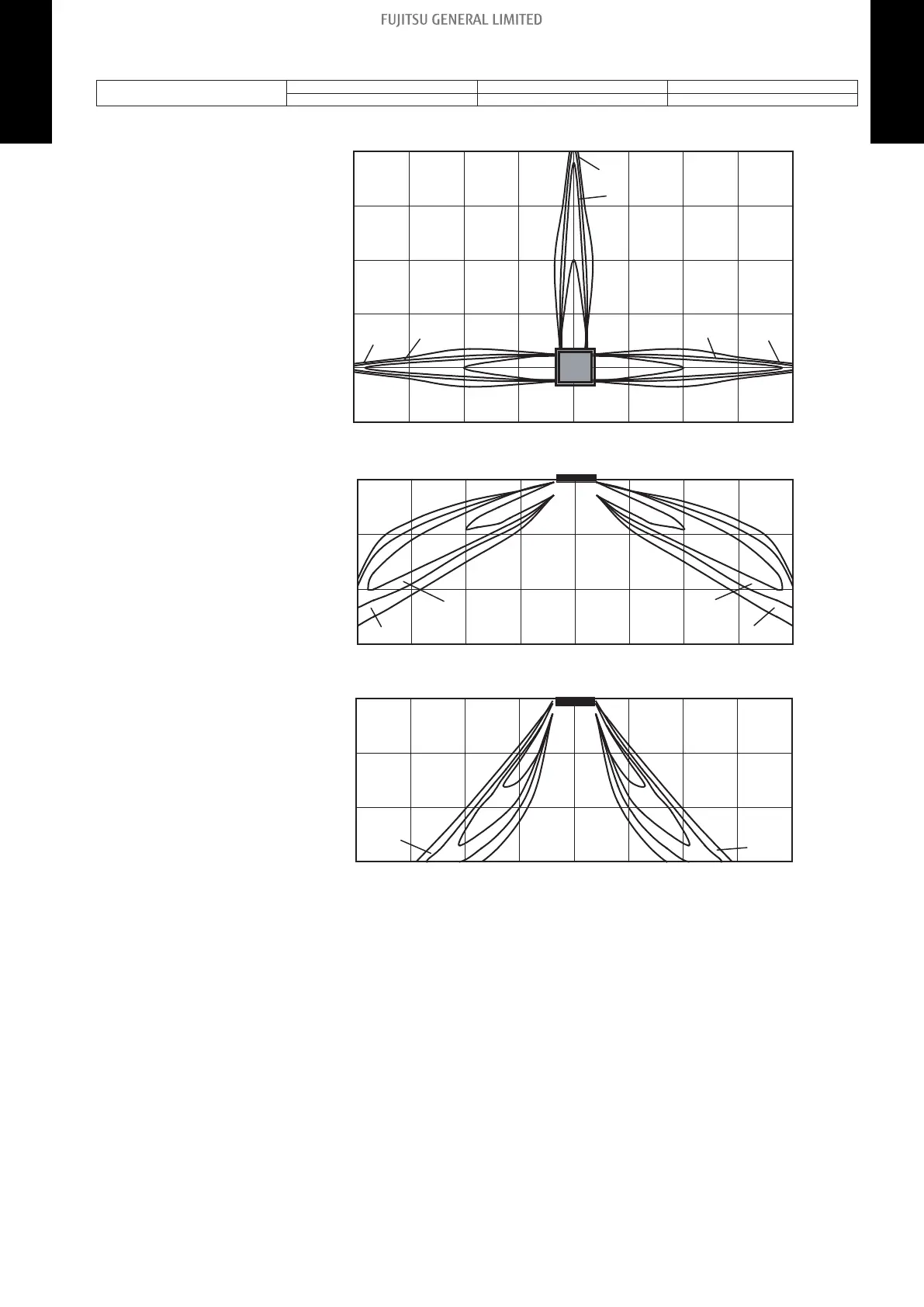

Measuring conditions
Fan speed Operation mode Ceiling mode
HIGH FAN STANDARD
Top view
Vertical airflow direction louver: Upward
4
3
2
1
0
Unit : m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.25
1
0.5
2
0.25
0.5
2
0.25
1
1
0.5
2
Side view
Vertical airflow direction louver: Upward
3
2
1
0
Unit : m/s(m)
(m)
4 3 2 1 0 1 2 3 4
1
1
2
2
0.25
0.5
0.25
0.5
Side view
Vertical airflow direction louver: Downward
3
2
1
0
Unit : m/s(m)
(m)
4 3 2 1 0 1 2 3 4
0.25
0.5
1
2
0.25
0.5
1
2
