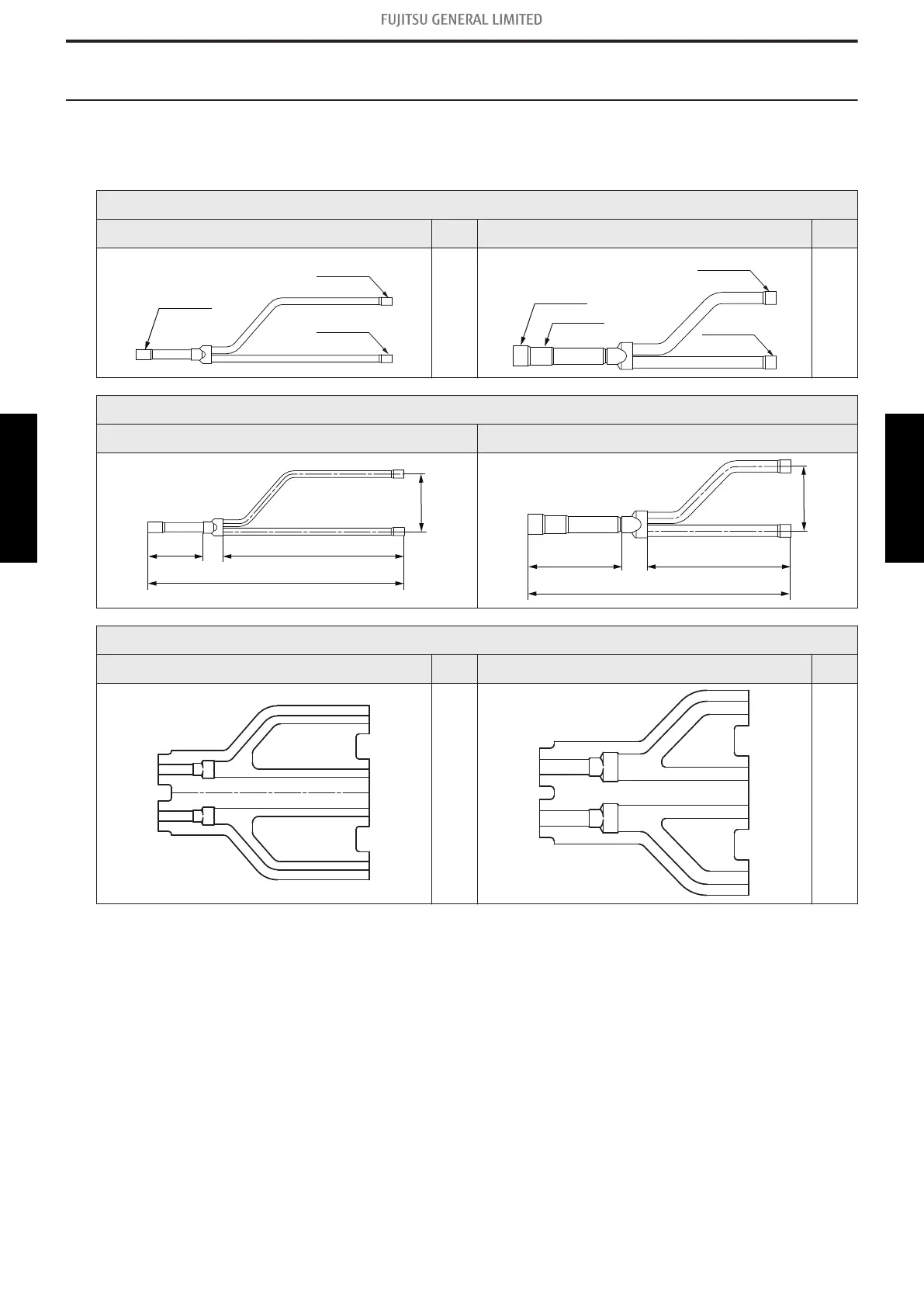

1. Branch pipes
1-1. Model: UTP-SX272A
Unit: mm
Port diameters
Liquid pipe Q’ty Gas pipe Q’ty
Ø12.70
Ø9.52
Ø9.52
1
Ø15.88
Ø25.40
Ø22.22
Ø15.88
1
Dimensions
Liquid pipe Gas pipe
357
77
252
80
366
131
200
90
Heat insulation cover
Liquid pipe Q’ty Gas pipe Q’ty
1 1
- 326 -
1-1. Model: UTP-SX272A 1. Branch pipes
OPTIONAL
PARTS
OPTIONAL PARTS
