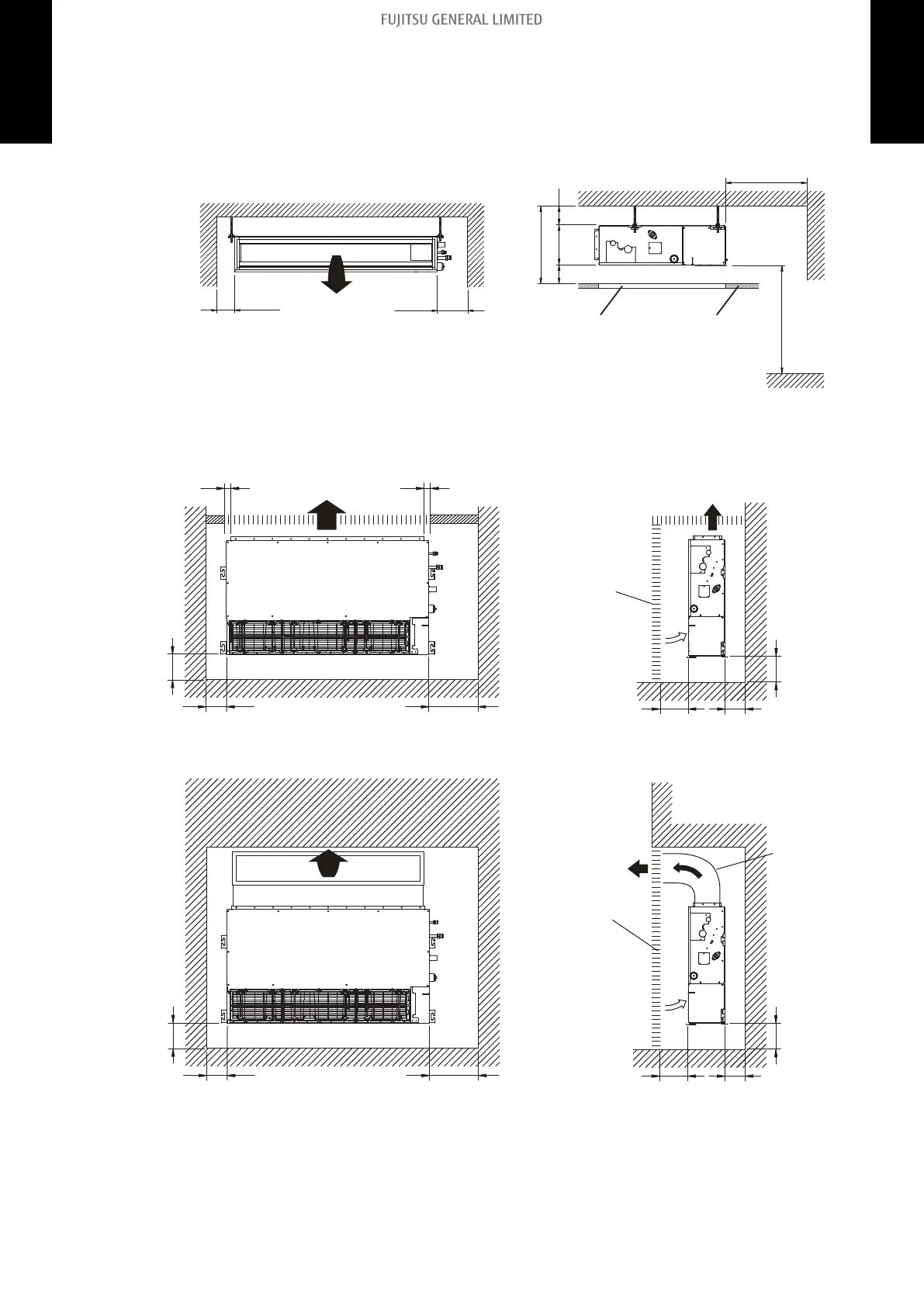

Installation space requirement
Provide sufficient installation space for product safety.
In ceiling-concealed installations:
Left
side
Strong and durable ceiling
Indoor unit
Right
side
100
or more
300
or more
Service access Ceiling
2,500 or more
(When no ceiling)
Floor
240 or more
20 or more
20 or more
300 or more
Unit: mm
In wall-concealed installations:
10
or less
10
or less
Left side
Strong and
durable floor
Right side
(Pipe side)
Grille
Inlet air
Strong and
durable floor
150
or more
150
or more
300
or more
100
or more
20
or more
20
or more
Unit: mm
Left side
Strong and
durable floor
Right side
(Pipe side)
Duct
Grille
Inlet air
Strong and
durable floor
150
or more
150
or more
100
or more
300
or more
20
or more
20
or more
- 15 -
