Specifications

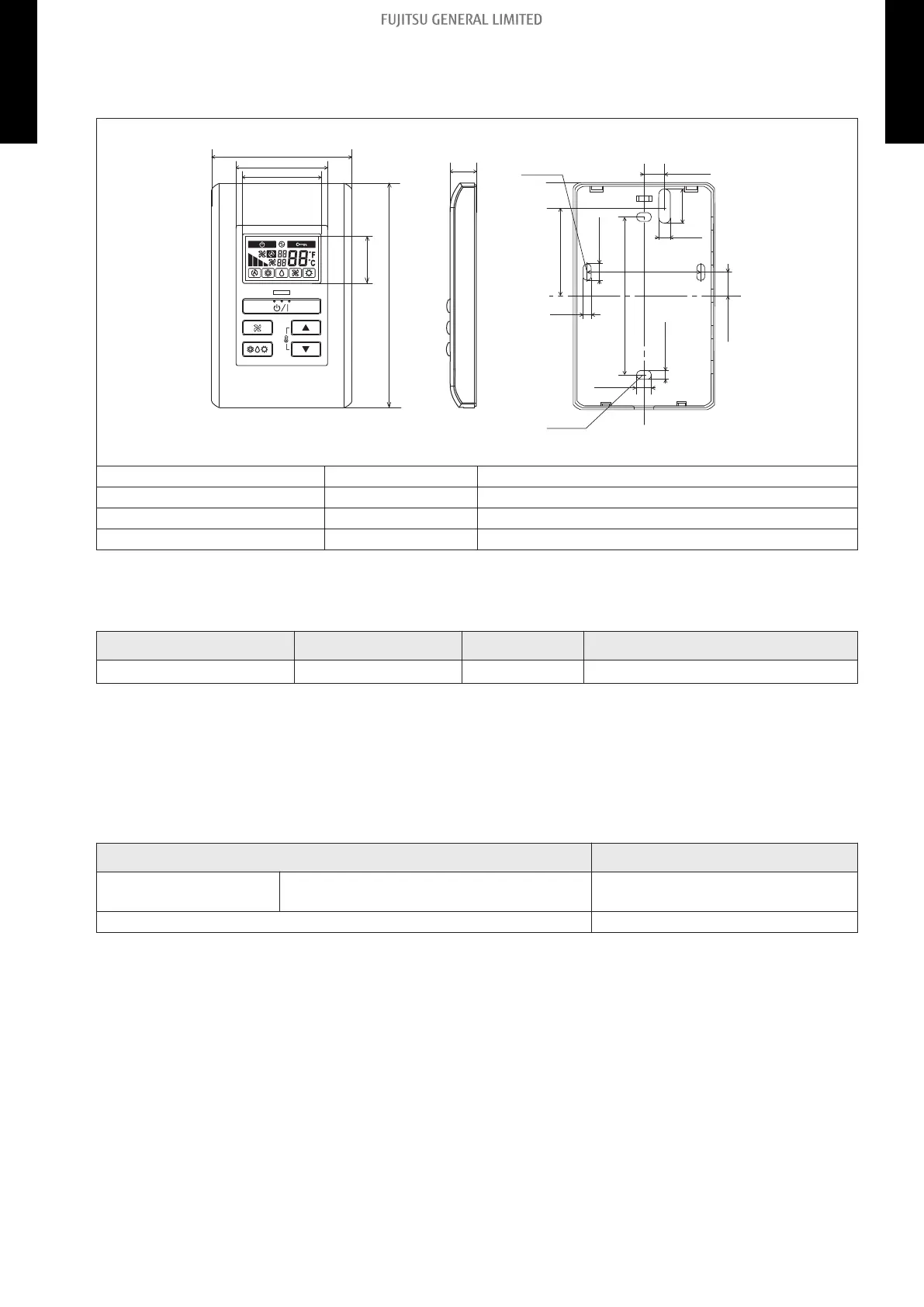

Dimensions and other specifications on the wired remote controller are as follows.
Unit: in (mm)
4-3/4 (120)
2-15/16 (75)
1-15/16 (49)
1-9/16 (39)
15/16 (23.5)
9/16 (14)
3/16 (4)
7/16 (11)
3/16 (4.5)
1/2 (12.5)
hole x 2
hole x 2
5/16 (8)
2-3/8 (60)
1/4 (6)
11/16 (18)
3/8 (9)
1-7/8 (47.5)
3-5/16 (83.5)
Front View Side View Rear View
Size (H × W × D) in (mm) 4-3/4 × 2-15/16 × 9/16 (120 × 75 × 14)
Weight oz (g) 3.2 (90)
Cable length (accessory) ft (m) 33 (10)
Power V 12
 Wiring specifications
Use Size Wire type Remarks
Remote controller cable
22 AWG (0.33 mm
2
)
Polar 3 core Use sheathed PVC cable.
¢
Installation
 Connection pattern
NOTE: Connection pattern is different according to type of Indoor unit.
Connectable indoor unit Connection pattern
Wall mounted type
ASU7RLF1, ASU9RLF1, ASU12RLF1,
ASU15RLF1
Pattern A
Floor type Pattern B
- 178 -
15-7. Simple remote controller (UTY-RSNUM: Optional part) 15. Remote controller
MULTI-SPLIT TYPE
5-unit type
MULTI-SPLIT TYPE
5-unit type
