Fujitsu AGU12RLF Design & Technical Manual

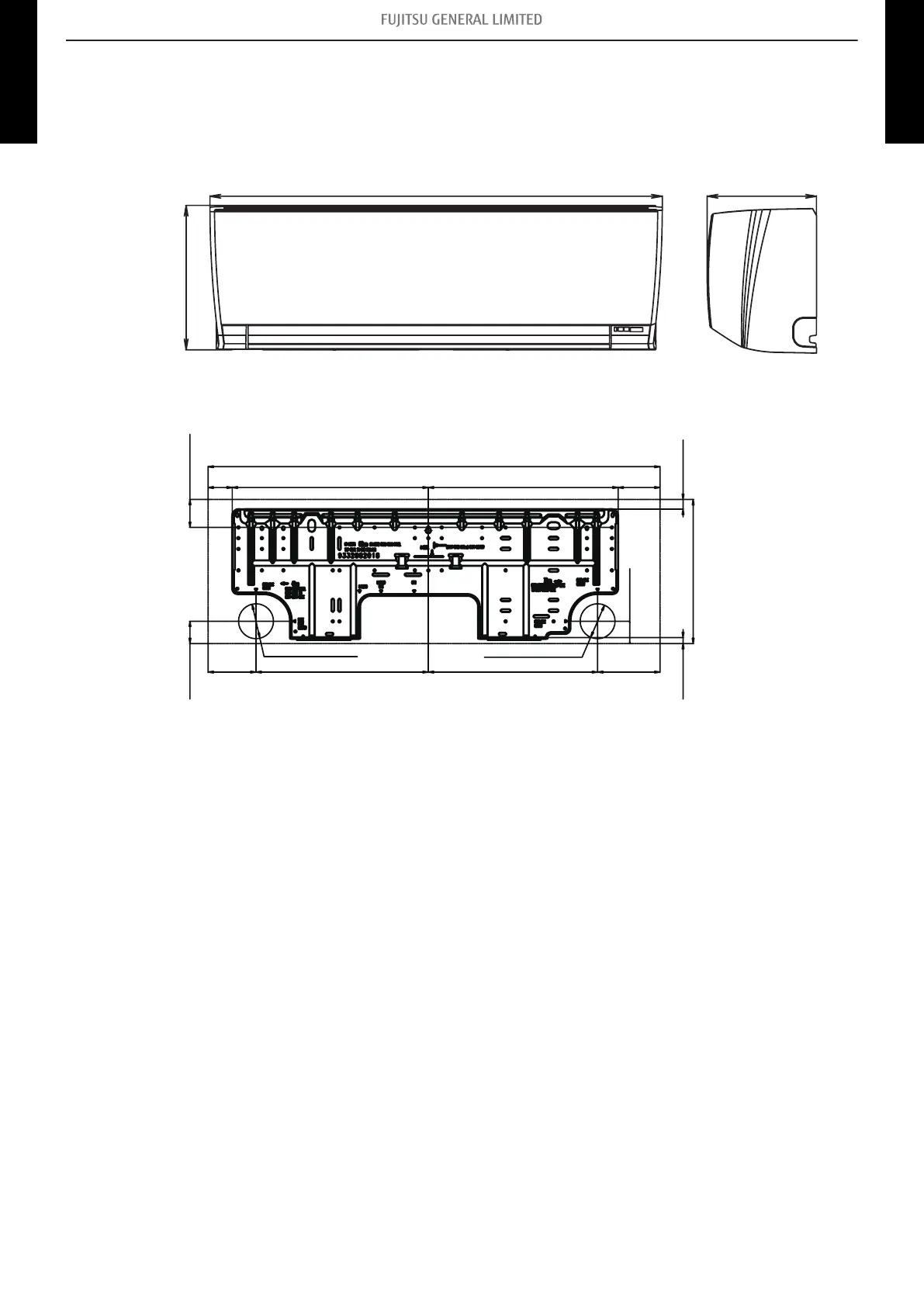

3-3. Wall mounted type
¢
Models: ASU7RLF1, ASU9RLF1, ASU12RLF1, and ASU15RLF1
33-1/16 (840) 8 (203)
10-9/16 (268)
(33-1/16 (840))
1-3/4 (45)
2-1/16 (52)
14-5/16 (364)
Ø2-9/16 (Ø65)
for pipe inlet
12-5/8 (321)
3-7/16
(88)
Ø2-9/16 (Ø65)
for pipe inlet
12-3/8 (315)
4-9/16
(116)
1-5/8(41)
10-9/16 (268)
13-7/8 (353)
3-1/16 (78)
11/16 (18)7/16 (11)
1-5/8 (41)
Unit: in (mm)
- 20 -
3-3. Wall mounted type 3. Dimensions
MULTI-SPLIT TYPE 5-unit type
MULTI-SPLIT TYPE 5-unit type

Fujitsu AGU12RLF Specifications

General

Brand	Fujitsu
Model	AGU12RLF
Category	Air Conditioner
Language	English
