Fujitsu AGU12RLF Design & Technical Manual

¢

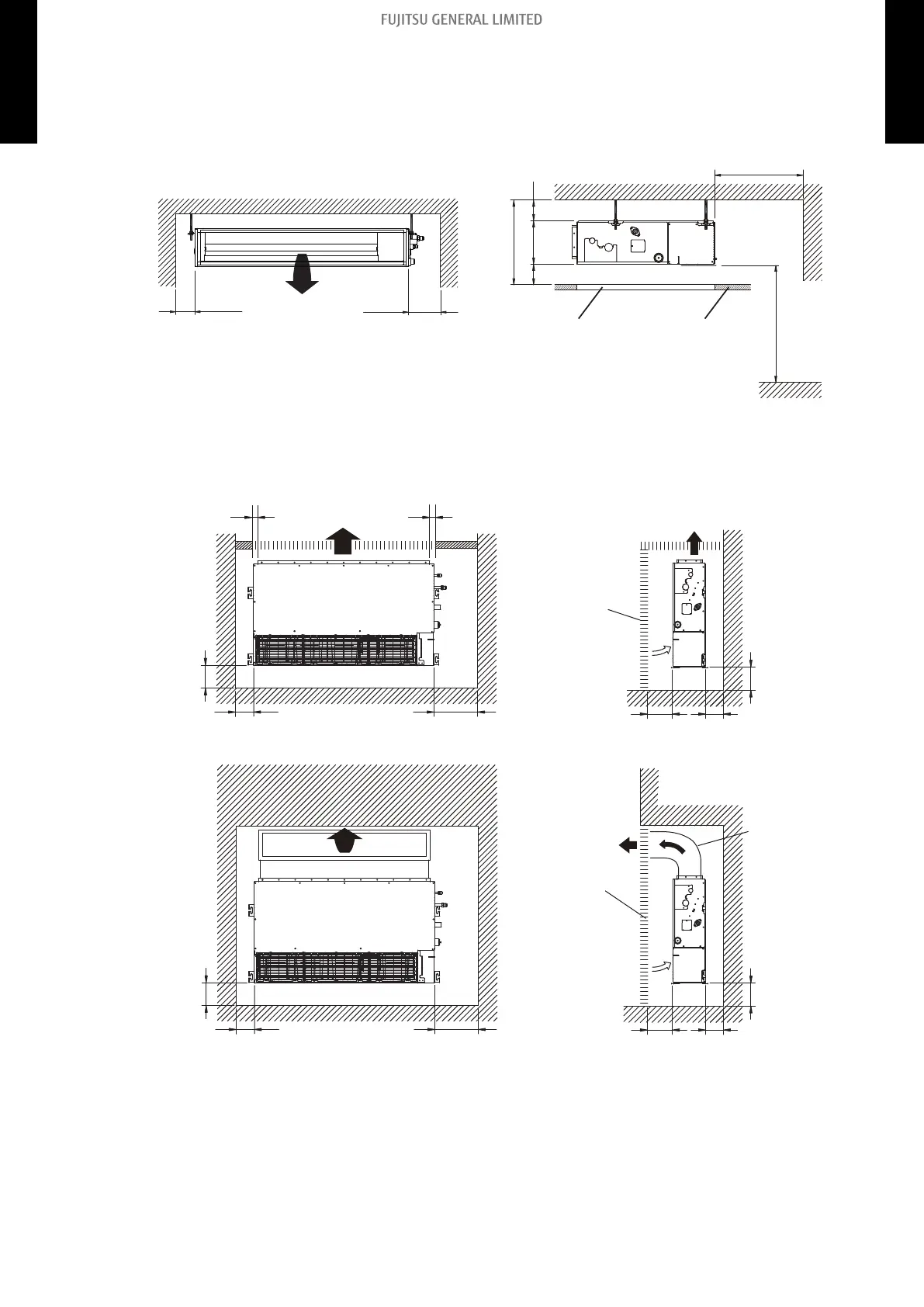

Installation space requirement
Provide sufficient installation space for product safety.
In ceiling-concealed installations:
Left
side
Strong and durable ceiling
Right
side
6 (150)
or more
16 (400)
or more
Service access Ceiling
99 (2,500) or more
(When no ceiling)
Floor
10 (240) or more
1 (20) or more
1 (20) or more
12 (300) or more
Unit: in (mm)
Indoor unit
In wall-concealed installations:
1 (10)
or less
1 (10)
or less
Left side
Strong and
durable floor
Right side
(PIPE side)
Grille
Inlet air
Strong and
durable floor
6
(150)
or more
4 (100)
or more
12 (300)
or more
1 (20)
or more
1 (20)
or more
6 (150)
or more
Unit: in (mm)
Left side
Strong and
durable floor
Right side
(PIPE side)
Duct
Grille
Inlet air
Strong and
durable floor
6
(150)
or more
4 (100)
or more
12 (300)
or more
1 (20)
or more
1 (20)
or more
6 (150)
or more
- 18 -
3-2. Slim duct type 3. Dimensions
MULTI-SPLIT TYPE 5-unit type
MULTI-SPLIT TYPE 5-unit type

Fujitsu AGU12RLF Specifications

General

Power Supply	220-240V, 50Hz
Refrigerant	R410A
Indoor Unit Dimensions (WxHxD)	790 x 275 x 202 mm
Outdoor Unit Dimensions (WxHxD)	660 x 530 x 240 mm
Indoor Unit Weight	9 kg
Energy Efficiency Ratio (EER)	11 BTU/W
Indoor Unit Noise Level	21 dB
Cooling Capacity	12000 BTU/h
