Ports and Operating Elements
Ports and Operating Elements
This chapter presents the individual hardwa re compone nts of your AMILO Mini. It gives
an overview of the disp lays and connections of the device. Please familiarise yourself
with these components before you start to work with the device.
14
1
3
3
1
6
10
16
5
7
11
2
17
18
4
4
12
9
19
15
8

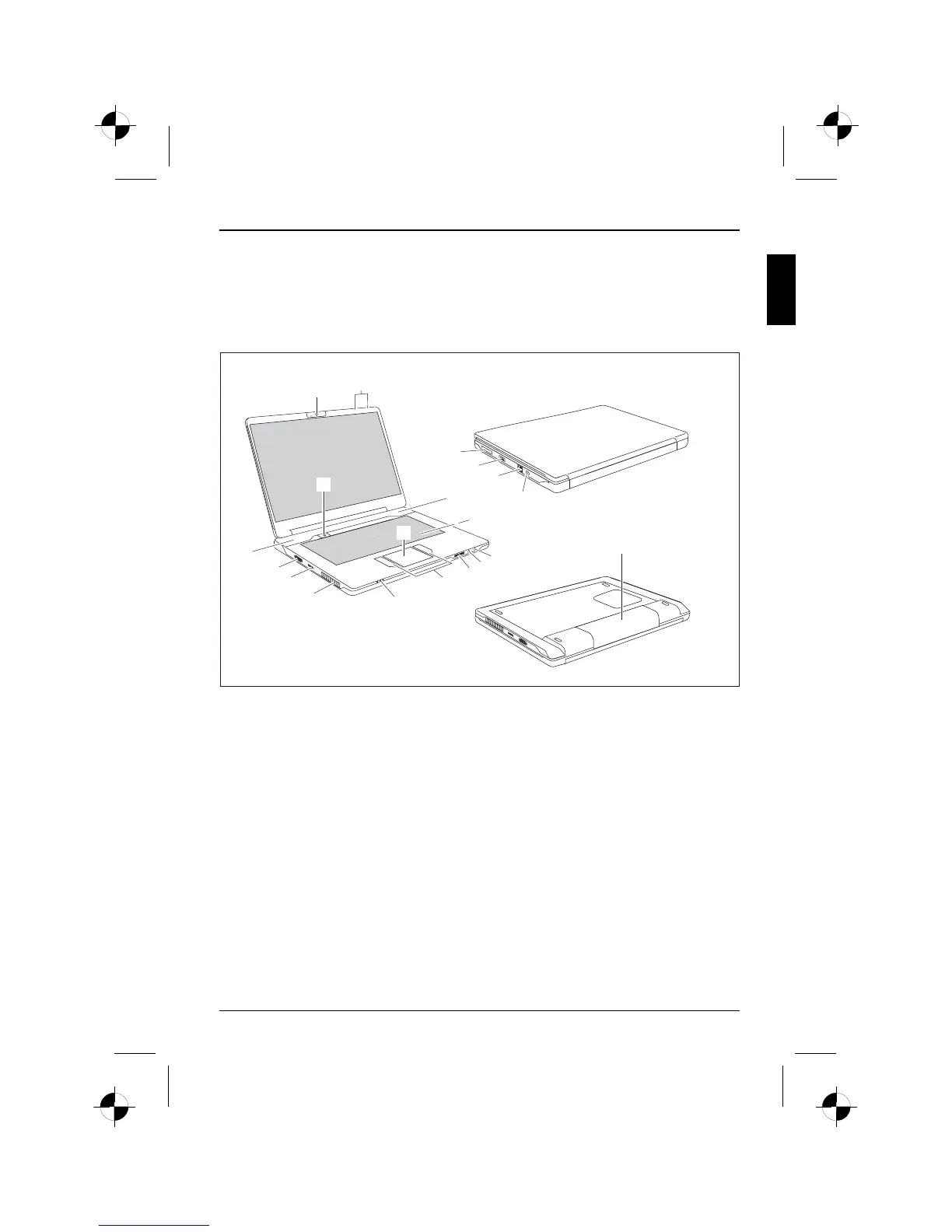

1 = Webcam
2 = Microphones
3 = ON/OFF switch
4 = Loudspeakers
5 = Touchpad
6 = Keyboard
7 = Microphone / Line in port
8 = Headphone port
9 = Multi-format card reader
10 = Touchpad buttons
11 = Status indic a tors
12 = Ventilation slots
13 = USB port
14 = Monitor port (VGA)
15 = ExpressCard slot
16 = USB port
17 = LAN port
18 = DC input connector (DC IN)
19 = Battery
