Fujitsu AOYG09KHCAN Design & Technical Manual

3. Installation space
3-1. Models: AOYG09KHCAN, AOYG12KHCAN, and
AOYG14KHCAN
¢

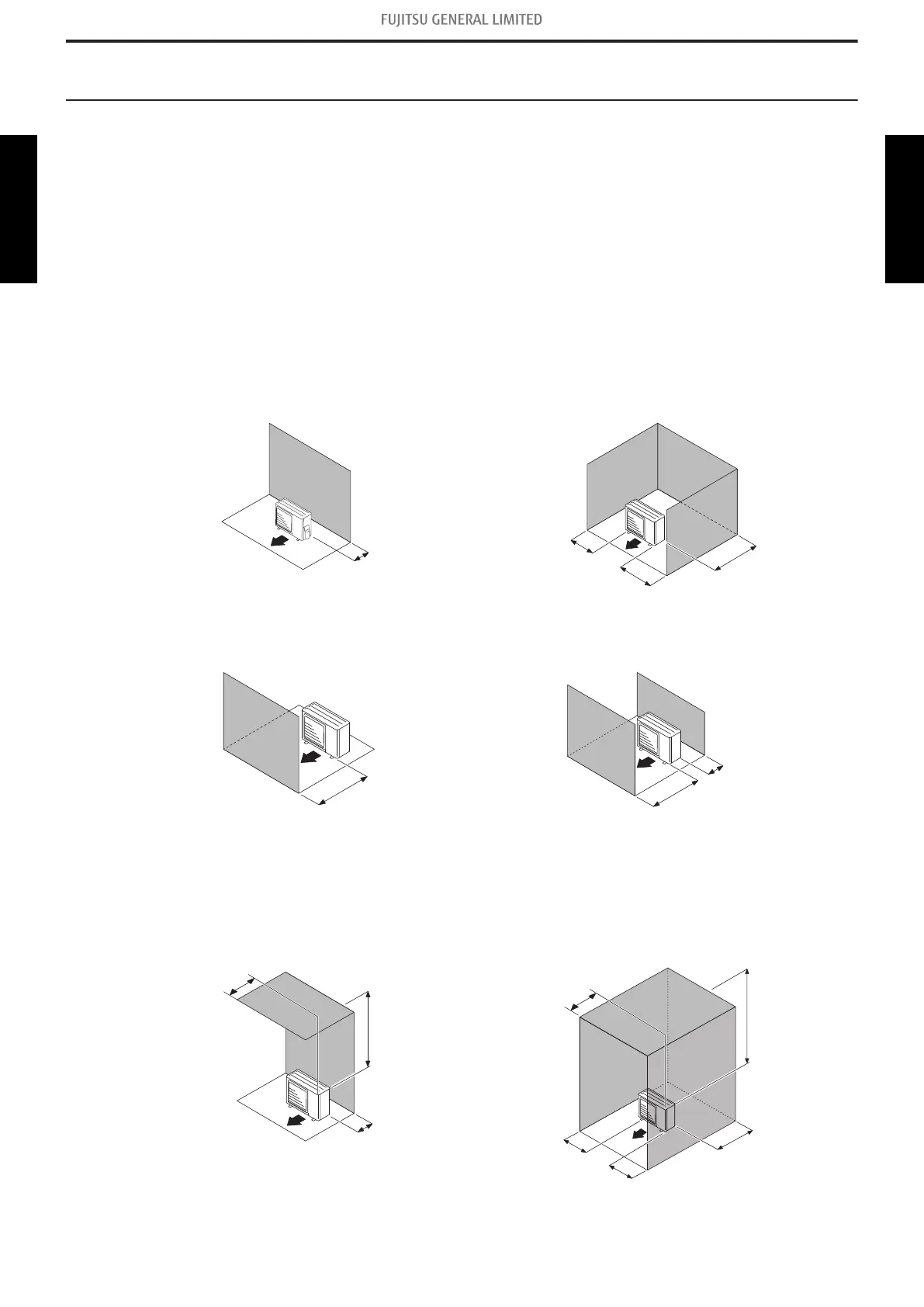

Space requirement
Provide sufficient installation space for product safety.
 Single outdoor unit installation
• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
100 or more
250 or more
100 or more
100 or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
600 or more
600 or more
100 or more
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides,
and above.
100 or more
Max. 200
600 or more
600 or more
100 or more
250 or more
100 or more
Max. 200
- 36 -
3-1. Models: AOYG09KHCAN, AOYG12KHCAN, and AOYG14KHCAN 3. Installation space
OUTDOOR UNIT AOYG09-14KHCAN OUTDOOR UNIT
AOYG09-14KHCAN
