Fujitsu AOYG09KHCAN - ¢ Control box

¢
Model: ASYG14KHCA
 Cooling
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
HIGH
QUIET
 Heating
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
HIGH
QUIET
6-2. Sound level check point
Microphone
Microphone
1 m
0.8 m
- 15 -

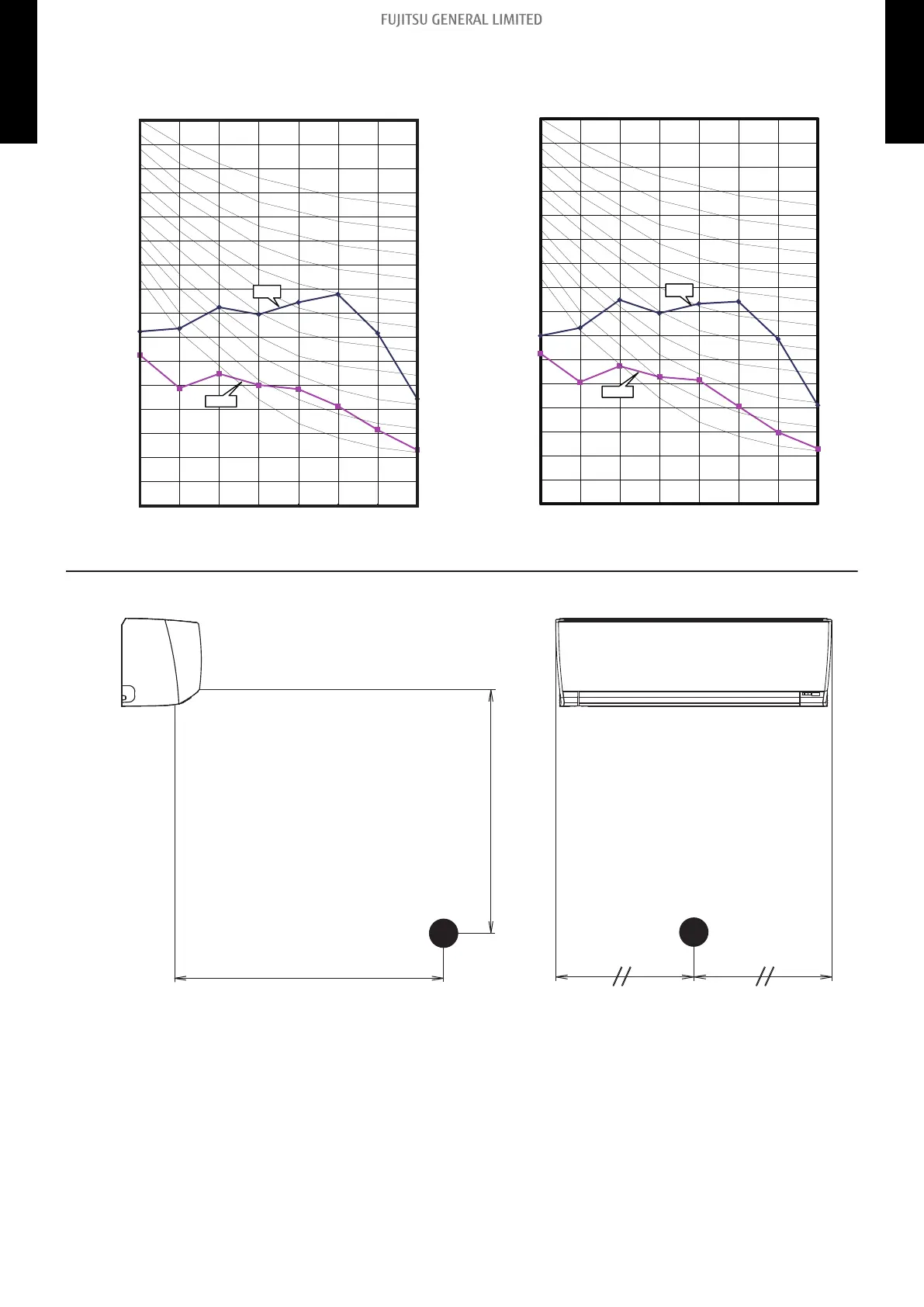

6-1. Noise level curve 6. Operation noise (sound pressure)
WALL MOUNTED ASYG09-14KHCA WALL MOUNTED ASYG09-14KHCA
