Settings will not be changed if invalid numbers or setting values are selected.
After the power is turned on, perform the "FUNCTION SETTING" according to
the installation conditions using the remote controller.
This procedure changes to the function settings used to control the indoor unit
according to the installation conditions.
Incorrect settings can cause the indoor unit malfunction.

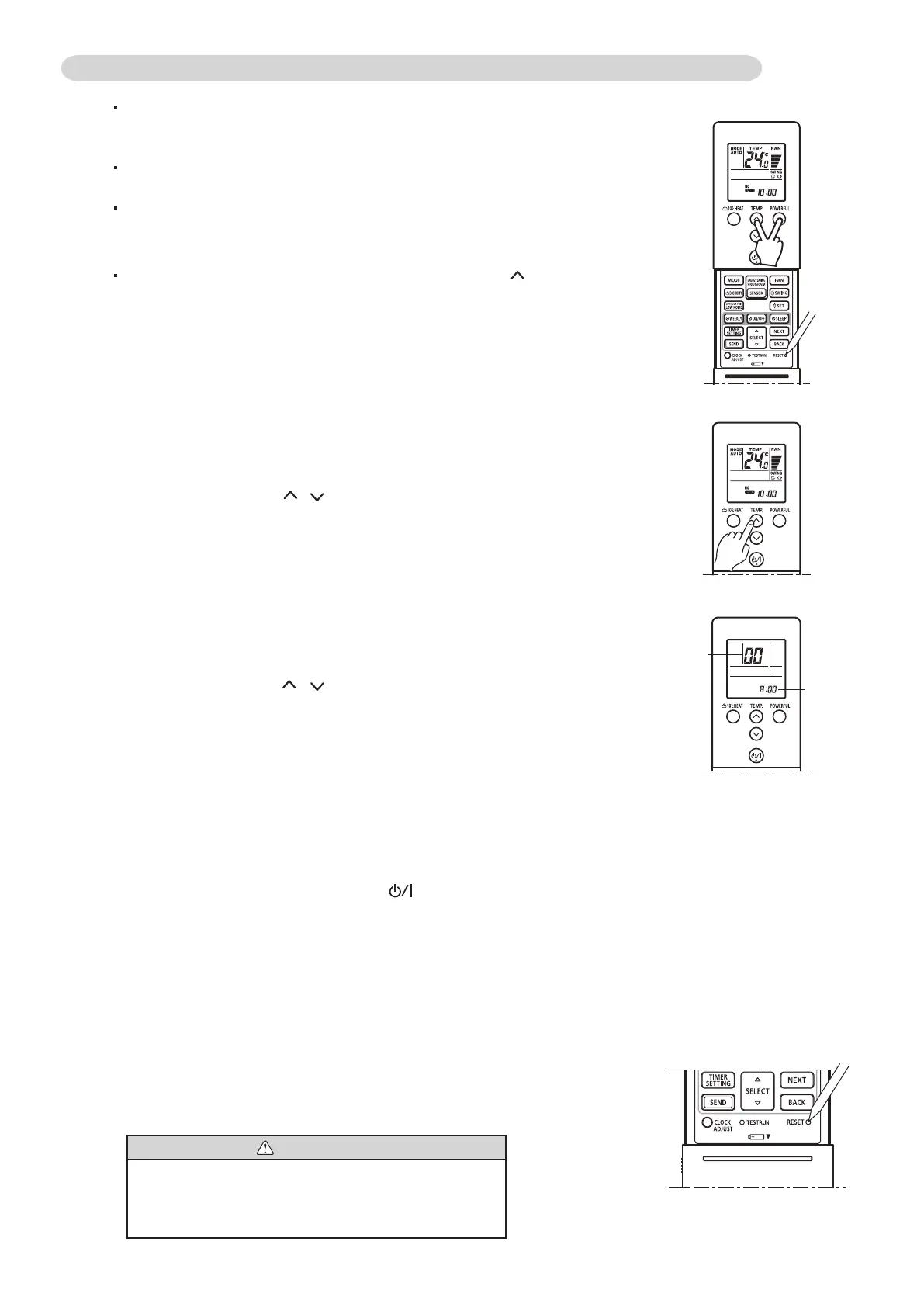

Entering the Function Setting Mode
While pressing the POWERFUL button and SET TEMP.( ) button simultaneously,
press the RESET button to enter the function setting mode.
3-1-2 Procedures to change the Function Setting for wireless RC
(2) Press the POWERFUL button to proceed to setting the value.
(Press the POWERFUL button again to return to the function number
selection.)
Selecting the Function Number and Setting Value
(5) Next, please press the START/STOP( ) button.
Please confirm that the beep sounds.
(6) Press the RESET button to cancel the fun
ction setting mode.
(7) After completing the FUNCTION SETTING, be sure to turn off the
power and turn it on again.
CAUTION
After turning off the power, wait 10 seconds or more
before turning on it again.
The FUNCTION SETTING doesn't become active unless
the power is turned off then on again.
(3) Press the SET TEMP.( ) ( ) buttons to select the setting value.
(Press the 10°C HEAT button to switch between the left and right digits.)
Function
Number
(1) Press the SET TEMP.( ) ( ) buttons to select the function number.
(Press the 10°C HEAT button to switch between the left and right digits.)
(4) Press the MODE button, in the order listed to confirm the setting.
Please confirm that the beep sounds.
Setting Value

Fujitsu AOYG09KMTA Specifications

General

Type	Air conditioner outdoor unit
Ionizer	-
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Air conditioner functions	Cooling, Heating
Refrigerating medium weight	600 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	290 mm
Outdoor unit width	663 mm
Outdoor unit height	541 mm
Outdoor unit weight	23000 g
Outdoor units quantity	1
Outdoor unit noise level	61 dB
Cooling airflow (outdoor unit)	750 m³/h
Outdoor unit sound power level	46 dB
