2-1-2 WIRED REMOTE CONTROLLER DISPLAY (OPTION)
When " Er " in Temperature Display is displayed, inspection of the air conditioning system is necessary.
Please consult authorized service personnel.

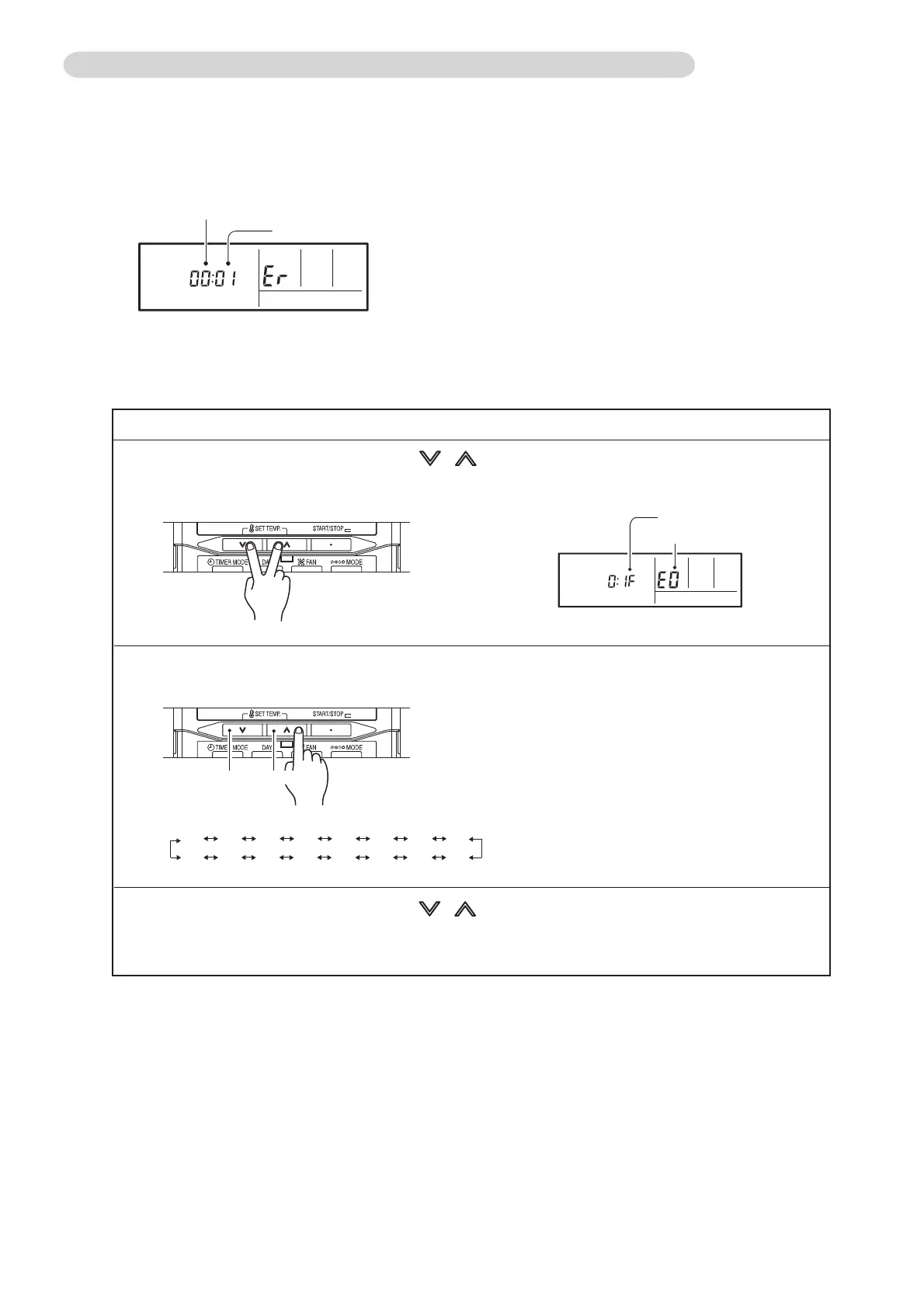

1. SELF - DIAGNOSIS
SU MOTU WETH FR SA
Unit number (usually 0)
Error code
ex. Self-diagnosis check
2. ERROR CODE HISTORY DISPLAY
Up to 16 memorized error codes may be displayed for the indoor unit connected to the remote controller.
1. Stop the air conditioner operation.
2. Press the SET TEMPERATURE buttons , simultaneously for 3 seconds
or more to start the self-diagnosis.
4. Press the SET TEMPERATURE buttons , simultaneously for 3 seconds or more
or there is no key input for 60 seconds to stop the display.
3. Press the SET TEMPERATURE button to select the error history number.
SU MO TU WETH FR SA
Error code
Error history number
0 1 2 3 4 5 6 7
F E d c b A 9 8
ı
ı
Lower
Raise
For UTY-RNN*M

Fujitsu AOYG09KMTA Specifications

General

Type	Air conditioner outdoor unit
Ionizer	-
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.5 mm
Hose length (max)	15 m
Inverter technology	Yes
Liquid hose diameter	6.35 mm
Refrigerating medium	R32
Air conditioner functions	Cooling, Heating
Refrigerating medium weight	600 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	290 mm
Outdoor unit width	663 mm
Outdoor unit height	541 mm
Outdoor unit weight	23000 g
Outdoor units quantity	1
Outdoor unit noise level	61 dB
Cooling airflow (outdoor unit)	750 m³/h
Outdoor unit sound power level	46 dB
