54

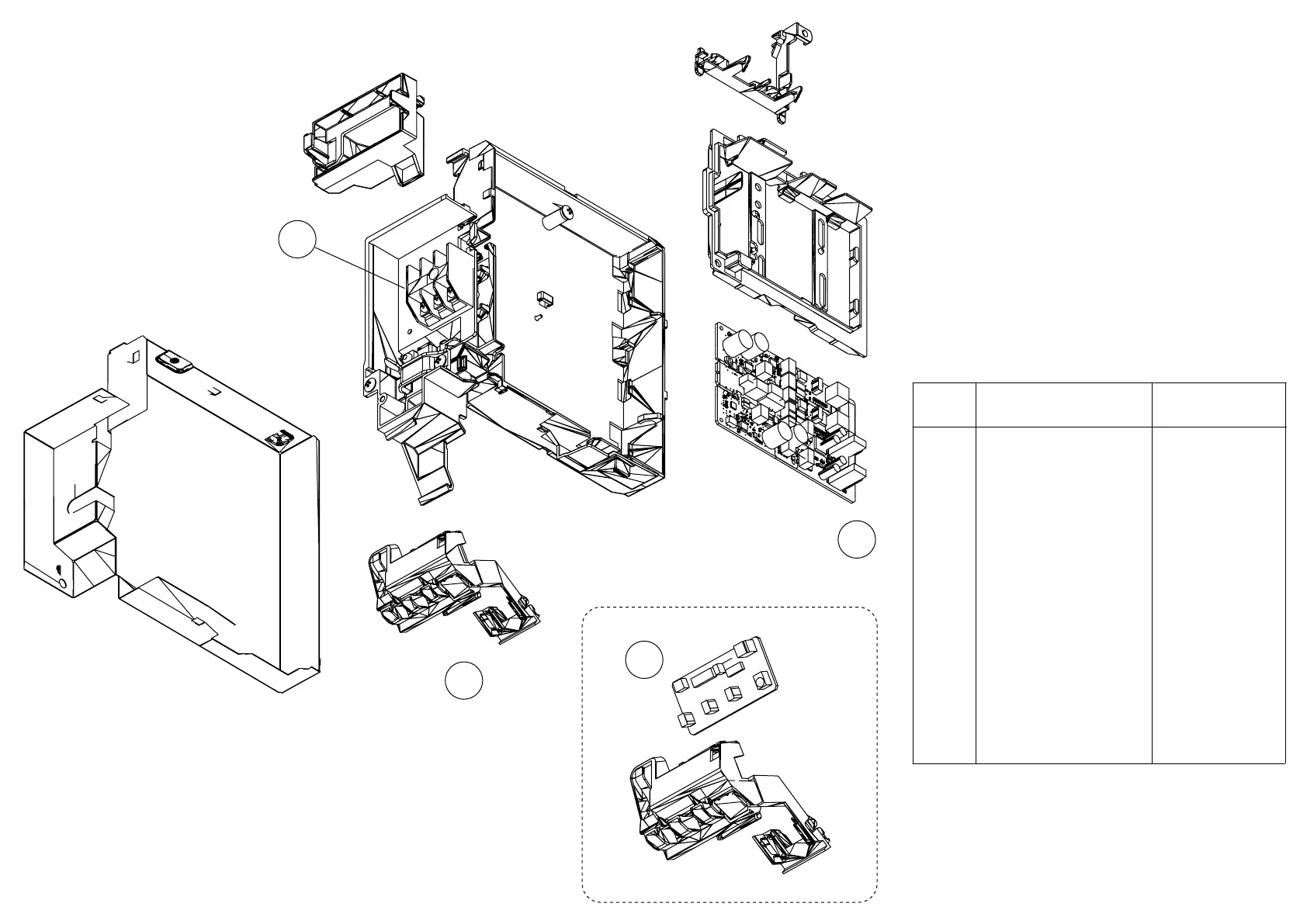

INDOOR UNIT
ASYG07KMTA
ASYG09KMTA
ASYG12KMTA
ASYG14KMTA
Control box
18
Terminal
Display case
assy
990036905752
Control box
Main PCB (ASYG07)
971036814151
Main PCB (ASYG09)
971036815851
Ref. Description Part number
53
Box shield
Display assy 9710858024
54 Indicator PCB
Wi-Fi holder
PWB holder A
PWB holder B
9710786020
2018.03.02
51
53
52
Main PCB (ASYG12)
971036816551
Main PCB (ASYG14)
971036817251
