Fujitsu AOYG09KMTA - Page 29

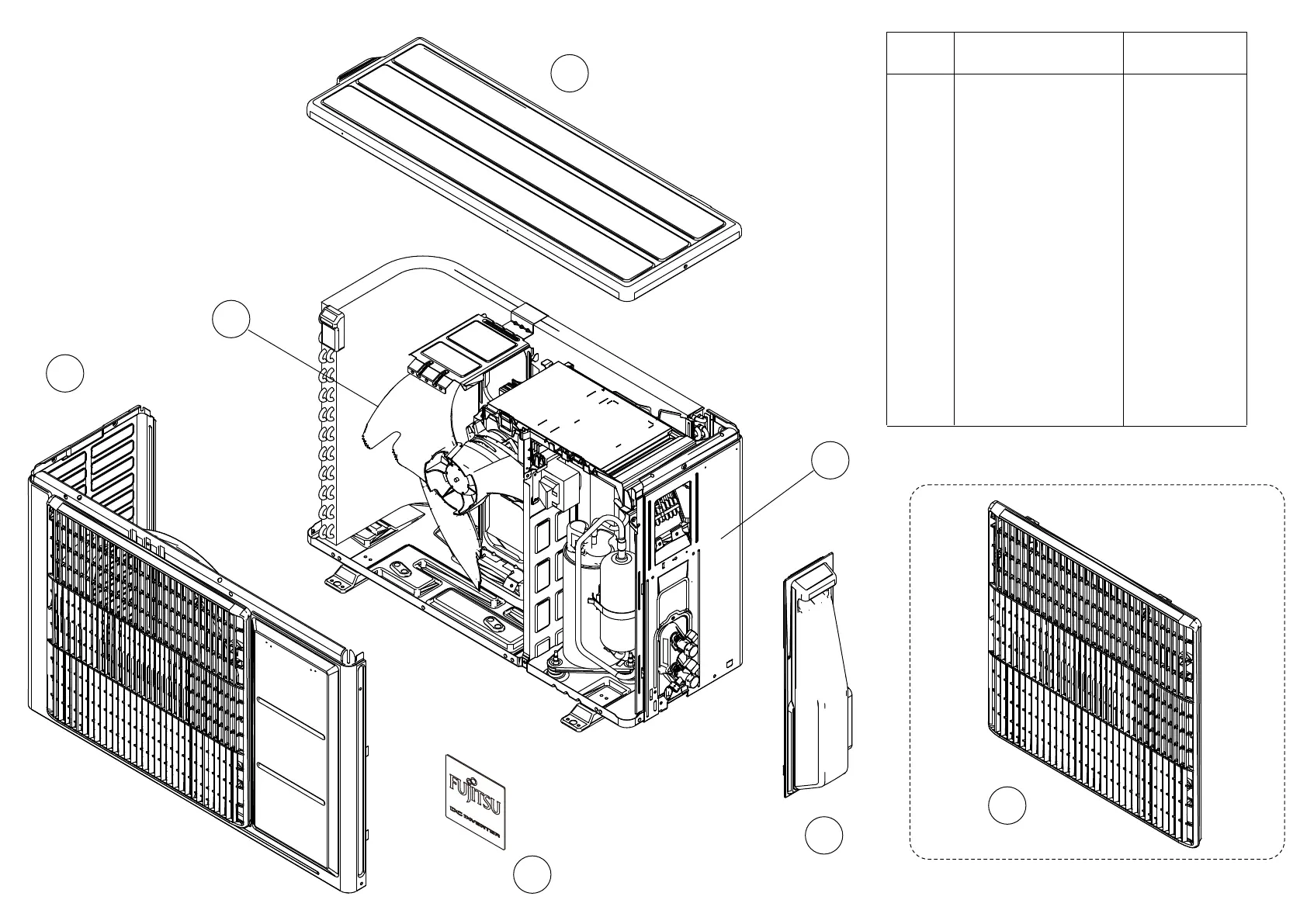

OUTDOOR UNIT
AOYG14KMTA
2018.01.24 28
12 Front panel assy 9322555014
11 Top panel assy 9322556028
14 Emblem 9319151007
13 Blow grille 9322135001
16 Cabinet right assy 9322552020
15 Switch cover assy 9322570000
Ref. Description Part number
17 Propeller fan 9322136008
16
15
13
11
17
12
14
