OUTDOOR UNIT
AOYG12-54LB
3-3. Models: AOYG45LBTA and AOYG54LBTA

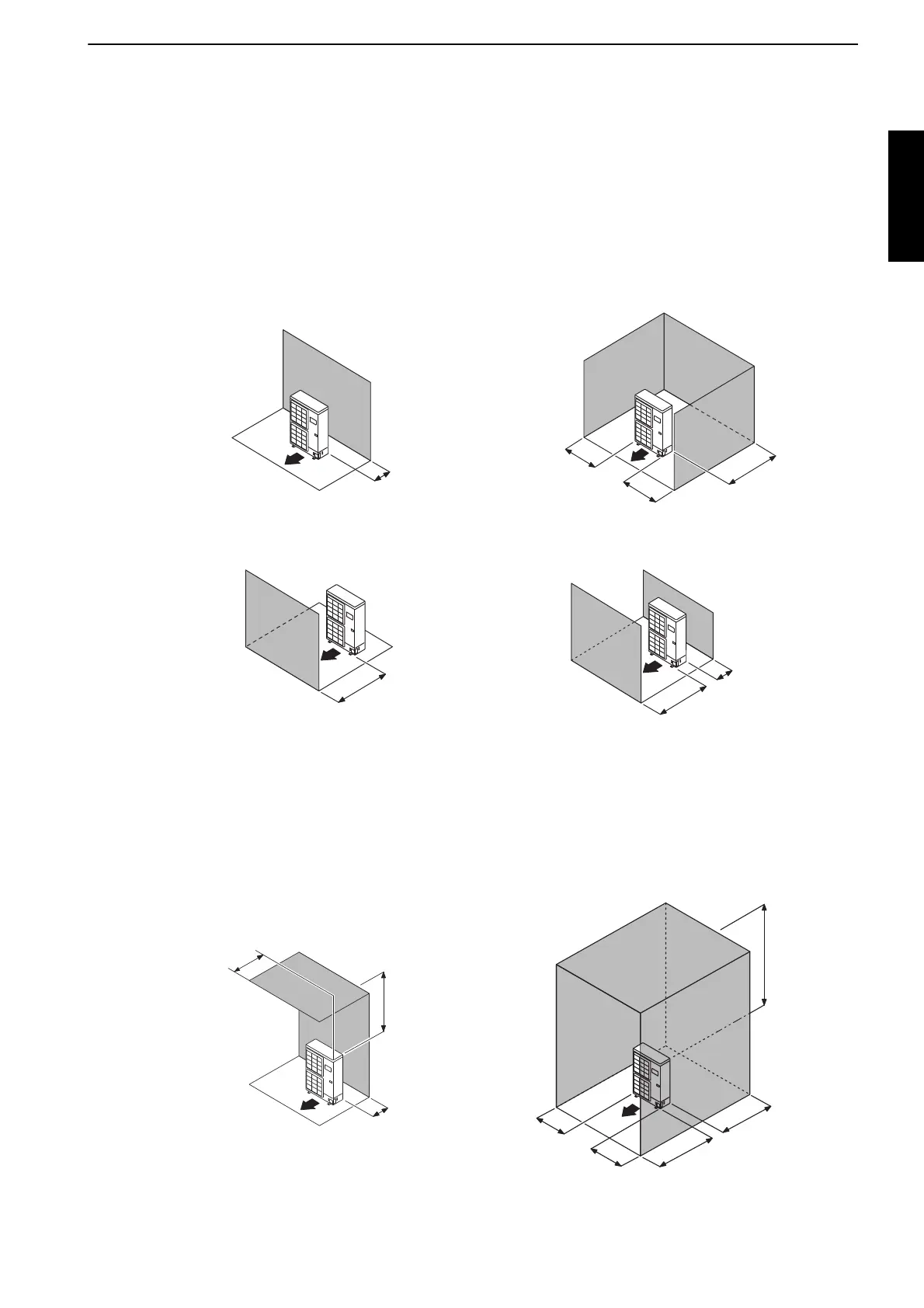

Space requirement
Provide sufficient installation space for product safety.
Single outdoor unit installation
• When the upper space is open:
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and sides.
When there are obstacles at the front only. When there are obstacles at the front and rear.
Unit: mm
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides, and
above.
200 or more
200 or more
300 or more
1000 or more
300 or more
Max. 500
1,000 or more
Max. 500
500 or more
250 or more
250 or more
1,500 or more
