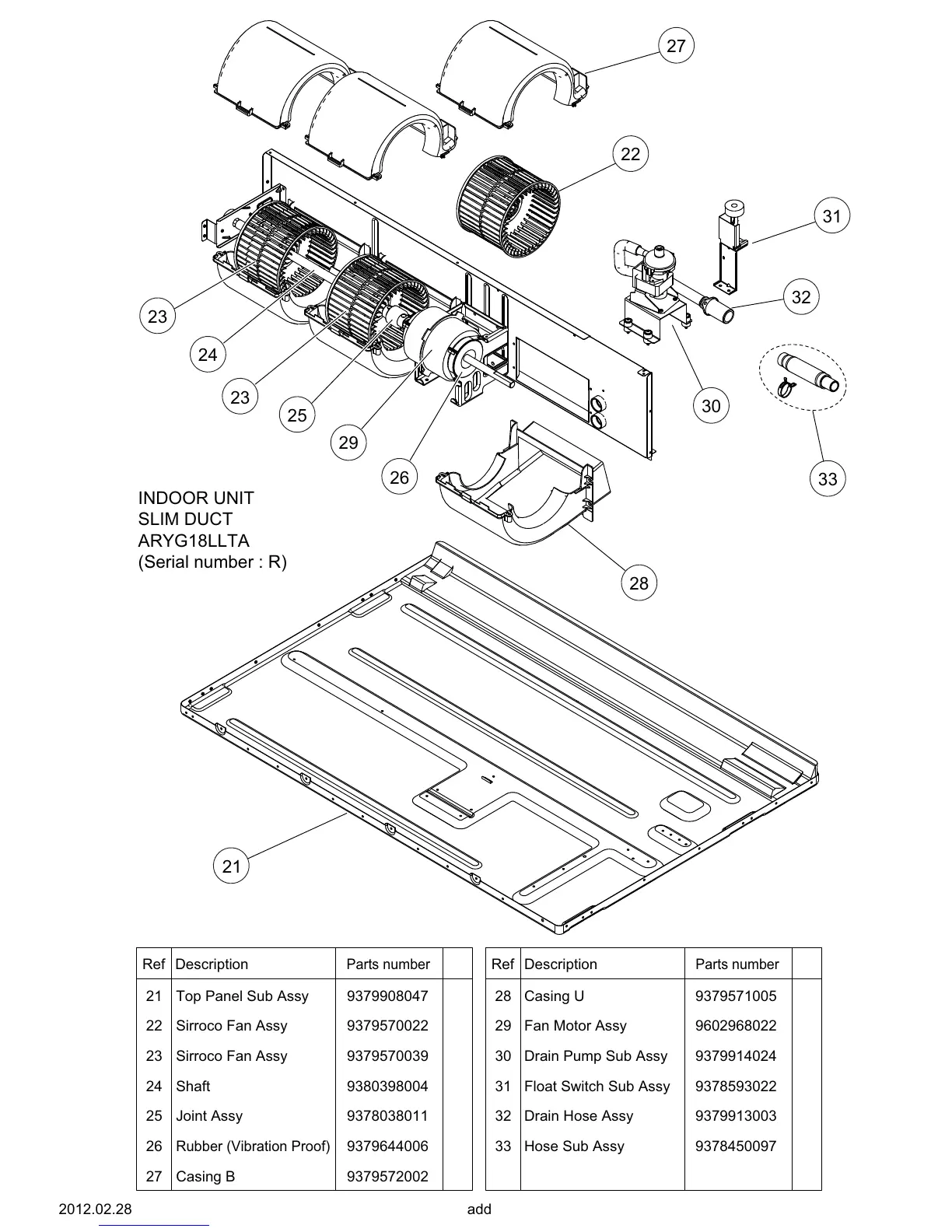

Top Panel Sub Assy21
Sirroco Fan Assy22
9379908047
9379570022
Sirroco Fan Assy23 9379570039
Shaft24 9380398004
Joint Assy25 9378038011
Parts number
DescriptionRef
26
Rubber (Vibration Proof)
28
Casing B
Casing U
29 Fan Motor Assy
9379644006
9379572002
9379571005
9602968022
27
30 Drain Pump Sub Assy
31
32
Float Switch Sub Assy
9379914024
9378593022
Drain Hose Assy 9379913003
33 Hose Sub Assy 9378450097
Parts number
DescriptionRef
add2012.02.28
INDOOR UNIT
SLIM DUCT
ARYG18LLTA
(Serial number : R)
21
22
28
30
31
32
33
27
23
23
25
29
24
