add2012.02.28
44
46
43
45
41
42
42
41
44
--
Power Supply PCB
Controller PCB (09)
42 Controller PCB (12)
Parts numberDescriptionRef
Terminal 3P
Pipe Thermistor
9707398267
9707393996
42 Controller PCB (07) 9707393781
9306489045
9900498108
43 Reactor Assy 9707457018
9707393897
42 Controller PCB (14) 9707393903
42 Controller PCB (18) 9707393910
-- Room Thermistor 9900653002
46 Wired Remote Control 9318593013
45
Terminal 3P (Wired Remote)
9703345012

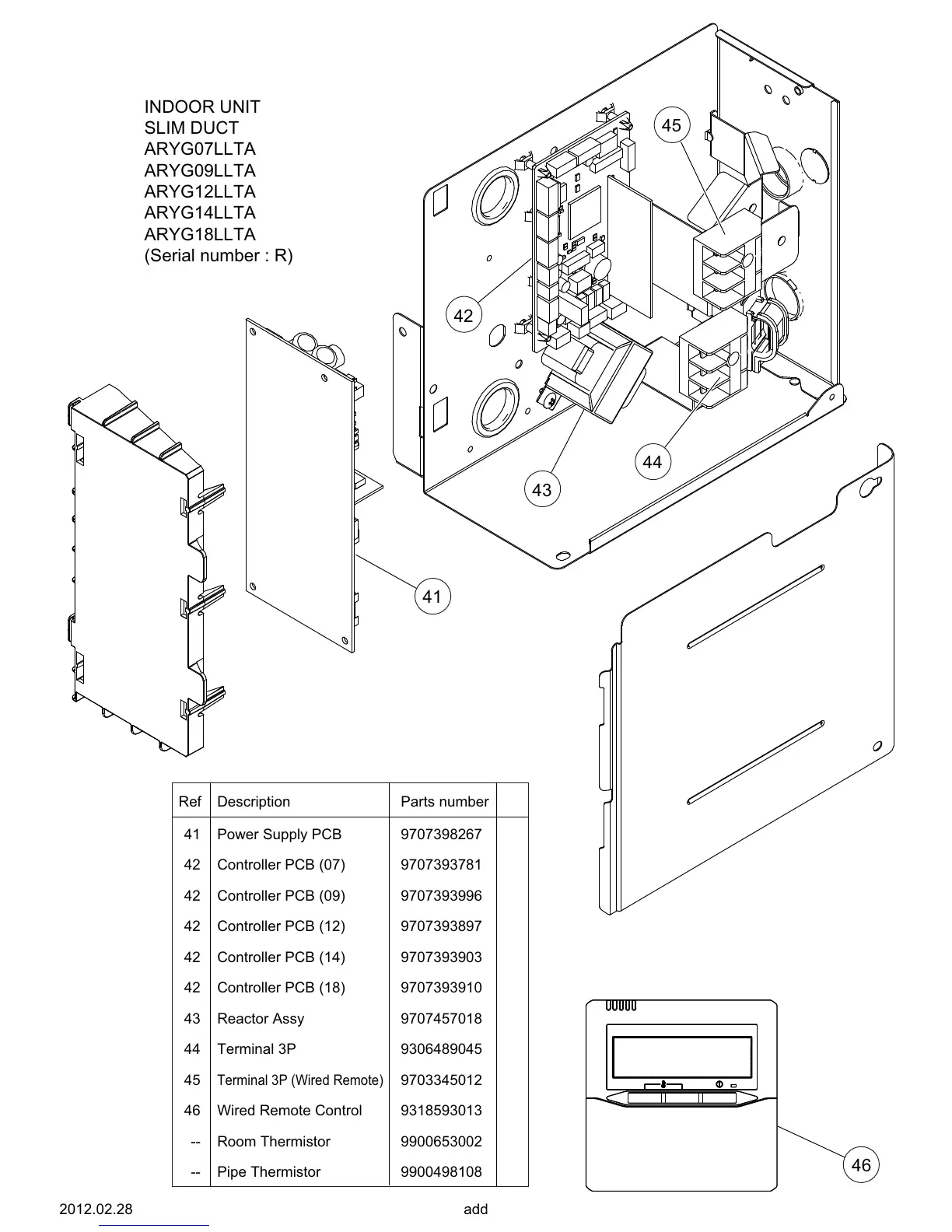

INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA
ARYG18LLTA
(Serial number : R)
