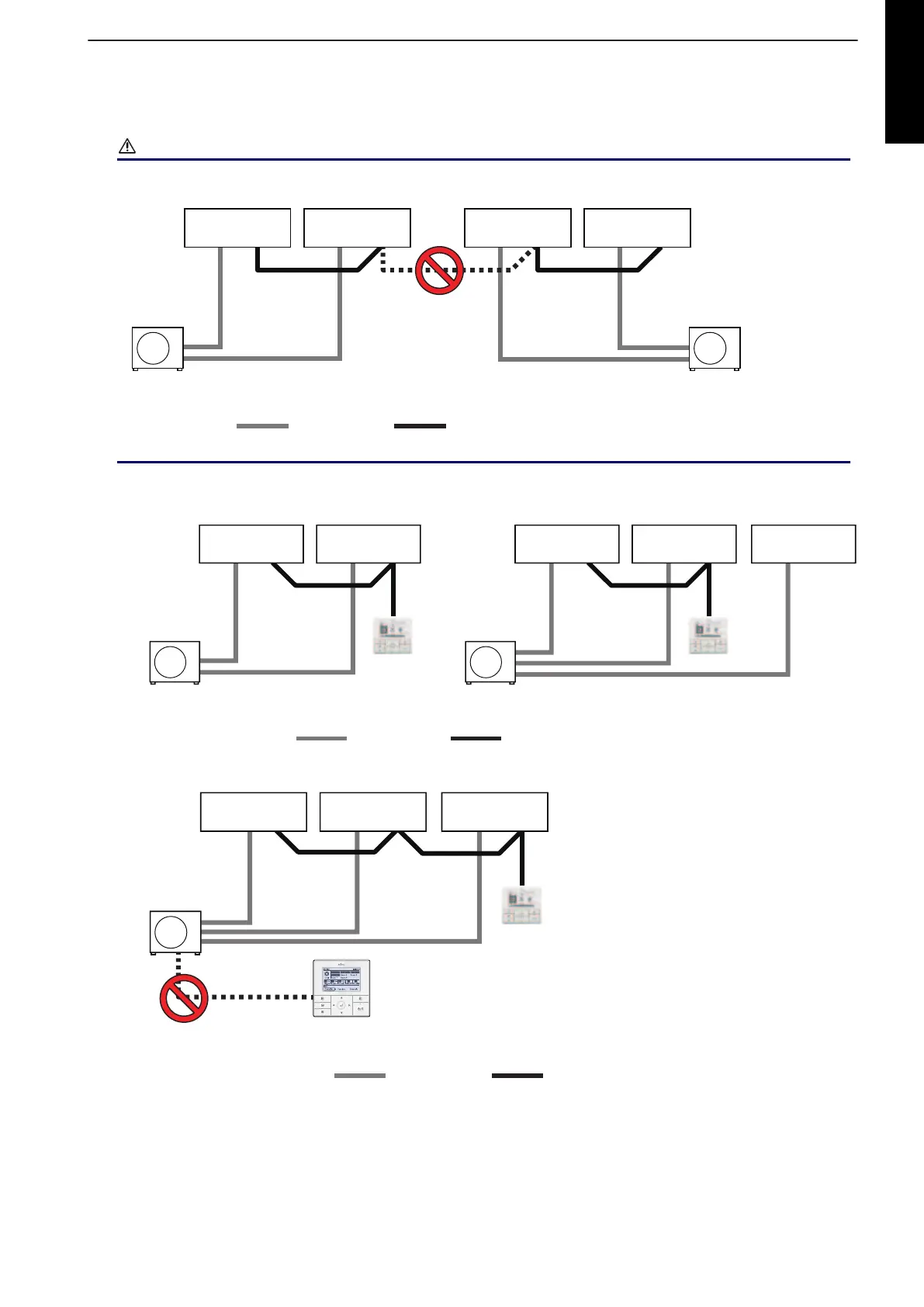

12-1. Precautions on creating a group connection
Take precautions on items described in this section when creating a group connection in the multi
split models.
CAUTION
Group connection to other refrigerant system between the multi systems with same communica-
tion system as shown below is strictly prohibited.
Outdoor unit
: Piping
: Wired remote controller wiring
Indoor unit Indoor unit
Outdoor unit
Indoor unit Indoor unit
• Group connection is allowed only in the same refrigerant system. (Maximum number of con-
nectable indoor units is depend on the outdoor unit.).
Outdoor unit
: Piping
: Wired remote controller wiring
Indoor unit Indoor unit
Outdoor unit
Indoor unit Indoor unitIndoor unit
*Exterior of each device shown above might be different from the actual one.
• Central remote controller (UTY-DMMYM) cannot be connected simultaneously.
: Piping : Wired remote controller wiring
Outdoor unit
Indoor unit Indoor unitIndoor unit
*Exterior of each device shown above might be different from the actual one.
- 155 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
