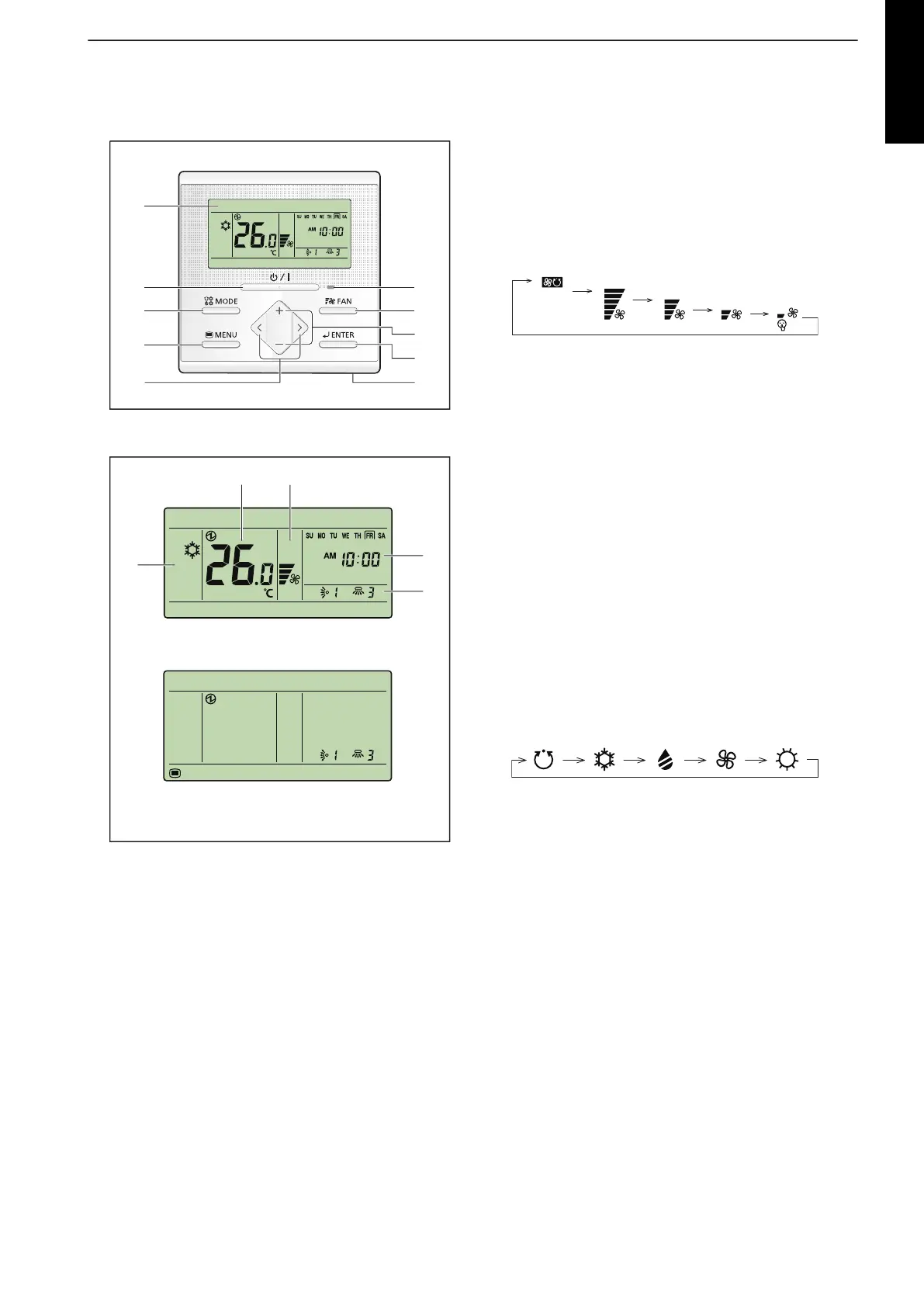

13-6. Wired remote controller (UTY-RLRY)
¢
Overview
a
b
c
d
ef
i
j
h
g
Display panel
o
m
n
lk
Monitor mode screen
(Example: Airflow direction setting)
Setting screen
a LED lamp (Operation indicator)
Lights while the indoor unit is operating. Blinks when an
error occurred.
b FAN button
Each time the button is pressed, fan speed switches as
follows:
Auto
High
Med Low Quiet
c +, - buttons (Set temperature buttons)
Used to adjust temperature in Monitor mode screen.
+ button: Raise
- button: Lower
In Setting screen, used to select the setting items.
NOTE: When the operation mode is set to FAN, the tem-
perature cannot be adjusted.
d ENTER button
Used to enter setting items and settings.
e Room temperature sensor (inside)
Senses ambient temperature of unit.
f <, > buttons
Used to select setting items during the setting item se-
lection screen is displayed.
g MENU button
Used to display the setting item selection screen.
h MODE button
Each time the button is pressed, operation mode switch-
es as follows:
Auto
Cool
Dry Fan Heat
i On/Off button
Starts or stops the operation.
NOTE: On/Off button cannot be operated at screens oth-
er than the Monitor mode screen.
j Display panel
Displays Monitor mode screen or Setting screen.
Monitor mode screen is home screen of this controller,
and the basic operation is performed in this screen.
In Setting screen, several settings are adjustable.
k Temperature indicator
l Fan speed indicator
m Clock indicator
n Airflow direction indicator
o Operation mode indicator
NOTE:
For individual icons in Setting screen
and related functions, refer to the oper-
ation manual.
- 175 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
