13. Remote controller

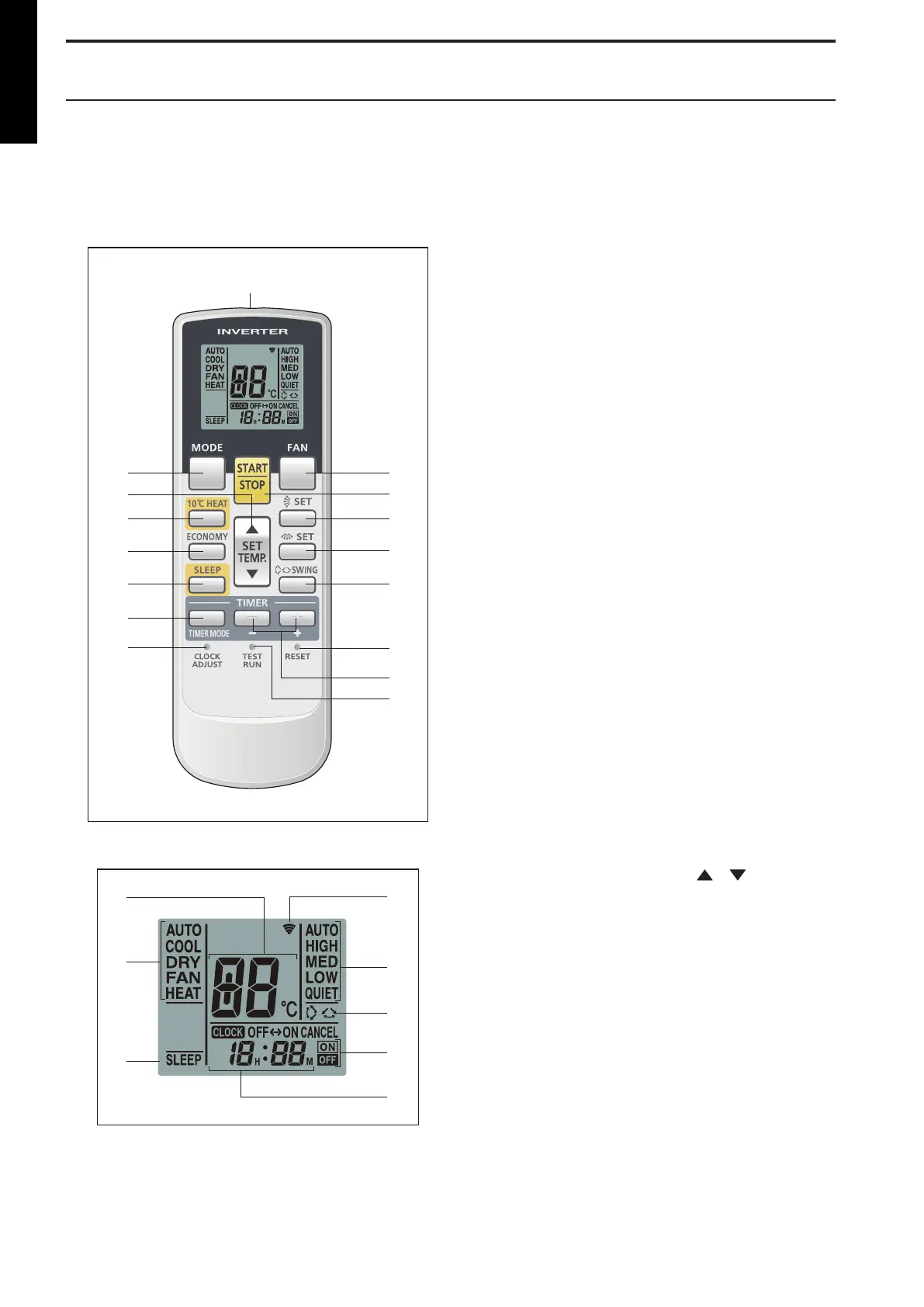

13-1. Wireless remote controller (AR-RAH2E/AR-RAH1E)
¢
Overview
 AR-RAH2E
o
j
k
l
n
m
i
b
d
e
a
f
g
h
c
p
Display panel
q
r
s
t
u
v
w
x
NOTE:
Functions may differ by type of the in-
door unit. For details, refer to the oper-
ation manual.
a
FAN button
Selects the fan speed (AUTO, HIGH, MED, LOW, and
QUIET).
b START/STOP button
Starts and stops operation.
c SET button (vertical)
Adjusts the vertical airflow direction.
d SET button (horizontal)
Adjusts the horizontal airflow direction.
e SWING button
Sets the automatic swing operation and selects swing
mode (Up/down, Left/right, Up/down/left/right, and Stop
swing).
f RESET button
Used when replacing batteries.
g Timer set (- / +) button
Sets the current time and on-off time.
h TEST RUN button
Only used for the initial test in the unit installation.
i CLOCK ADJUST button
Used for adjusting the clock.
j TIMER MODE button
Selects the timer mode (off timer, on timer, program
timer, and timer reset).
k SLEEP button
Pressed to select sleep timer.
l ECONOMY button
m 10 °C HEAT button
n
SET TEMP. (temperature) (
/ ) button
• Sets desired temperature.
• Sets remote controller custom code.
o MODE button
• Switches operation mode (AUTO, COOL, DRY, FAN,
and HEAT).
• Starts/ends the remote controller custom code (max.
4 types) change.
p
Signal transmitter
q Signal transmit indicator
r Fan speed indicator
s Swing indicator
t Timer mode indicator
u Clock indicator
v Sleep indicator
w Operating mode indicator
x Temperature indicator
DESIGN & TECHNICAL MANUAL
- 158 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
