13-5. Wired remote controller (UTY-RNNYM)
¢

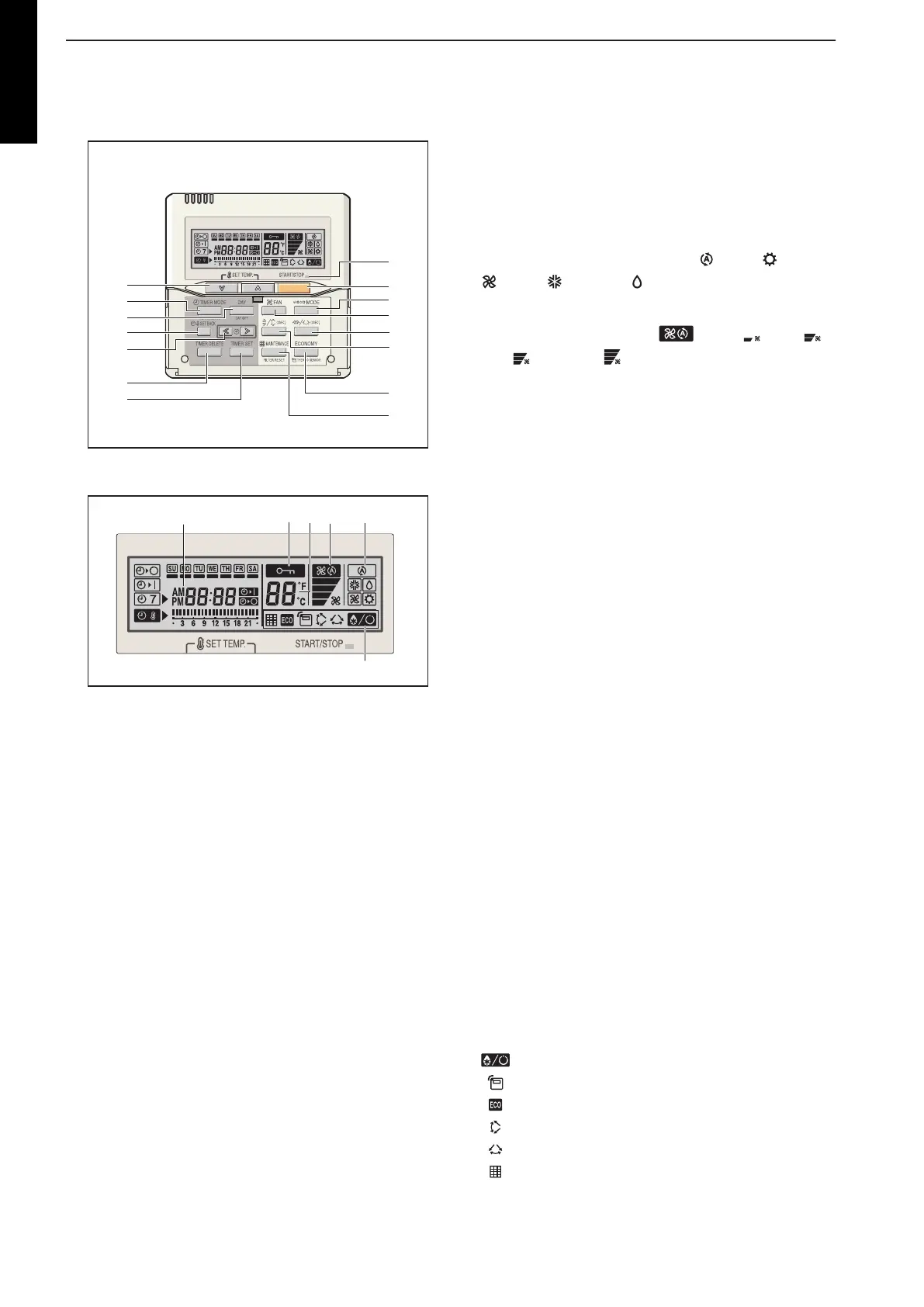

Overview
b
f
g
h
i
j
k
a
c
d
e
l
m
n
o
Display panel
pqrst
u
a START/STOP button
Starts and stops operation.
b SET TEMP. button
Selects the setting temperature.
c MODE button
Selects the operating mode (AUTO , HEAT ,FAN
, COOL , and DRY ).
d FAN button
Selects the fan speed AUTO
,QUIET , LOW ,
MED , and HIGH ).
e ECONOMY (THERMO SENSOR) button
Turns the economy-efficient mode on and off.
f TIMER MODE (CLOCK ADJUST) button
Selects the timer mode (off timer, on timer, and
weekly timer). Sets the current time.
g DAY (DAY OFF) button
Temporarily cancels one day timer.
h SET BACK button
Selects the set back timer.
i
Set time button
Pressed to set time.
j
TIMER DELETE button
Deletes the weekly timer schedule.
k
TIMER SET button
Sets the date, hour, minute, and on-off time.
l
Vertical airflow direction and swing button
Push for 2 seconds to change the swing mode.
m
Horizontal airflow direction and swing but-
ton
Push for 2 seconds to change the swing mode.
n
FILTER RESET button
o
Operation lamp
Lights during operation and when the timer is on.
p
Timer and clock indicator
q Operation mode indicator
r
Fan speed indicator
s
Operation lock indicator
t
Temperature indicator
u
Function indicators
Defrost indicator
Thermo sensor indicator
Economy indicator
Vertical swing indicator
Horizontal swing indicator
Filter indicator
NOTE:
Functions may differ by type of the in-
door unit. For details, refer to the oper-
ation manual.
DESIGN & TECHNICAL MANUAL
- 170 -
MULTI TYPE 5, 6 ROOMS TYPE

Fujitsu AOYG36LBLA5 Specifications

General

Type	Air conditioner outdoor unit
Multi-split	No
Product color	White
Compressor type	Rotary
Gas hose diameter	9.52 mm
Hose length (max)	80 m
Hose length (min)	25 m
Inverter technology	-
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	12500 W
Heating capacity in watts (max)	14000 W
Heating capacity in watts (min)	3500 W
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Hourly energy consumption (cooling)	- kWh
Indoor unit noise level (high speed)	- dB
Outdoor unit depth	370 mm
Outdoor unit width	970 mm
Outdoor unit height	998 mm
Outdoor unit weight	94000 g
Outdoor units quantity	1
Outdoor unit noise level	67 dB
Outdoor unit sound power level	68 dB
